Infrared Thermometer UNI-T UT305A
id: 861491
1 kg Warranty: 24 months
An infrared pyrometer for temperature measurements within the range from -50°C to 1050°C. ºC/ºF selection. Read more
This infrared pyrometer measures temperature within the range from -50 to 1050 ºC in ºC or ºF.
This infrared ihermometer is NOT a medical device. However, you can use it to measure a person’s body temperature. To do this, you need to select empirically and set the emission factor in the settings (it's in the range 0.6-0.9 for the human body).
You should always maintain safety and security while working:
- make sure the laser beam don't get into your eyes;
- don't let children play with the device;
- don't use the device near surfaces that could reflect the laser beam into anyone's eyes.
Features
- Temperature range -50 to 1050 ºC
- Data logging (up to 100)
- Electricity cut off memory
- Laser switch
- Search option
- Low and high alarm
- Data Hold function
- ˚C/˚F selection
- T-C thermocouple measurement
- USB data transfer
- Max/Min/Dif/Avg measurements
- Tripod mount
- Sleep mode
- Low battery indication
Comparative Specifications
Technical Specifications
Display | LCD with backlight, 38 × 33 mm | |
Temperature | Range | -50 ºC ~ 1050 ºC |
Accuracy | ±1.8 ºC or ±1.8% | |
Resolution | 0.1 (when < 10 ºC - 0.2) | |
Repeatability | ±0.5 ºC or ± 0.5% | |
Distance to spot size | 50:1 | |
Response time | 250 mS (95% of reading) | |
Spectral response | 8 µm to 14 µm | |
Laser power | Class 2(II) operation Output <1mW wavelength 630-670 nm |
|
Emissivity | Digitally adjustable from 0.10 to 1.00 by 0.01 | |
Power | USB, power adaptor or 9V battery (NEDA 1604, 6F22 or 006P) | |
Dimensions (H × W × D), mm | 200 × 130 × 53 | |
Weight, g | 320 |

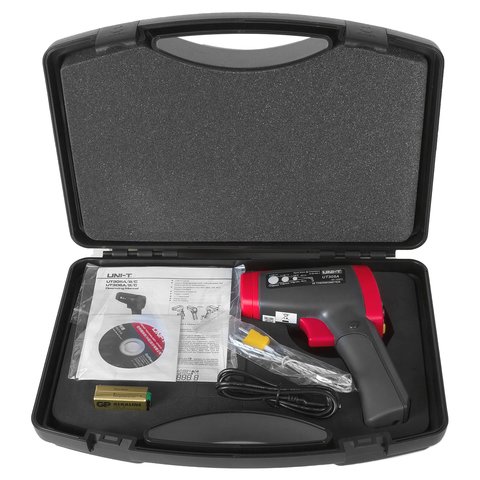

Package Contents
- UT305A infrared pyrometer
- Software
- Power adaptor
- USB cable
- Manual
Note! Batteries are not included in the package.
