Optical Time Domain Reflectometer EXFO FTB-1v2-720C-SM1
id: 872451
Made in Canada
10 kg 110, 220 V
Availability in stock:
HK
Warranty: 12 months Complex Device, Tailored Solutions: We're Here to Help!
This device is highly sophisticated. If needed, we're ready to assist you in finding the best model for your specific needs.
A powerful compact unit designed to carry out dedicated optical, Ethernet and multi service tests simply and efficiently. Read more
Inform of price reduction
Suggest your price
Note! This item is shipped within 10 working days.
Your gift (list of the available gifts depends on the amount of your order)

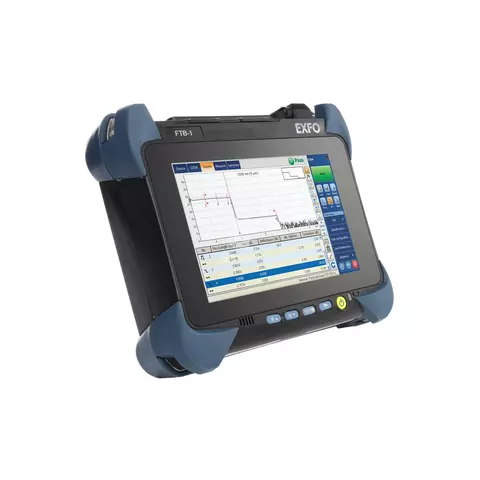

EXFO FTB-1v2-720C-SM1optical time domain reflectometer allows for easy assessment of the overall attenuation of the fiber, troubleshooting of access/FTTx, as well as for local network testing.
Ordering Information
If you want to buy additional options for your OTDR, please choose them from the list below and contact our sales manager.
Features
- Equipped with tools and third-party applications needed to optimize testing.
- Compact and lightweight device suitable for field work.
- Automated asset management – data goes through the cloud and into a dynamic database.
- High dynamic range and short dead zone.
- Large internal memory.
- Replaceable lithium battery.
- Transflective color display for clear viewing of results under bright sunlight.
Technical Specifications
Wavelength | 1310 ±20/1550 ±20 nm |
Dynamic range | 36/34 dB |
Loss threshold | 0.01 dB |
Loss resolution | 0.01 dB |
Typical real-time refresh | 4 Hz |
Data storage | 64 GB internal memory (flash) |

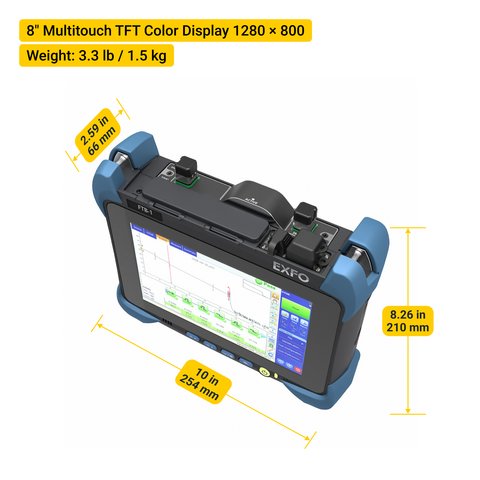

LCD type | 8-inch Multitouch TFT color display (1280 × 800) |
Interface | USB, RJ45, Micro SD, 3.5 mm jack |
Battery | built-in rechargeable Li-ion battery |
Power | AC/DC adapter input 100-240 V |
Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
Storage temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
Size | 254 × 210 × 66 mm |
Weight | 1.5 kg (3.3 lb) |
Data Sheet
  Download EXFO FTB-1v2-720C-SM1 Optical Time Domain Reflectometer Platform Data Sheet.
Package Contents
- Optical Time Domain Reflectometer Unit EXFO FTB-1v2-720C-SM1 – 1 pc.
- Battery – 1 pc.
- Power adapter/charger – 1 pc.
- CD with Software – 1 pc.
- User Manual – 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
