Pocket Digital Multimeter Accta AT-180
id: 891577
New
0.4 kg
Availability in stock:
HK
Warranty: 12 months A reliable True RMS multimeter used to measure AC/DC voltage and current, capacitance, frequency, resistance, duty cycle, and temperature, and to perform diode and continuity tests. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Frequently bought together

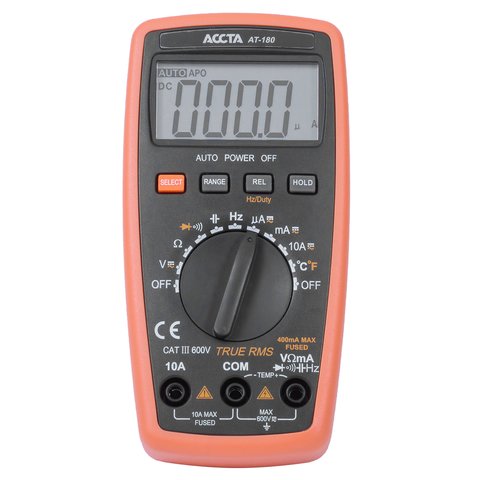

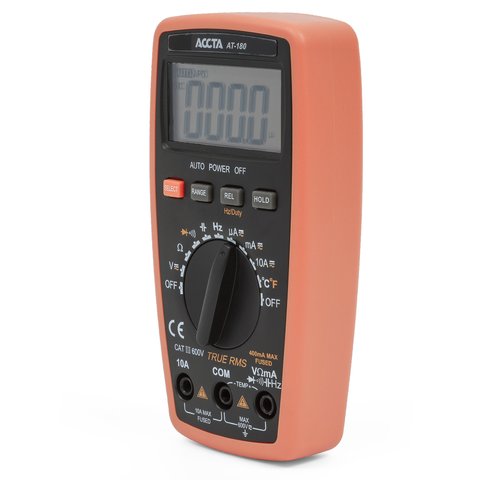

Accta AT-180 is an auto ranging pocket digital multimeter. It is used to measure AC/DC voltage, AC/DC current, capacitance, frequency, resistance, duty cycle, and temperature, and also to perform diode and continuity tests. The multimeter is powered from two AAA batteries (1.5 V).
Features
- Functions:
- DC voltage;
- AC voltage;
- DC current;
- AC current;
- resistance;
- capacitance;
- frequency;
- True RMS;
- temperature;
- duty cycle;
- continuity testing;
- diode testing.
- Auto ranging.
- 3 3/4 (3999) max. display (indicating the polarity).
- Relative measurements mode
- Over Limit indication (OL).
- 200 mA fuse protection.
- Data Hold function.
- Continuity buzzer.
- Low battery indication.
- Powered from two AAA batteries.

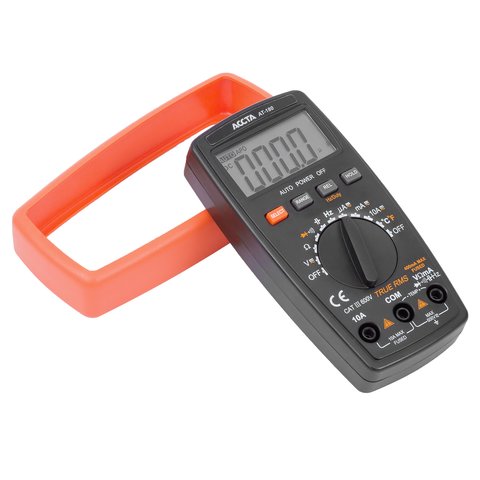

- Shockproof protection.
- Auto power off.
- This is the perfect portable tool for domestic use.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 400 mV / 4 V / 40 V / 400 V | ±(0,5% + 4) |
600 V | ±(1,0% + 4) | |
AC Voltage | 4 V / 40 V | ±(0,8% + 6) |
400 V / 600 V | ±(1,0% + 6) | |
DC Current | 400 µA / 4 mA / 40 mA / 400 mA | ±(1,0% + 10) |
10 A | ±(1,2% + 10) | |
AC Current | 400 µA / 4 mA / 40 mA / 400 mA | ±(1,5% + 10) |
10 A | ±(2,5% + 15) | |
Resistance | 400 Ω | ±(0,8% + 5) |
4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ | ±(0,8% + 4) | |
40 MΩ | ±(1,2% + 10) | |
Capacitance | 4 nF | ±(5,0% + 90) |
40 nF / 400 nF / 4 µF / 40 µF | ±(3,5% + 8) | |
100 µF | ±(5,0% + 8) | |
Frequency | 1 Hz / 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 30 MHz | ±(0,5% + 10) |
Temperature | -20°C ~ 400°C | ±(1,0% + 5) |
400°C ~ 1000°C | ±(1,5% + 15) | |
General Specifications | ||
Power | 1.5 V AAA battery × 2 pcs. | |
Working temperature | 0..40°C with humidity not more than 80% | |
Input impedance | 10 MΩ | |
Sampling rate | 3 times/s | |
AC Frequency response | 50-200 Hz | |
Display | 3999 digit LCD, 57 × 33 mm | |
Dimensions | 145 × 74 × 36 mm | |
Weight | 185 g (with batteries) |
Video
You'll find even more video reviews in the Video tab. Go and check it out!

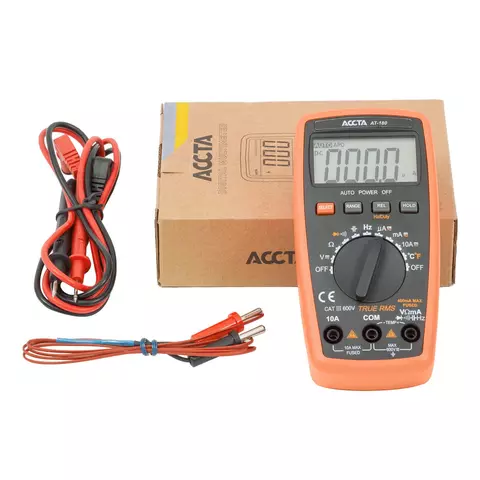

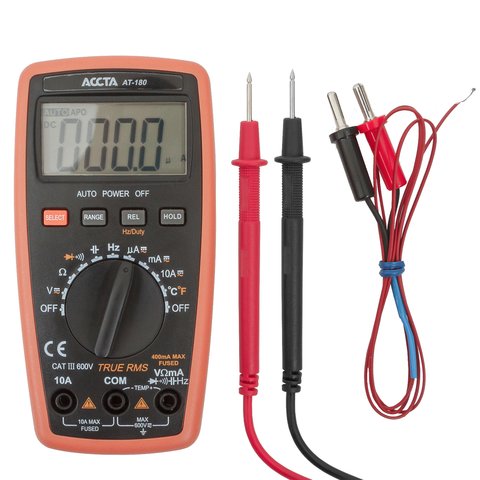

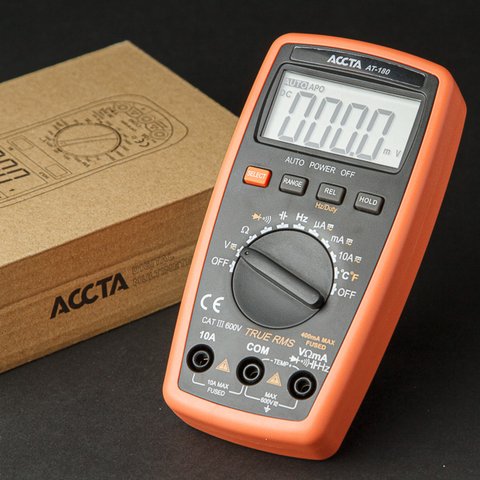

Package Contents
- Pocket Digital Multimeter Accta AT-180 — 1 pc.
- Test leads — 1 set.
- Temperature probe — 1 pc.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
