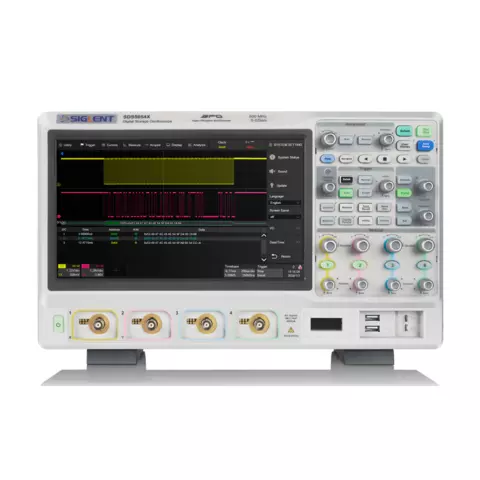

Super Phosphor Oscilloscope SIGLENT SDS5054X
id: 885455
14 kg Warranty: 36 months
Desktop 4-channel phosphor digital oscilloscope with 500 MHz bandwidth, 5 GSa/s real-time sample rate, 250 Mpts memory, 10.1" display and up to 110,000 waveforms/sec capture rate. Read more
Buy wholesale and save
Inform of price reduction
SIGLENT SDS5054X is a 4-channel Super Phosphor Oscilloscope with a bandwidth of 500 MHz, a sample rate of 5 GSa/s, and a standard record length of 250 Mpts. The tool is equipped with a digital voltmeter.
Features
- New generation of SPO (Super Phosphor Oscilloscope) technology.
- 4 analog + 16 digital channels.
- 256-level intensity grading and color temperature display modes.
- Trigger types: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Video (HDTV supported).
- Supports serial bus trigger and decoding; protocols: I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B.
- Low background noise, supports 0.5 mV/div to 10 V/div voltage scales.
- Segmented acquisition (sequence) mode, dividing the maximum record length into multiple segments (up to 100,000). Its replay and analysis.
- Search and navigation.
- 39 automatic measurement function.
- Supports statistics with histogram, gating measurement, math measurement, history measurement and ref measurement.
- Math measurement: FFT, addition, subtraction, multiplication, division, integration, differential, square root.
- High-Speed hardware-based Average, Eres (Enhanced Resolution).
- Mask Test function.
- Large 10,1 inch TTFT-LCD display with 1024 × 600 resolution.
- Touch screen supports multi-touch gestures.
- Supports external mouse and keyboard.
- 10 types of one-button shortcuts.
- Interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11, Telnet, Socket, Web), Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA output.
- Built-in web server supports remote control by the LAN port using a web browser.
- Supports SCPI remote control commands.
Technical Specifications
Model | SDS5032X | SDS5034X | SDS5052X | SDS5054X | SDS5102X | |||
---|---|---|---|---|---|---|---|---|
Channels | 2 | 4 | 2 | 4 | 2 | |||
Bandwidth | 350 MHz | 350 MHz | 500 MHz | 500 MHz | 1 GHz | |||
Sample Rate (Max.) | 5 GSa/s | |||||||
Memory Depth | 250 Mpts | |||||||
Math Functions | +, -, *, /, FFT, d/dt ,∫dt,√ | |||||||
FFT Windows | Rectangular, Blackman, Hanning, Hamming, Flattop | |||||||
Display | 10,1 inch TFT LCD (1024 × 600) | |||||||
Interface | USB Host, USB Device (USBTMC), LAN (VXI-11, Telnet, Socket, Web), Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA output | |||||||
Dimensions | 370 × 231 × 144 mm | |||||||
Weight | 3.9 kg |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
User Manual
Download SIGLENT SDS5054X User Manual.
Package Contents
- Super Phosphor Oscilloscope SIGLENT SDS5054X — 1 pc.
- USB cable — 1 pc.
- Passive probe — 4 pcs.
- Power cord — 1 pc.
- Certificate of calibration — 1 pc.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
