Tablet Digital Oscilloscope Micsig TO102
id: 848023
4 kg 110, 220 V Warranty: 12 months
2-channel handheld digital oscilloscope – tBook Series. 100 MHz bandwidth, 1 GSa/s real time sampling rate, 18M/9M memory depth. Read more
Inform of price reduction

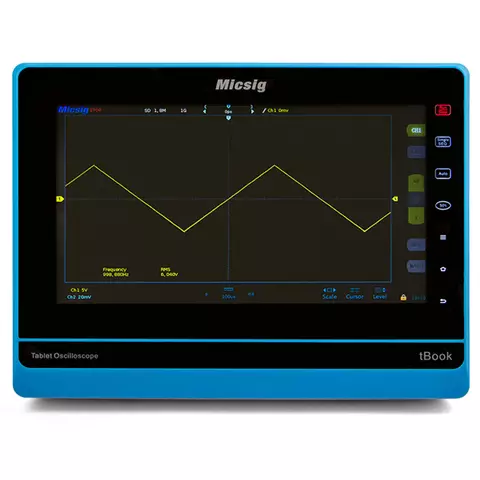

Micsig TO102 tBook Series Digital Oscilloscope is a dual channel handheld digital oscilloscope with 100 MHz bandwidth, 1 GSa/s real time sampling rate, 18M/9M memory depth. Operation control is conducted with the help of 10.1 inch TFT capacitive touch screen.
Features
- Control mode: touch screen
- 18M/9M memory depth
- 1024*600 screen resolution
- 31 auto measurements
- Cursor measurements
- Android OS
- Interfaces: USB, Wi-Fi
Video
Technical Specifications
Channels | 2 |
Bandwidth | 100 MHz |
Rise Time | ≤3.5 ns |
Real time sampling rate | single channel: 1 GSa/s dual channels: 500 MSa/s |
Memory depth | single channel: 18 Mpts dual channels: 9 Mpts |
Vertical system | |
---|---|
Input coupling | DC, AC, GND |
Input impedance | 1 MΩ ±1% ≈ 15 pF ±3 pF |
Vertical scale | 2 mV/div ~ 5 V/div |
Vertical resolution | 8 bits |
Max. voltage input | 300V CAT Ⅲ |
Horizontal system | |
Time base range | 200 ps/div ~ 1000 s/div |
Timebase accuracy | 20 ppm |
Display mode | normal, average, pk-pk, envelope |
Trigger system | |
Trigger types | edge, pulse, short pulse, logic, serial data (UART, LIN, CAN, SPI, I2C, 1553B, 429) |
Coupling modes | DC, AC, High-frequency suppression, Low-frequency suppression, Noise suppression |
Trigger modes | auto, normal, single |
Trigger source | CH1, CH2 |
Measurement | |
Automatic measurements | 31 types |
Cursor types | horizontal cursor, vertical cursor, cross cursor |
Storage | |
Storage types | tablet oscilloscope, USB device, PC |
File formats | CSV, waveform, jpg |
Refernce waveforms | ≤4 |
Waveform settings | 4 sets |
Math functions | |
Operator | + , - , × , / |
FFT window settings | Rectangular, Hamming, Blackman-Harris, Hanning |
Display Features | |
Screen | 10.1 inch TFT LCD touch screen |
Resolution | 1024 × 600 |
3D waveform display | supported |
Grid of waveform display zone | 18 div × 10 div |
Backlight | 500 (250) |
Language | Simplified Chinese, English |
I/O Port | |
Mini USB 2.0 | connection to PC |
USB 2.0 | connection to flash disk, mouse, keyboard, wireless mouse |
WiFi | supports 802.11 b/g/n, up to 150 Mbps |
Power Supply | |
Power adapter | input: 100-240 V AC, 50-60 Hz, 2 A; output: 12 V DC, 5 A |
Battery (option) | capacity: 7.4 V / 9000 mAh, work time: 4~8 hours |
Environment | |
Operation temperature | -20℃ ~ +50℃ |
Operation humidity | < 95% RH |
Operating altitude | <3000 m |
Storage altitude | <12000 m |
Mechanical Parameters | |
Dimensions | 275 × 210 × 60 mm |
Weight | Oscilloscope: 1770 g (no battery), accessories (standard): 420 g, battery (option): 276 g |
Package Contents
- Micsig TO102 Tablet Digital Oscilloscope — 1 pc.
- Power Adapter — 1 pc.
- Oscilloscope Probes — 1 set
- User Manual — 1 pc.
