Thermal Imaging Camera FLIR E4
id: 854440
4 kg 110, 220 V Warranty: 12 months
Widescreen modern thermal imaging camera with a removable battery and multiple imaging modes. IR resolution: 80 × 60. Read more
Buy wholesale and save
Inform of price reduction

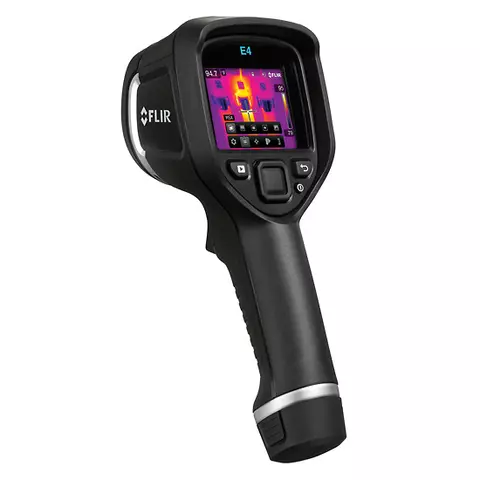

FLIR E4 is a widescreen modern thermal imaging camera with a removable battery and multiple imaging modes.
Features
- MSX technology automatically extracts the critical details from the visible image and embosses them on to the thermal image.
- Big bright display 3".
- Encased in rubber - 2 meter drop test.
- Thermal sensitivity < 0.15 °C.
- Thermal detector has 4,800 pixels and 320 × 240 MSX resolution.
- PC and Mac compatible.
- Removable Li-Ion battery.
- Quick re-charge via USB style charger.
- Larger 45° FOV.
Technical Specifications
Imaging and Optical Data | |
---|---|
IR Resolution | 80 × 60 |
MSX Resolution | 320 × 240 |
Thermal Sensitivity | <0.15 °C |
Field of View | 45° × 34° |
Detector | uncooled microbolometer |
Screen | 3.0 in. 320 × 240 color LCD |
Frame Rate | 9 Hz |
Analysis | |
Image Modes | IR image, visual image, MSX, thumbnail gallery |
Multi Spectral Dynamic Imaging (MSX) | IR image with enhanced detail presentation |
Temperature Range | –4 °F to 482 °F (–20 °C to 250 °C) |
Accuracy | ±2% or 2°C |
Measurement Modes | Spot (center) mode |
Setup | |
Color Palettes | Iron, Rainbow, and Gray |
Set-up Commands | Local adaptation of units, language, date and time formats |
Image Storage | |
Storage Capacity | Internal memory, 500 sets of images |
Storage Mode | Simultaneous storage of images in IR, visual and MSX |
File Formats | Standard JPEG, 14-bit measurement data included |
General | |
Weight | 0.575 kg |
Additional Information
Download FLIR E4 Data Sheet.
Package Contents
- FLIR E4 Thermal Imaging Camera — 1 pc.
- 2 GB SD card — 1 pc.
- Li-Ion rechargeable battery — 1 pc.
- 90-260 V AC adapter charger with EU, UK, US and Australian plugs — 1 pc.
- FLIR Tools software — 1 pc.
- USB cable — 1 pc.
- Hard case — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
