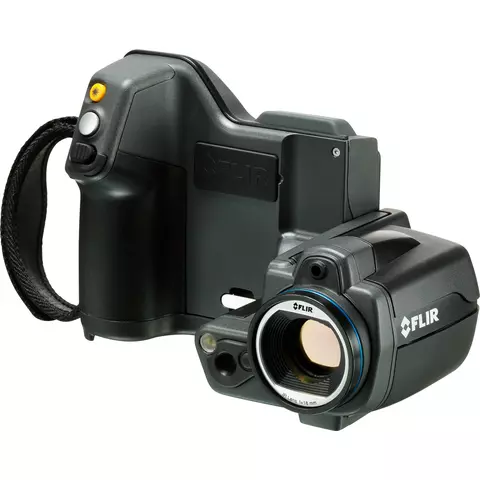

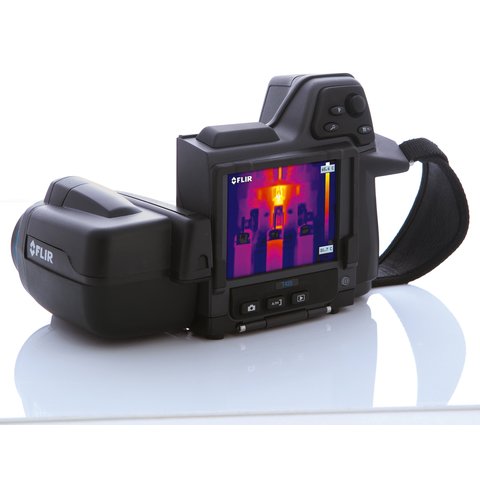

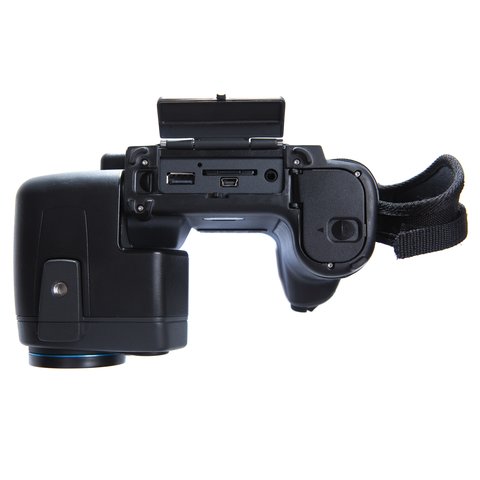

Thermal Imaging Camera FLIR T420
id: 838467
5 kg 110, 220 V Warranty: 12 months
320×240 infrared camera with rotating optical block. Wi-Fi connectivity, voice comments, remote control. Temperature range: -20°C to 650°C. Read more
Inform of price reduction
FLIR T420 Thermal Imaging Camera is a 320×240 infrared camera characterized by exceptional performance and multiple functions. A rotating optical block delivers ergonomic comfort, plus a new faster frame rate and faster auto focus provide greater performance. Includes a host of onscreen measurement features plus built-in Wi-Fi connectivity to iOS/Android devices for remote control and video streaming.
Features
- 320 × 240 infrared detector.
- Rotating optical block for ergonomic comfort.
- Accurate temperature measurements (± 2°C or ± 2%)
- Wi-Fi connectivity. Possibility to send images and data to smart phones and tablets (i.e. iPhone®, iPad®, iPod touch® , or Android™) to share images and critical information quickly using FLIR Tools Mobile app.
- Possibility to add voice comments via Bluetooth headset and text notes from the touchscreen keypad.
- Possibility to create PDF document directly from the camera for reporting.
- Touch-screen 3.5" color LCD.
- Manual/Automatic camera focus with laser pointer.
- Remote control option.
- Interchangeable lens.
- SD card slot for image storage (more than 1,000 Radiometric JPEG images).
Technical Specifications
Temperature range | -4°F to 1202°F / -20°C to 650°C |
Zoom | 4X Continuous |
Frame Rate | 60Hz |
Field of view | 25° × 19° |
Minimum focus distance | 1.31 ft / 0.4 m |
Focus | Manual/Automatic |
Thermal sensitivity | <0.045°C @ 30°C |
Detector | 320 × 240 pixels |
Spectral range | 7.5 to 13μm |
Display | touch-screen 3.5" color LCD |
Image modes | Thermal/Visual/Fusion/P-i-P and Thumbnail Gallery |
Image Storage | 1000 radiometric JPEG images (SD card memory) |
Image annotation | Voice (60 sec); text comments, Sketch, image markers on IR |
Periodic image storage | 7 seconds to 24 hours (IR) and 14 seconds to 24 hours (IR and visual) |
Lens | 25° (optional 6°, 15°, 45°, 90°, Close up 100, 50μm lenses available) |
Video Lamp | Bright LED lamp |
Laser Classification/Type | Class 2/Semiconductor AlGalnP Diode Laser: 1 mW / 635 nm (red) |
Interfaces | USB-mini, USB-A, Bluetooth, Wi-Fi, composite video |
Power supply | Li-lon Battery, AC adapter |
Operating time (using battery) | >4 hours, Display shows battery status |
Shock / Vibration | 25G, IEC 60068-2-29 / 2G, IEC 60068-2-6 |
Dimensions | 4.2×7.9×4.9" / 106×201×125 mm |
Weight | 1.94 lbs / 0.88 kg, including battery |
Additional Information
Download FLIR T420 Data Sheet.
FLIR T420 Package Contents
- FLIR T420 Thermal Imaging Camera unit (1 pc.)
- SD Memory Card (1 pc.)
- 100-260V AC adaptor/charger (1 pc.)
- Li-Ion rechargeable batteries (2 pcs.)
- 2-bay battery charger (1 pc.)
- FLIR Tools software (1 pc.)
- USB cable (1 pc.)
- Video cable (1 pc.)
- Sun shield (1 pc.)
- Bluetooth® headset (1 pc.)
- Camera lens cap (1 pc.)
- Neckstrap (1 pc.)
- Hard case (1 pc.)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
