Overview
1 kg Warranty: 24 months
Able to track ethernet/telephone/power cables without opening their insulation. Read more
Inform of price reduction
Description

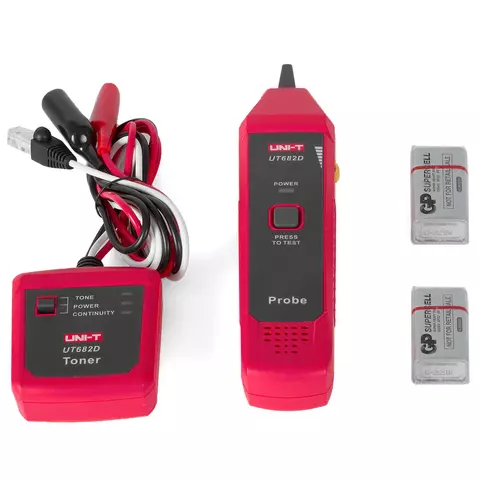

Wire Tracker UNI-T UT682D consists of a transmitter and a receiver. It is able to track ethernet/telephone/power cables without opening their insulation. UNI-T UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables. It is used to test continuity and check polarity on telephone lines.
Features
- Wire tracking: telephone line, twisted pair, electric wire.
Technical Specifications
| Telephone lines tracking distance | ≥3000 m |
| Polarity indication for telelphone lines |
DCV function, range: ±(5V~52V) |
| Telephone lines and LAN cables distinction | Jacks distinction |
| Transmitter output voltage | 8V DC with a new battery |
| Transmitter power supply | 9V battery |
| Receiver power supply | 9V battery |
| Max receiver standby current | ~10mA |
| Max receiver operating current | <40mA (AC, RMS) |
| Transmitter input voltage protection | 60V DC |
| Size | Transmitter: 74mm x 68mm x 28mm Receiver: 208mm x 47mm x 33mm |
| Weight | Transmitter: 150 g Receiver: 130 g |
Package Contents
- Transmitter — 1 pc.
- Receiver — 1 pc.
- 9-volt Battery — 2 pcs.
- Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
