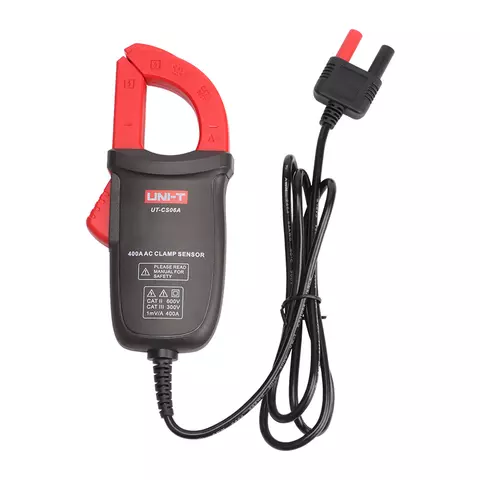

AC Current Clamp Sensor UNI-T UT-CS06A
id: 912217
AC Current Clamp Sensor UNI-T UT-CS06A
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
0.5 kg Warranty: 12 months
Entry-level current sensor for measuring AC currents from 1 to 400 A. Compatible with most UNI-T multimeters. Read more
Inform of price reduction
Description

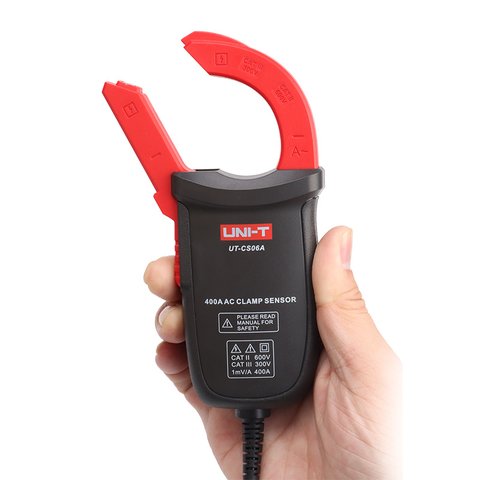

UNI-T UT-CS06A is a current entry-level sensor for AC current measurement in a multimeter or data logger. It is compatible with most UNI-T multimeters and features a small and convenient-to-use design, which makes it an ideal tool to extend the current ranges of the multimeters.
Features
- Compact design, easy operation.
- 400A AC current measurement.
- Frequency: 50 Hz to 400 Hz.
- Output ratio: 1 mV/A.
- Clamp jaw size: 28 mm.
- Suitable for most UNI-T multimeters.
- Drop protection: 1 m.
- Overvoltage category: CAT Ⅲ 300V/CATII 600V.
Technical Specifications
| Dimensions | 158 mm × 65 mm × 33 mm |
| ACA Current | 1-400 A |
| Accuracy | ±2.5%±0.5 A@50-60 Hz ±2.8%±0.5 A@60-400 Hz |
| Jaw opening | 28 mm |
| Output ratio | 1 mV/A |
| Wire length | 1.1 m |
| True RMS | depends on the multimeter |
| Response time | depends on the multimeter |
| Frequency | 50 Hz~400 Hz |
| Waveform display | adaptable oscilloscope |
| Accuracy | depends on the multimeter |
| Power supply | no need battery |
| Drop test | 1 m |
| Overvoltage category | CAT III 300V, CAT II 600V |
| Certificates | CE, UKCA |
Package Contents
- AC Current Clamp Sensor UNI-T UT-CS06A — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
