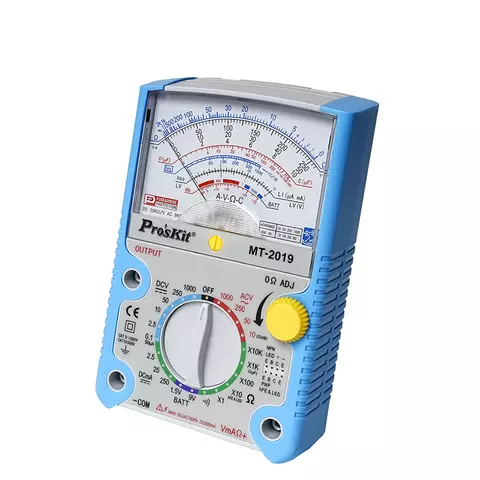

Analog Multimeter Pro'sKit MT-2019
id: 906467
0.6 kg Warranty: 12 months
Precise, safe, and easy-to-use analog multimeter used to measure AC/DC voltage, DC current, resistance and capacitance. Read more
Inform of price reduction
Pro'sKit MT-2019 is a precise, safe, and easy-to-use battery-operated analog multimeter. The device is used to measure DC/AC voltage, DC current, resistance, and capacitance. Besides, the multimeter may be used for testing batteries, transistors, diodes, and LEDs.
Features
- High precision multimeter with overload protection (0.5 A/250 V fuse protection).
- Measures DC/AC voltage, DC current, resistance and capacitance.
- May be used to test batteries, check transistors, diodes and LEDs.
- Supplied with 1000V/10A test lead set.
- Well-conductive and anti-oxidation gilded PCB.
- Separate PCB and battery design for more safety.
- Non-slip rubber protection cover provides drop resistance.
- Equipped with foldable and hook-up stand.
Technical Specifications
DC voltage measurement | 0.1 V/2.5 V/10 V/50 V/250 V, ±3.0% FSD 1000 V, ±4.0% FSD |
AC voltage measurement | 10 V/50 V/250 V, ±4.0% FSD 1000 V, ±5.0% FSD |
DC current measurement | 0.05 mA / 2.5 mA / 25 mA / 250 mA ±3.0%FSD |
Resistance measurement | ×1(0.2~2 kΩ)/×10(2~20 kΩ)/ ×100(20~200 kΩ) ×1 k(200~2 MΩ)/ ×10 kΩ(2 k~20 MΩ) ±4.0% ARC of scale length |
Capacitance measurement | 2000 µF |
Battery check | 1.5 V / 9 V |
Transistor hFE test | hFE: 0-1000 |
Diode & LED test | Yes |
Continuity with beeper | Yes |
Power source | 1.5 V AAA × 2 pcs. and 9 V (NEDA1604) × 1 pc. (not included) |
Dimensions | 160 mm × 105 mm × 40 mm |
Weight | 390 g (with batteries) |
Video
User Manual
Download Pro'sKit MT-2019 user manual.
Package Contents
- Analog Multimeter Pro'sKit MT-2019 — 1 pc.
- Test Leads — 1 set
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
