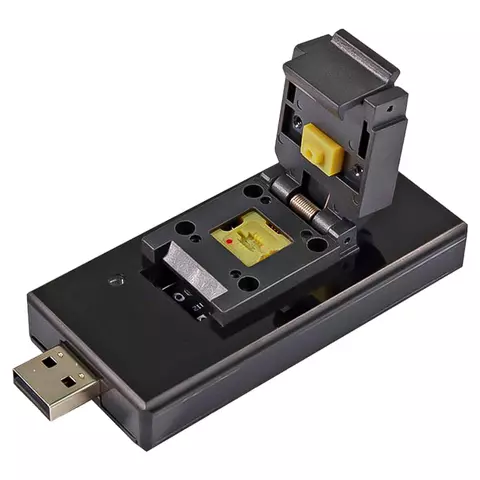

BY-T200 T2 Data Assistant Adapter

BY-T200 Data Assistant is used to read / backup Macbook T2 chip ROM data. It is suitable for MacBook models produced in 2018-2020.

Features

• Read / Backup MacBook T2 chip ROM data
• Modify the serial number

Repair MacBook Pro 2018 with BY-T200 T2 Data Assistant Adapter

Supported Models

• MacBook models (2018-2020) with T2 chips

MacBook Pro 13.3"/15.4"/16"

• A1989 (820-00850)
• A1990 (820-01041)
• A2159 (820-01598)
• A2141 (820-01700)
• A2289 (820-01987)
• A2251 (820-01949)

MacBook Air 13.3"

• A1932 (820-01521)
• A2179 (820-01958)

How to work with BY-T200 data assistant

1. Remove the SoC ROM chip with hot air gun at 430℃
2. Attach the chip to the seat of BY-T200, Pin 1 of the chip must align with the red dot on the tool.
3. Connect BY-T200 with the computer, install the driver and run the software.
4. Click "Read ID" to backup T2 ROM data.
5. Click "Open file" and select the saved T2 ROM file.
6. Click "Auto Program" to finish data writing.
7. Unplug the BY-T200 adapter and remove the chip.
8. Solder the chip back to the motherboard.

How to install BY-T200 software

Package Content

• BY-T200 data assistant adapter - 1 pc.
