Siglent F603ME is a self-calibration kit for Siglent SVA1000X spectrum analyzers. Read more
Inform of price reduction
Description

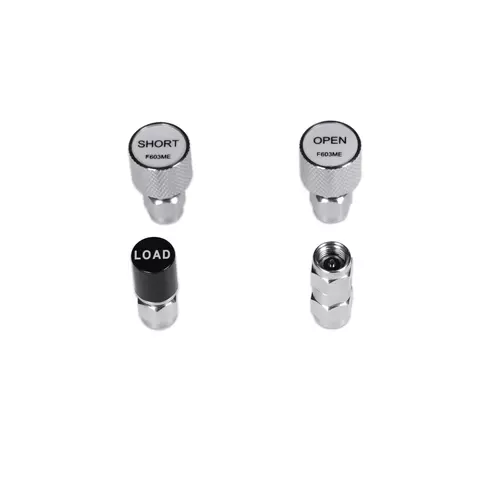

Siglent F603ME is a 4.5 GHz SMA-Male type mechanical calibration kit for the self-calibration of Siglent SVA1000X series spectrum and vector network analyzers, containing four precision 50 Ω, phase-matched, type-SMA standards.
Features
| Type | Connector | Specification |
| Open | N (Male) | DC – 3.5 GHz, phase deviation ≤ ±0.8° |
| Short | N (Male) | DC – 3.5 GHz, phase deviation ≤ ±0.8° |
| Load | N (Male) | DC – 3.5 GHz, SWR ≤ 1.02 |
| Through | N (Female) – N (Female) | DC – 18 GHz, SWR ≤1.20 |
Technical Specifications
| Impendence | 50 Ω |
| Power | 1 W |
| Torque | 1.35 Nm |
| Spanner | 19 mm |
| Temperature | -15°C ~ + 35°C |
| Interface standard | IEC 60169-16 |
Package Contents
- Siglent F603ME calbration kit – 1 pc
