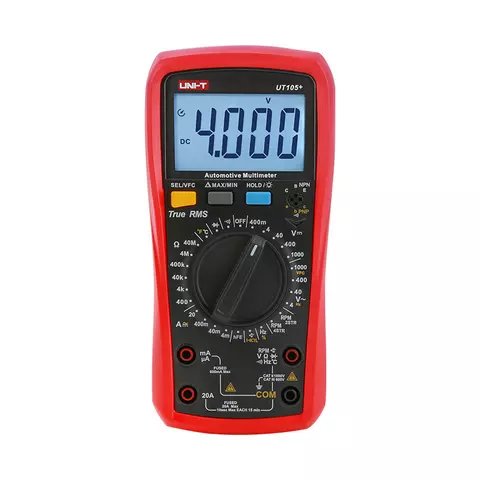

UNI-T UT105+ is a True RMS digital automotive multimeter rated CAT II 1000V/ CAT III 600V. The device is equipped with a 4000-digit display and is used to identify the main faults of the car.
1000V AC/DC voltage and 10A AC/DC current (20A for 10s max) measurement range is suitable for most of the vehicle and electrical facilities maintenance. Up to 1000V VFC mode enables users to take accurate measurements on variable-frequency motor drives, water pumps, HVAC systems.
Besides, this multimeter is equipped with the functions of data hold, MAX/MIN/REL measurement modes, low battery indication, overvoltage and current alarm, and display backlight.
Features
- Measurement functions:
- True RMS;
- AC/DC voltage up to 1000 V;
- AC/DC current up to 10 A (20 A for 10 s max.);
- VFC voltage measurement up to 1000 V;
- dwell angle (1-8CYL);
- RPM: 2STR/4STR;
- temperature;
- resistance;
- frequency;
- duty cycle.
- Data hold function.
- MAX/MIN modes.
- Relative measurements mode (REL).
- Diode and transistor testing.
- Backlight.
- Auto power off.
- Low battery indication.
- Manual range.
- Continuity testing.
- High voltage alarm.
- High voltage overload alarm.
- Large current alarm.
- Safety: CAT II 1000V, CAT III 600V.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 400 mV / 4 V / 40 V / 400 V / 1000 V | ±(0.5%+3) |
| AC Voltage | 4 V / 40 V / 400 V / 1000 V | ±(0.8%+3) |
| AC Current | 4 mA / 40 mA / 400 mA / 10 A (20 A for 10 s max.) | ±(1.0%+8) |
| DC Current | 4 mA / 40 mA / 400 mA / 10 A (20 A for 10 s max.) | ±(0.8%+8) |
| Resistance | 400 Ω / 4 KΩ / 40 KΩ / 400 KΩ / 4 MΩ / 40 MΩ | ±(0.8%+3) |
| Frequency | 10 Hz ~ 10 MHz | ±(0.1%+5) |
| Temperature | -40°C~1000°C / -40°F~1832°F | ±(1.0%+3) / ±(1.5%+5) |
| VFC | 1000 V | ±(2.0%+10) |
| RPM | 2STR / 4STR | ±(3.0%+5) / ±(3.0%+3) |
| Dwell Angle | 1 cylinder: 0~356.4° 2 cylinders: 0~178.2° 3 cylinders: 0~118.8° 4 cylinders: 0~89.1° 5 cylinders: 0~71.3° 6 cylinders: 0~59.4° 8 cylinders: 0~44.5° |
±(3.0%+5) |
| General Specifications | ||
| Low Battery Indication | approximately <2.4 V | |
| Display Count | 4000 | |
| Auto Power Off | approximately 15 minutes | |
| Power | 2 × AAA 1.5V batteries | |
| Dimensions | 183 mm × 88 mm × 56 mm | |
| Weight | 348 g (with batteries) | |
User Manual
Download UNI-T UT105+ user manual.
Package Contents
- Digital Automotive Multimeter UNI-T UT105+ — 1 pc.
- Test Leads — 1 pair
- K-type Temperature Probe — 1 pc.
- Carrying Bag — 1 pc.
- User Manual — 1 pc.
