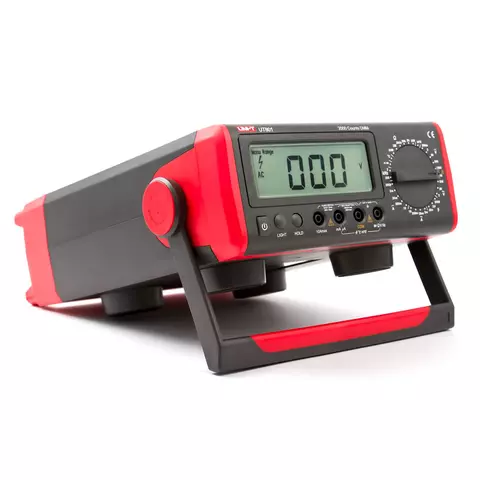

Digital Bench Multimeter UNI-T UT801
id: 828540
5.5 kg Warranty: 24 months
A digital bench multimeter for AC/DC current to 10 A and voltage to 1000 V, resistance, capacitance, frequency, temperature measurements and diode, continuity tests. Read more
Buy wholesale and save
Inform of price reduction
Frequently bought together
This UNI-T UT801 digital bench multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, temperature and tests diodes and continuity.
Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.
User Manuals
Download UNI-T UT801 Digital bench multimeter user manual
Features
- Functions:
- AC/DC current and voltage
- resistance
- capacitance
- frequency
- temperature (ºC)
- continuity test (with buzzer)
- diode test
- Manual ranging
- Data Hold function
- Max/Min measurements
- Relative display mode
- Sleep mode
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
Display | LCD with backlight, 108 × 35 mm | |
DC voltage | Range | 200 mV / 2 V / 20 V / 200 V / 1000 V |
Accuracy | ±(0.5%+5) | |
AC voltage | Range | 2 V / 20 V / 200 V / 1000 V |
Accuracy | ±(0.8%+3) | |
DC current | Range | 200 µA / 2 mA / 20 mA / 200 mA / 10 A |
Accuracy | ±(0.8%+2) | |
AC current | Range | 2 mA / 20 mA / 200 mA / 10 A |
Accuracy | ±(1%+3) | |
Resistance | Range | 200 Ω / 42 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ |
Accuracy | ±(0.8%+3) | |
Capacitance | Range | 20 nF / 2 µF / 200 µF |
Accuracy | ±(4%+3) | |
Frequency | Range | 2 kHz / 200 kHz |
Accuracy | ±(1.5%+5) | |
Temperature, ºC | Range | -40~1000 |
Accuracy | ±(1.2%+3) | |
Power | 6 × 1.5 V battery (R14) AC 200 V ~240 V 50 Hz |
|
Dimensions (H × W × D), mm | 300 × 245 × 105 | |
Weight, kg | 1.5 |
Package Contents
- Digital multimeter UNI-T UT801
- Test lead
- Point contact temperature probe
- Multi-purpose socket
- Power cord
- User manual
Optional Accessories
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
