Overview
0.3 kg Warranty: 24 months
The tool measures AC current, AC/DC voltage, frequency, resistance, and capacitance, and is used for diode and continuity testing. Read more
Inform of price reduction
Description

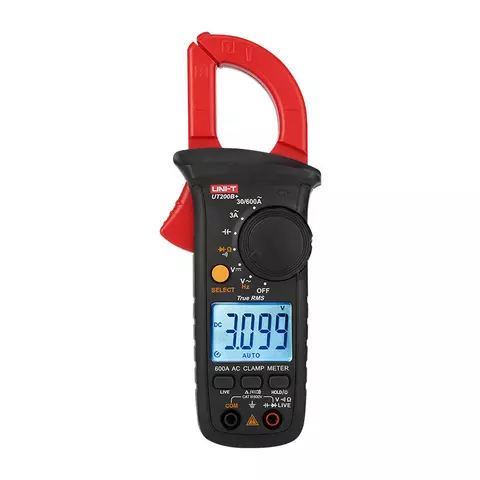

UNI-T UT200B+ is a True RMS digital clamp meter designed for daily repair work and the maintenance of household appliances. This device measures AC current, AC/DC voltage, frequency, resistance, and capacitance, as well as conducts diode testing and continuity testing. In addition, LIVE testing and audio/visual alarms make it an excellent choice for home users or DIY enthusiasts.
Features
- True RMS.
- AC/DC 600V voltage measurement.
- AC 600A current measurement.
- Continuity, resistance, capacitance, diode, and high voltage frequency measurement.
- LIVE function and flashlight.
- 3099-count display.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC Current | 3.000 A | ±(4%+10) |
| 30.00 A | ±(4%+5) | |
| 600.0 A | ±(4%+5) | |
| AC Voltage | 3.000 V~600 V | ±(1.2%＋5) |
| Frequency | 10 H～10 kHz | ±(1.0%+5) |
| DC Voltage | 3.000 V~300.0 V | ±(1.0%+5) |
| 300.0 V~600 V | ±(1.0%+3) | |
| Resistance | 300.0 Ω~300.0 kΩ | ±(1.0%+5) |
| 300.0 kΩ~3.000 MΩ | ±(2.0%+5) | |
| Capacitance | 30.00 nF～300.0 nF | ±(4%+10) |
| 3.000 μF～300.0 μF | ±(4%+5) | |
| 1.000 mF | ±(5%+10) | |
| General Specifications | ||
| Jaw size | 28 mm | |
| Display count | 3099 | |
| Diode/Continuity | √ | |
| Auto range | √ | |
| High voltage warning | √ | |
| Hold/Backlight | √ | |
| Flashlight | √ | |
| Overvoltage category | CAT III 600V | |
Package Contents
- Digital Clamp Meter UNI-T UT200B+ — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
