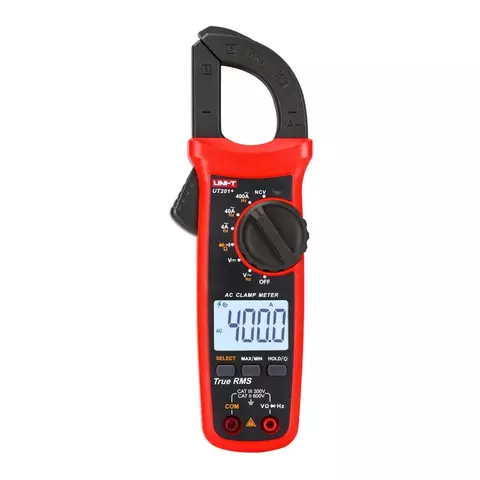

Digital Clamp Meter UNI-T UT201+
id: 897071
Digital Clamp Meter UNI-T UT201+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 18.44
Add to cart
Overview
0.8 kg
Availability in stock:
HK
Warranty: 24 months True RMS clamp meter which measures AC and DC voltage, AC current, resistance, continuity, and also may be used for diodes checking. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Frequently bought together
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock:
HK
ID: 834649 0.061 kg
Description
UNI-T UT201+ is a True RMS clamp meter which measures AC and DC voltage, AC current, resistance, continuity, and also may be used for diodes checking.
Features
- Functions:
- AC current;
- AC/DC voltage;
- resistance;
- continuity test;
- diode test.
- True RMS measurement.
- Audio visual NCV detection.
- Large LCD.
- Full-featured false detection protection for up to 600 V energy surges; overvoltage and overcurrent alarm functions.
- The power consumption of the meter is about 1.8 mA. The circuit has an automatic power saving function. The consumption in sleep state is <11 μA, which extends the battery life to 400 hours.
- Low battery indication.
- Automatic power of after 15 of no-operation (function can be turned off).
- Data hold function.
- Max/Min mode.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC Current | 4 A | ±(4%+10) |
| 40 A / 400 A | ±(2%+10) | |
| AC Voltage | 4 V | ±(1%+5) |
| 40 V / 400 V / 600 V | ±(0.8%+5) | |
| DC Voltage | 400 mV | ±(0.7%+3) |
| 4 V | ±(0.5%+2) | |
| 40 V / 400 V / 600 V | ±(0.7%+3) | |
| Resistance | 400 Ω | ±(1%+2) |
| 4 kΩ / 40 kΩ / 400 kΩ | ±(0.8%+2) | |
| 4 MΩ / 40 MΩ | ±(2%+5) | |
| General Specifications | ||
| Display | 4099 count LCD | |
| Max. jaw opening | 28 mm in diameter | |
| Drop test | 1 m | |
| Power | 1.5V battery AAA × 2 pcs. | |
| Dimensions | 215 × 63.5 × 36 mm | |
| Weight | 248 g (with batteries) | |
User Manual
Download UNI-T UT201+ user manual.
Package Contents
- Digital Clamp Meter UNI-T UT201+ — 1 pc.
- Test Leads — 1 pair
- Case — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
