Digital Clamp Meter UNI-T UT202F (UT202A+ analogue)
id: 905838
Digital Clamp Meter UNI-T UT202F (UT202A+ analogue)
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
1 kg Warranty: 24 months
UNI-T UT202F can measure AC current, AC/DC voltage, resistance, frequency, and capacitance, as well as perform live wire/continuity/diode testing. Read more
Inform of price reduction
You may also like
New
ID: 891578
Digital Clamp Meter Accta AT-600A
USD 15.12
Add to cart
True RMS digital clamp meter designed to measure AC/DC voltage, AC current, resistance, capacitance, NCV, and to perform diode and continuity testing.
Availability in stock:
HK
ID: 891578 0.6 kg
Frequently bought together
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock:
HK
ID: 834649 0.061 kg
Description

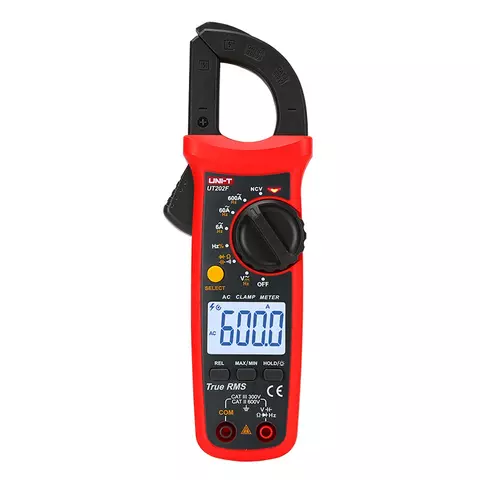

UNI-T UT202F (UT202A+ analogue) is a True RMS digital clamp meter designed to measure AC current, AC/DC voltage, AC voltage frequency, resistance, capacitance, and frequency. It may be used to test live wires, diodes, and continuity.
Features
- True RMS;
- Small current measurement;
- Non-contact voltage test (NCV);
- Capacitance measurement up to 60 mF;
- Live wire testing;
- Continuity testing;
- Diode testing;
- Data hold;
- Low battery indication;
- Larger display and digits as compared to earlier models;
- Display backlight.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC current | 0.06 ~ 600 A | ±(2% + 10) |
| AC current frequency | 50 Hz ~ 100 Hz | ±(1% + 5) |
| DC voltage | 600 V | ±(0.5% + 2) |
| AC voltage | 600 V | ±(0.8% + 5) |
| AC voltage frequency | 10 Hz ~ 10 kHz | ±(1% + 5) |
| Resistance | 60 MΩ | ±(0.8% + 2) |
| Capacitance | 60 mF | ±(4% + 5) |
| Frequency | 10 Hz ~ 10 MHz | ±(1% + 5) |
| General Specifications | ||
| Display | 6,000 count, 37 mm × 25 mm | |
| Jaw opening | 28 mm | |
| Power | 1.5 V battery (R03) × 2 pcs. | |
| Dimensions | 215 mm × 63 mm × 36 mm | |
| Weight | 248 g | |
Package Contents
- Digital clamp meter UNI-T UT202F (UT202A+ analogue) — 1 pc.
- Test leads — 1 pair
- Carrying bag — 1 pc.
- AAA 1.5V battery — 2 pcs.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
