Description

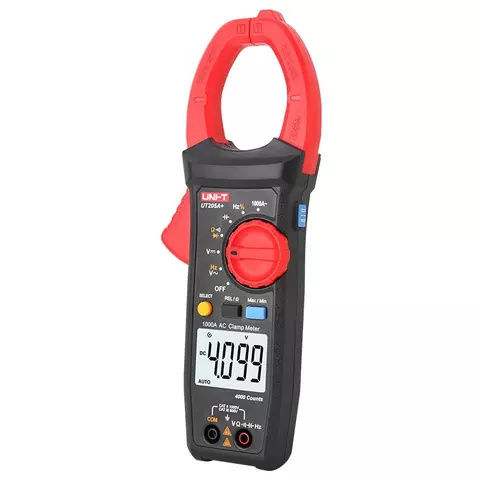

UNI-T UT205A+ is a reliable and portable (235 g with batteries) digital clamp meter designed for electronics and electrical maintenance. The tool measures AC current, AC/DC voltage, frequency, resistance, capacitance, duty cycle, and testing diodes. The meter is equipped with a backlight for working in dimly lit spaces, and also low battery indication and data hold functions. It functions in maximum, minimum, and relative measurement modes.
Features
- Measurement functions: AC current, AC/DC voltage, resistance, frequency, capacitance, duty cycle.
- Continuity, diode testing.
- Data hold.
- Auto range.
- Auto power off.
- Backlight.
- MAX/MIN modes.
- Relative measurement mode (REL).
- Low battery indication.
- Safety standards: CAT II 1000V, CAT III 600V.
Technical Specifications
| AC Current | Range | 40.00 A / 400.0 A / 1000 A |
| Accuracy | ±(1.5%+5) | |
| AC Voltage | Range | 4.000 V / 40.00 V / 400.0 V / 1000 V |
| Accuracy | ±(1.0%＋2) | |
| DC Voltage | Range | 400.0 mV / 4.000 V / 40.00 V / 400.0 V / 1000 V |
| Accuracy | ±(0.7%＋3) | |
| Frequency | Range | 10.00 Hz ～ 10.00 MHz |
| Accuracy | ±(0.1%+4) | |
| Resistance | Range | 400.0 Ω / 4.000 kΩ / 40.00 kΩ / 400.0 kΩ / 4.000 MΩ / 40.00 MΩ |
| Accuracy | ±(0.8%+2) | |
| Capacitance | Range | 40.00 nF / 400.0 nF / 4.000 µF / 40.00 µF / 400.0 µF / 4.000 mF / 40.00 mF |
| Accuracy | ±(4%+5) | |
| Duty cycle | 0.1 % ~ 99.9% | |
| Continuity | 400.0 Ω | |
| Diode testing | 4.000 V | |
| General Specifications | ||
|---|---|---|
| Power | AAA 1.5V × 2 pcs. | |
| Display count | 4099 | |
| Low battery indication | ＜2.5 V approximately | |
| Auto power off | approximately 15 minutes | |
| Jaw opening | 45 mm | |
| Dimensions (H × W × D) | 242 mm × 76.5 mm × 52 mm | |
| Weight | 235 g (with batteries) | |
Video
User Manual
Download UNI-T UT205A+ user manual.
Package Contents
- Digital Clamp Meter UNI-T UT205A+ — 1 pc.
- Test Leads — 1 pair
- Carrying Bag — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
