Overview
1 kg Warranty: 24 months
True RMS clamp meter with NCV function. It measures AC current, AC/DC voltage, resistance, capacitance, duty cycle, continuity, and may be used for diode testing. Read more
Inform of price reduction
You may also like
ID: 891581
Digital Clamp Meter Accta AT-1000E
USD 41.77
Add to cart
True RMS clamp meter designed to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing.
Availability in stock:
HK
ID: 891581 0.9 kg
Frequently bought together
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock:
HK
ID: 834649 0.061 kg
Description

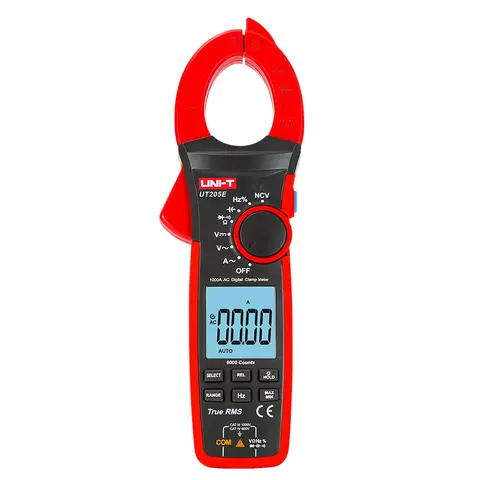

UNI-T UT205E is an auto-ranging True RMS digital clamp meter equipped with a large 6000-count LCD. This clamp meter measures AC current, AC/DC voltage, resistance, capacitance, duty cycle, continuity, and may be used for diode testing and non-contact high voltage detection (NCV).
Features
- Functions:
- AC current;
- AC/DC voltage;
- resistance;
- capacitance;
- duty cycle;
- NCV;
- continuity;
- diode testing.
- Auto ranging.
- Built-in flashlight.
- True RMS.
- ZERO mode.
- Relative mode.
- Data hold.
- Automatic backlight.
- Auto power off.
- Low battery indication.
- MAX/MIN mode.
- Auto Sleep and Wake Up function.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC current | 1000 A | ±(2%+5) |
| AC current frequency response | 50 Hz~60 Hz | |
| AC voltage | 6 V | ±(1.2%+3) |
| 60 V/600 V/1000 V | ±(1%+8) | |
| DC voltage | 600 mV | ±(0.8%+3) |
| 6 V/60 V | ±(0.5%+5) | |
| 600 V | ±(0.5%+5) | |
| 1000 V | ±(0.5%+5) | |
| AC voltage frequency response | 40 Hz~400 Hz | |
| Resistance | 600 Ω | ±(1%+3) |
| 6 kΩ/60 kΩ/600 kΩ | ±(1%+2) | |
| 6 MΩ/60 MΩ | ±(2%+8) | |
| Capacitance | 60 nF | ±(4%+25) |
| 600 nF/6 μF/60 μF/600 μF | ±(4%+5) | |
| 6 mF/60 mF | ±(10%+9) | |
| Low voltage frequency | 10 Hz~1 MHz | ±(0.1%+3) |
| Duty cycle | 10%~90% | ±(2.6%+7) |
| General Specifications | ||
| Display | LCD, 6000-count, 43 mm × 45 mm | |
| Power | 1.5V battery (R03) × 3 pcs. | |
| Jaw opening | 42 mm | |
| Current frequency | 50 Hz~60 Hz | |
| Input impedance | ≥10 MΩ | |
| Dimensions | 272 mm × 81 mm × 43.5 mm | |
| Weight | 465 g | |
User Manual
Download UNI-T UT205E user manual.
Package Contents
- Digital Clamp Meter UNI-T UT205E — 1 pc.
- Test Leads — 1 set
- Cloth Bag — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
