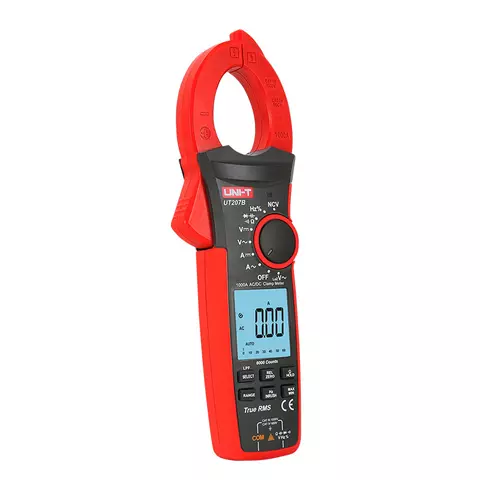

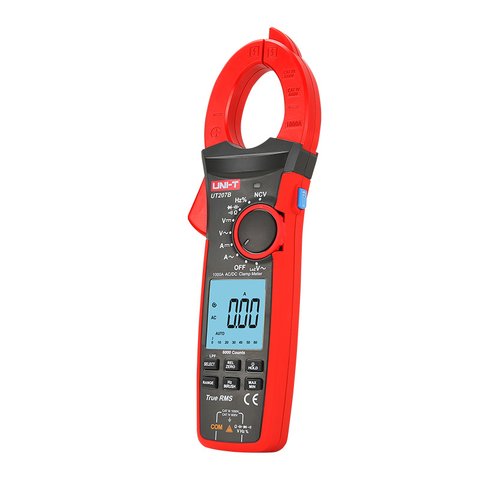

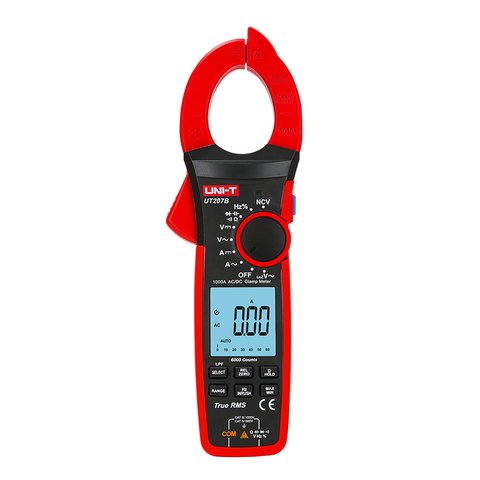

Digital Clamp Meter UNI-T UT207B
id: 898464
1 kg Warranty: 24 months
True RMS clamp measures AC/DC current, AC/DC voltage, resistance, capacitance, duty cycle, continuity, and may be used for diode testing. Read more
Buy wholesale and save
Inform of price reduction
You may also like
Frequently bought together
UNI-T UT207B – is an autoranging True RMS digital clamp meter equipped with a large 6000-count LCD. This clamp meter measures AC/DC current, AC/DC voltage, resistance, capacitance, duty cycle, continuity, and may be used for diode testing.
Features
- Functions:
- AC/DC current;
- AC/DC voltage;
- inrush current;
- resistance;
- LoZ ACV;
- capacitance;
- duty cycle;
- NCV;
- continuity;
- diode testing.
- Auto ranging.
- Built-in flashlight.
- True RMS.
- ZERO mode.
- Relative mode.
- Data hold.
- Automatic backlight.
- Auto power off.
- Low battery indication.
- MAX/MIN mode.
- Auto Sleep and Wake Up function.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
AC current | 1000 A | ±(2%+5) |
DC current | 1000 A | ±(2%+5) |
AC current frequency response | 40 Hz~400 Hz | |
Inrush current | 1000 A | ±(10%+10) |
AC voltage | 6 V | ±(1.2%+3) |
60 V/600 V/1000 V | ±(1%+8) | |
DC voltage | 600 mV | ±(0.8%+3) |
6 V/60 V | ±(0.5%+5) | |
600 V | ±(0.5%+5) | |
1000 V | ±(0.5%+5) | |
Low pas filter (LPF ACV) | 600 V/1000 V | ±(2%+5) |
AC voltage frequency response | 40 Hz~400 Hz | |
LoZ ACV | 600 V/1000 V | ±(2%+5) |
Resistance | 600 Ω | ±(1%+3) |
6 kΩ/60 kΩ/600 kΩ | ±(1%+2) | |
6 MΩ/60 MΩ | ±(2%+8) | |
Capacitance | 60 nF | ±(4%+25) |
600 nF/6 μF/60 μF/60 000 μF | ±(4%+5) | |
6 mF/60 mF | ±(10%+9) | |
Low voltage frequency | 10 Hz~1 MHz | ±(0.1%+3) |
Duty cycle | 10%~90% | ±(2.6%+7) |
General Specifications | ||
Display | LCD, 6000 count, 43 mm × 45 mm | |
Power | 1.5V battery (R03) × 3 pcs. | |
Jaw opening | 42 mm | |
Current frequency | 50 Hz~60 Hz | |
Analog bar | 31 segment | |
Input impedance | ≥10 MΩ | |
Dimensions | 272 mm × 81 mm × 43.5 mm | |
Weight | 420 g |
User Manual
Download UNI-T UT207B user manual.
Package Contents
- Digital Clamp Meter UNI-T UT207B — 1 pc.
- Test Leads — 1 set
- Cloth Bag — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
