Digital Clamp Meter UNI-T UT256A
id: 898469
0.75 kg Warranty: 24 months
The device measures AC current via the fork, and AC/DC voltage, frequency, resistance, and continuity using test leads. Read more
Inform of price reduction
You may also like

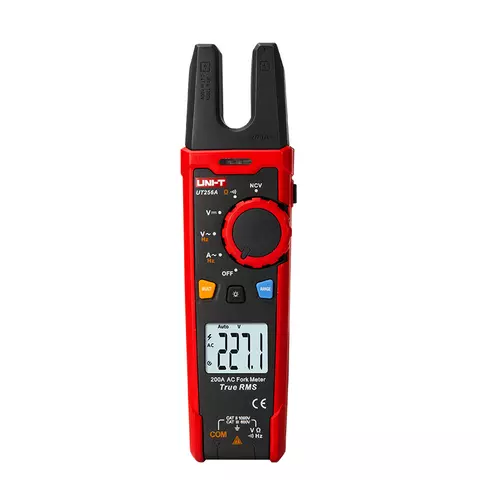

UNI-T UT256A is a stable, safe, and reliable digital clamp meter. It measures AC current via the fork, AC/DC voltage (up to 1000V), resistance, and continuity via test leads, and can detect the presence of AC voltage via the non-contact voltage (NCV) sensor. It has data hold, auto/manual range, large backlit LCD (6000-count), audio/visual alarm, and flashlight functions.
Features
- Basic measurement functions:
- AC/DC voltage;
- AC current;
- resistance;
- frequency;
- continuity.
- Auto/manual range.
- Data Hold function.
- True RMS measuring.
- Non-contact high voltage detection (NCV).
- Auto power off.
- Backlit LCD.
- Built-in flashlight.
- Low battery indication.
- Full-scale overload protection.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
AC current | 200 A | ±(1.8%+2) |
AC voltage | 1000 V | ±(1.2%+3) |
DC voltage | 1000 V | ±(0.8%+3) |
Resistance | 60 MΩ | ±(1%+2) |
Frequency | 10 Hz ~ 10 kHz | ±(0.1%+5) |
Continuity | <10 Ω: audio signal | |
>100 Ω: no audio signal | ||
General Specifications | ||
Display | LCD, 35 mm × 26 mm, 6000 count | |
Power | 2 batteries 1.5V (LR6) | |
Auto power off | about 15 minutes | |
Low battery indication | ≤2,4 V | |
Input impedance | ≥10 MΩ | |
Dimensions | 217 mm × 58.8 mm × 38.5 mm | |
Weight | 251 g |
User Manual
Download UNI-T UT256A user manual.
Package Contents
- Digital Clamp Meter UNI-T UT256A — 1 pc.
- Test Leads— 1 set
- Cloth Bag — 1 pc.
- User Manual — 1 pc.
