Digital Microscope with Monitor Andonstar AD208
id: 902539
2.5 kg Warranty: 6 months
Digital microscope with 8.5″ LCD, 2MP sensor, 5X to 260X magnification, and LED double backlight. Read more
Buy wholesale and save
Inform of price reduction

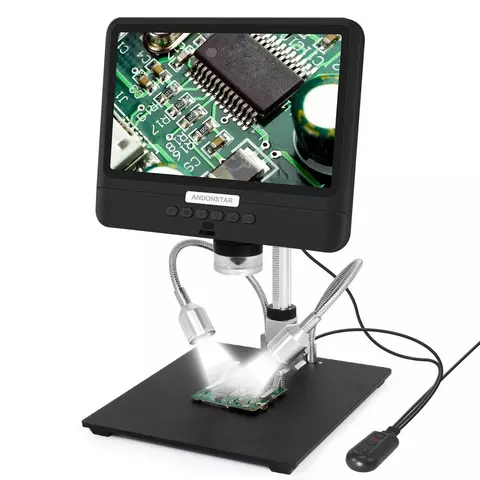

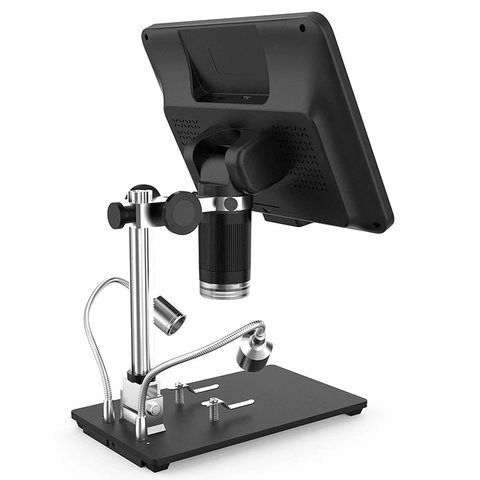

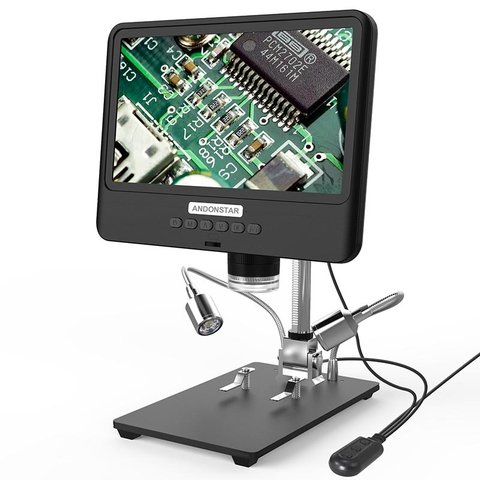

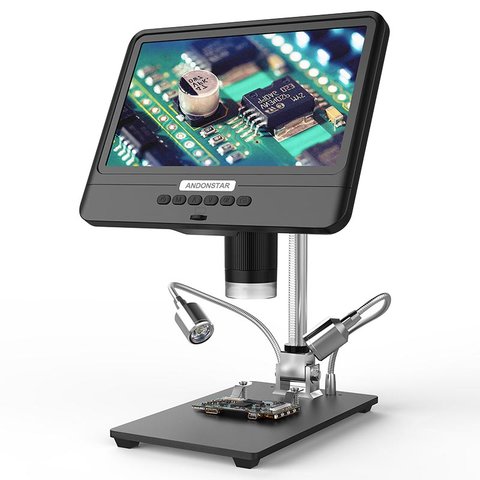

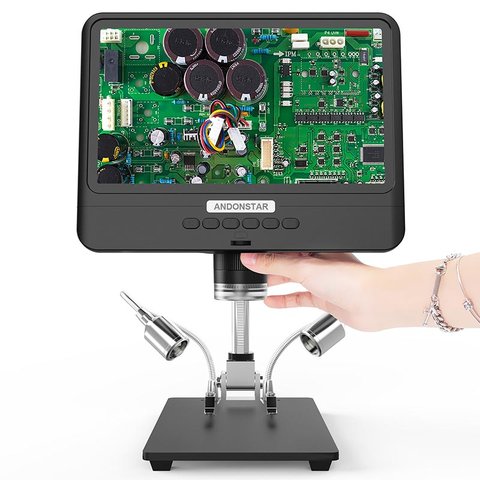

Andonstar AD208 is a digital microscope equipped with an 8.5-inch LCD, a 2MP sensor, 5X to 260X magnification, and an LED double backlight. The device features a large working distance and a wide focus range.
The stable tabletop metal stand with a swivel holder is perfect for large PCBs repairing. Besides, the kit includes metal spring clips for fixing locking parts. The power cable is equipped with a light dimmer, a USB input (compatible with any USB 5 V power source), and two outputs (to fill lights and to the basic unit).
Features
- Large 8.5-inch LCD, 1280 × 800 resolution.
- UV filter for lens protection.
- Magnification up to 260X.
- A stable metal stand with a swivel holder.
- Supplied with spring metal clips for locking small parts and PCBs.
- Backlight: 8 built-in LEDs and 2 fill lights.
- Large working distance and a wide focus range.
- Supports images and videos Micro-SD card saving (card is not included).
- Support 12 languages: Simplified Chinese, Traditional Chinese, English, Japanese, French, German, Korean, Portuguese, Spanish, Russian, Thai, Vietnamese.
Technical Specifications
Image sensor | 2 MP HD Sensor |
Video resolution | FHD 1920×1080 30FPS 1080P 1440×1080 30FPS 720P 1280×720 30FPS |
Video format | AVI |
Magnification | 5X-260X |
Photo resolution | max. 12M (4032×3024) |
Photo format | JPG |
Focus range | 10 mm-160 mm |
Frame rate | 30 f/s |
Storage | Micro-SD card, up to 32 G (not included) |
PC support | no |
Power source | USB 5 V DC |
Light source | 8 built-in LEDs + 2 fill lights |
Display | 8,5", 1280 × 800 |
Stand dimensions | 200 mm × 120 mm × 190 mm |
Package dimensions | 295 mm × 260 mm × 145 mm |
Package weight | 1.65 kg |
Package Contents
- Digital Microscope Andonstar AD208 — 1 pc.
- Metal Stand — 1 pc.
- Power Cable (with light dimmer) — 1 pc.
- Metal Clips — 2 pcs.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
