Digital Microscope with Monitor Andonstar ADSM301
id: 895891
3 kg Warranty: 6 months
USB microscope equipped with a digital camera and a large 5-inch display. Magnification up to 260X, 3.0 Mp sensor, working distance 5-15 cm, LED backlight. Read more
Buy wholesale and save
Inform of price reduction

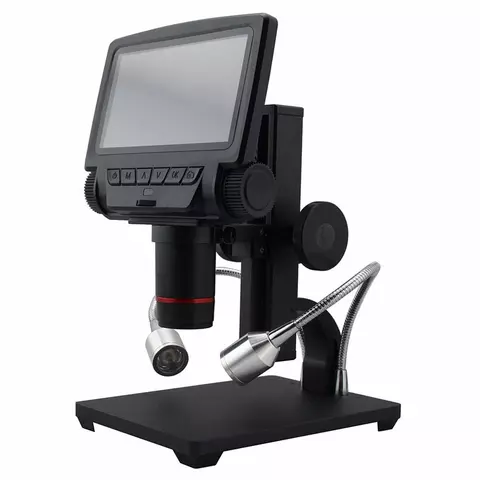

Andonstar ADSM301 is a digital USB microscope equipped with a digital camera that captures photos and video and then displays it on a 5 inch LCD it in real-time.
The device is used to perform a variety of high-precision work, including soldering and erecting work, detecting microcracks, and quality control of PCB micro components, as well as studying rock samples and performing the various working operations.
Features
- Magnification up to 260X.
- Working distance: from 5 to 15 cm.
- Manual focus.
- Light source: 8 built-in LED and 2 LED with the stand.
- Equipped with a 5-inch monitor and IR remote control.
- Connects to a computer via USB or HDMI cables, and to a TV or projector via AV cable.
- 3MP camera with a UV protective filter makes it possible to take high-quality photos and videos in FullHD.
- Wide range of applications.
Technical Specifications
Image sensor | 3.0 MP HD |
Magnification | up to 260X (HDMI display 22 inch) |
Focus range | 5 mm ~ 120 mm |
Object distance | 5 cm ~ 15 cm |
Frame rate | 30 f/s |
Light source | 8 built-in LED & 2 LED with the stand |
Photo format | JPEG, BMP (via USB using software) |
Video format | MOV, AVI (video recording using software) |
Photo resolution | 12 MP 4032×3024, 3648×2736, 3264×2448, 2592×1944, 2048×1536, 1920×1080, 640×480, 1280×960 1280×720 (via PC) |
Video output | 1080P (1920×1080) Full HD (via HDMI), 720P (640×480) (via PC) |
Video output | HDMI/AV |
Storage | MicroSD card, up to 32 G (not included) |
Interface | USB 2.0 |
Display | 5" |
Power source | 5 V/ 2 A DC |
Operating system | Windows XP/7/8/10 |
Dimensions | 170 × 120 × 200 mm |
Package dimensions and weight | 280 × 220 × 160 mm / 1.9 kg |
Certification | CE / FCC / ROHS |
Package Contents
- Digital Microscope with Monitor Andonstar ADSM301— 1 pc.
- Metal Stand — 1 pc.
- USB Cable — 1 pc.
- HDMI Cable — 1 pc.
- Power Adapter — 1 pc.
- IR Remote — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
