Digital Multimeter Accta AT-130
id: 891500
New
0.3 kg
Availability in stock:
HK
Warranty: 12 months A digital multimeter for DC current and AC/DC voltage, and resistance measurements, as well as diode and continuity tests. Manual range selection. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price

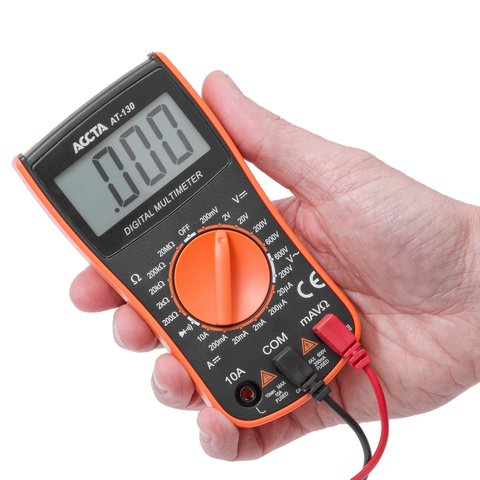

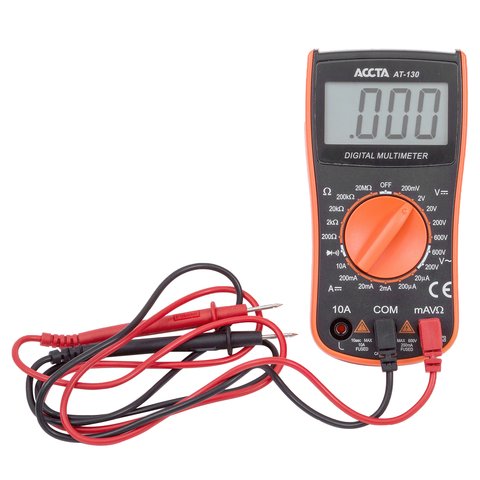

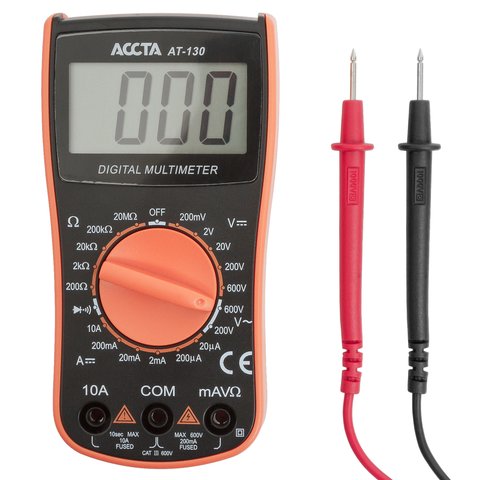

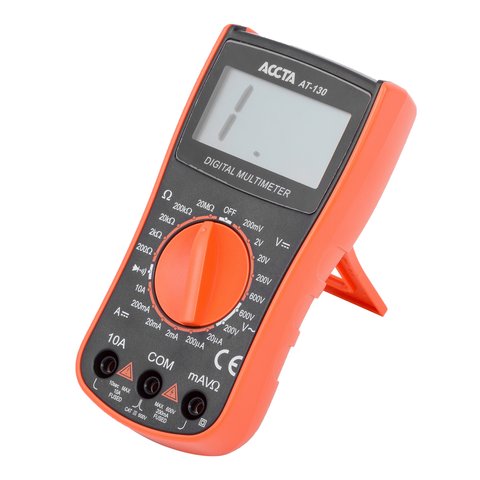

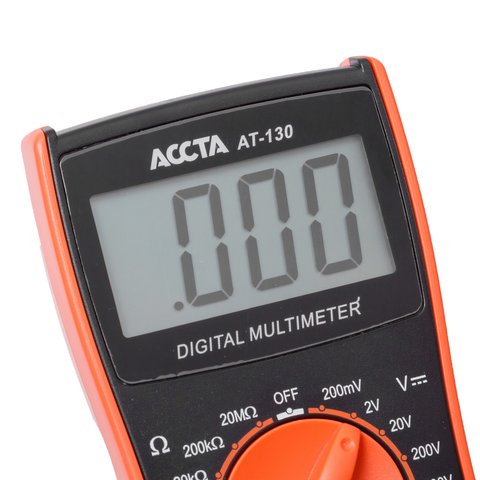

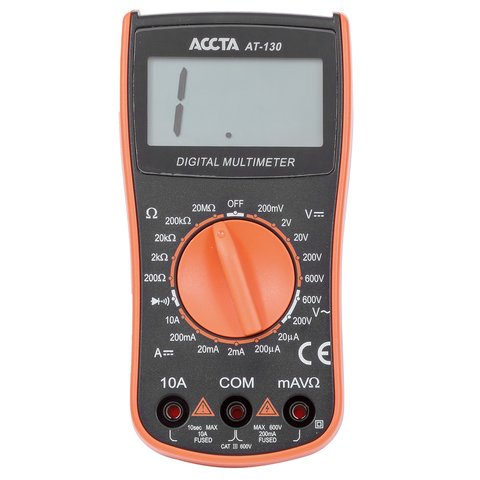

Accta AT-130 is a high-quality multifunction pocket digital multimeter. This convenient portable device is powered from a 9 V battery. Accta AT-130 multimeter is characterized by multiple measurements (AC/DC voltage, DC current and resistance) and tests (diode, continuity).
Features
- Compact and lightweight pocket-size device.
- LCD.
- Manual ranging.
- Measurement functions:
- DC voltage:
- AC voltage;
- DC current;
- resistance;
- diode testing;
- continuity test.
- Battery powered.
- Low battery display.

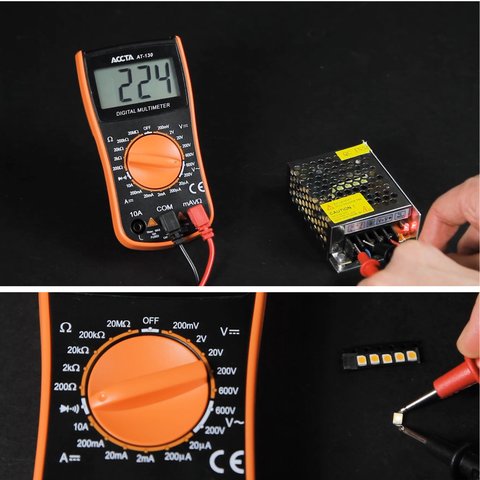

Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 200 mV / 2 V / 20 V / 200 V / 600 V | ±(0.5%+4) |
AC Voltage | 200 V / 600 V | ±(1.2%+10) |
DC Current | 20 µA / 200 µA / 2 mA / 20 mA / 200 mA / 10 A | ±(1,5% + 3) |
Resistance | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 20 MΩ | ±(0,8% + 5) |
General Specifications | ||
Power | 9 V battery (6F22) | |
Input impedance | 10 MΩ | |
Sampling rate | 3 times/s | |
AC frequency response | 40-400 Hz | |
Display | LCD, 57 × 33 mm | |
Dimensions | 138 × 72 × 35 mm | |
Weight | 150 g |

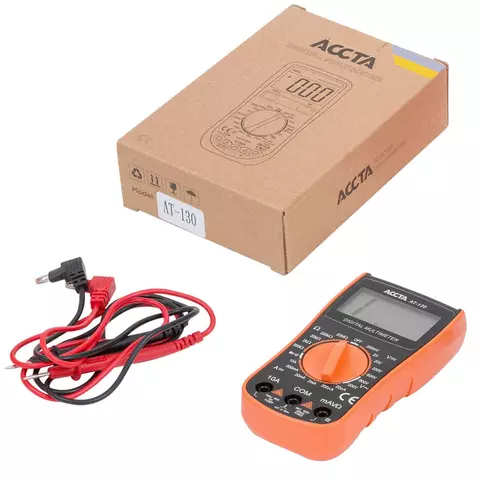

Package Contents
- Digital Multimeter Accta AT-130 — 1 pc.
- Test leads — 1 set.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
