Digital Multimeter Accta AT-201
id: 890293
Digital Multimeter Accta AT-201
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 6.75
Add to cart
Overview
Video
Video
Video
New
0.4 kg
Availability in stock:
HK
Warranty: 12 months A reliable and compact multimeter designed to measure AC/DC voltage, DC current and resistance, and also to perform diodes and batteries testing. Read more
Buy wholesale and save
Inform of price reduction
Description

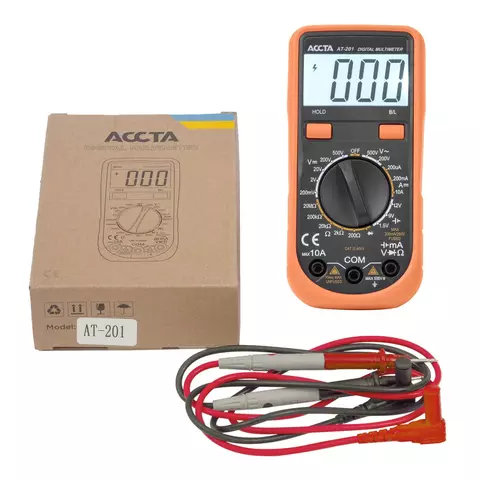

Accta AT-201 is a compact digital multimeter that can be used to measure DC/AC voltage, DC current and resistance, and to perform diode and battery testing. It's equipped with a large 1999 count LCD. The device is very reliable and safe.
Features
- Functions:
- DC voltage;
- AC voltage;
- DC current;
- resistance;
- diode testing;
- battery testing.
- Large 1999 count LCD.
- Overload protection.
- Over limit indication ("1").
- LCD backlight.
- Data hold.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 200 mV / 2 V / 20 V / 200 V | ±(0,5% + 2) |
| 500 V | ±(0,8% + 2) | |
| AC Voltage | 200 V | ±(1,2% + 10) |
| 500 V | ||
| DC Current | 200 µA | ±(1,0% + 2) |
| 200 mA | ±(1,2% + 2) | |
| 10 A | ±(2,0% + 5) | |
| Resistance | 200 Ω | ±(0,8% + 5) |
| 2 kΩ / 20 kΩ / 200 kΩ | ±(0,8% + 2) | |
| 20 MΩ | ±(1,0% + 5) | |
| General Specifications | ||
| Power | 9V NEDA1604/6F22/006P battery × 1 pc. | |
| Sampling rate | 3 times/s | |
| Working temperature | 0..40°C at humidity no more than 80% | |
| Display | max. 1999 digit, LCD | |
| Dimensions | 150 × 73.5 × 35 mm | |
| Weight | 156 g (with a battery) | |
Package Contents
- Digital Multimeter Accta AT-201 — 1 pc.
- Test Leads — 1 set.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
