Digital Multimeter Accta AT-205
id: 890292
New
0.4 kg
Availability in stock:
HK
Warranty: 12 months True RMS multimeter used to measure AC/DC voltage and current, capacitance, frequency and resistance. May be used to perform diode and continuity tests. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price

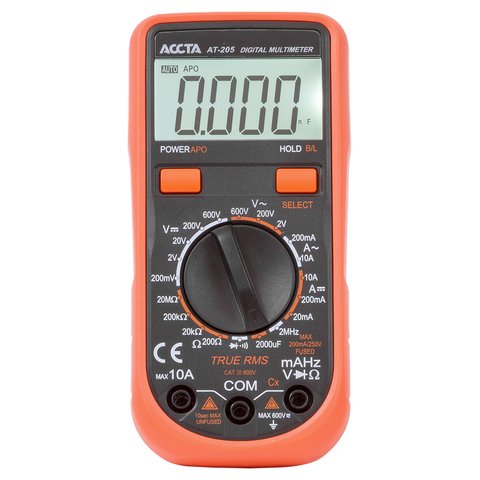

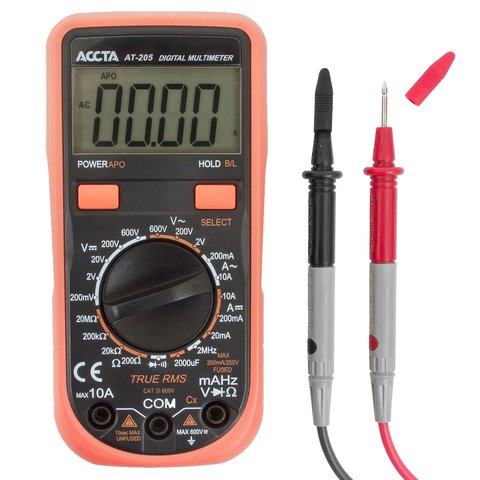

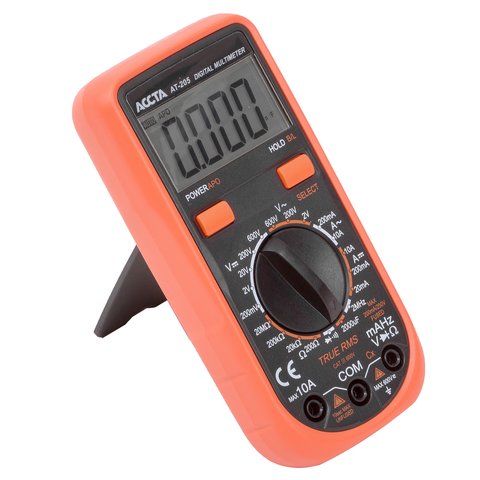

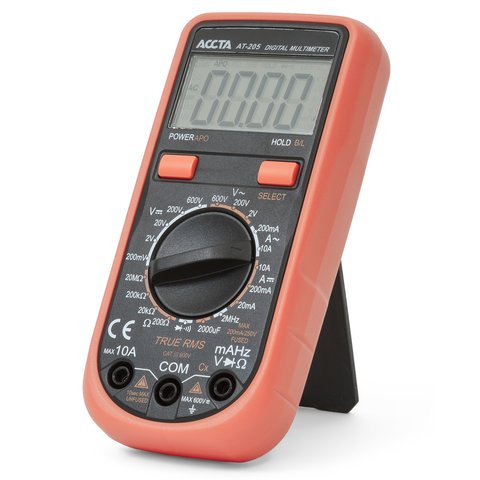

Accta AT-205 is a True RMS digital multimeter used to measure AC/DC voltage, AC/DC current, capacitance, frequency, and resistance, and also to perform diode and continuity tests. The multimeter is equipped with a large 1999-bit display and features high reliability and safety.
Features
- Measurement functions:
- AC/DC voltage;
- AC/DC current;
- capacitance;
- resistance;
- frequency;
- diode testing;
- continuity test.

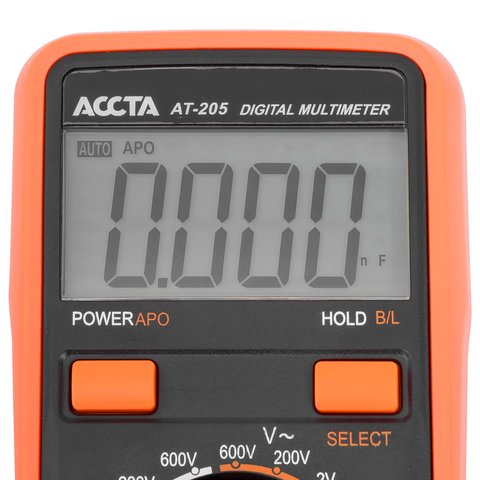

- Large 1999 digit LCD.
- Overload protection.
- Auto power off.
- Data HOLD mode.
- LCD backlight.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 200 mV / 2 V / 20 V / 200 V | ±(0,5% + 3) |
600 V | ±(1,0% + 10) | |
AC Voltage | 2 V / 200 V | ±(0,8% + 5) |
600 V | ±(1,2% + 10) | |
DC Current | 20 mA / 200 mA | ±(1,2% + 8) |
10 A | ±(2,0% + 5) | |
AC Current | 200 mA | ±(1,5% + 15) |
10 A | ±(3,0% + 10) | |
Resistance | 200 Ω | ±(0,8% + 5) |
20 kΩ / 200 kΩ | ±(0,8% + 3) | |
20 MΩ | ±(1,0% + 25) | |
Capacitance | 20 nF / 200 nF / 2 μF | ±(3,5% + 20) |
20 μF / 200 μF / 2000 μF | ±(5,0% + 10) | |
Frequency | 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 2 MHz | ±(0,5% + 10) |
General Specifications | ||
Power | AAA battery × 2 pcs. | |
Input impedance | 10 MΩ | |
Sampling rate | 3 times/s | |
Working temperature | 0..40°C (humidity less than 80%) | |
Display | 1999 max, LCD | |
Dimensions | 150 × 73,5 × 35 mm | |
Weight | 156 g |

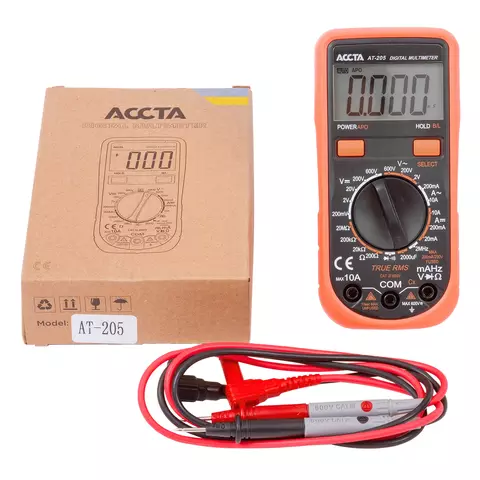

Package Contents
- Digital Multimeter Accta AT-205 — 1 pc.
- Test Leads — 1 set.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
