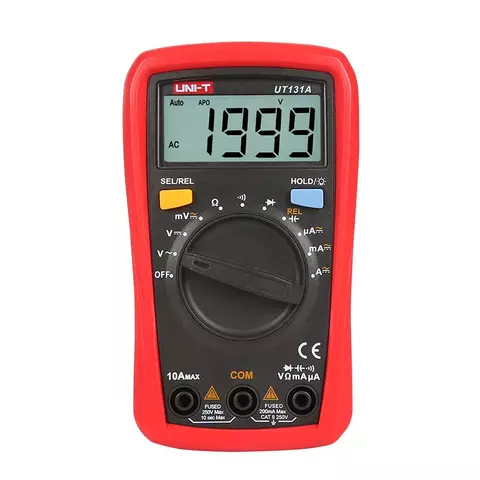

Digital Multimeter UNI-T UT131A
id: 886858
0.4 kg Warranty: 24 months
Automatic range selection. Measures AC/DC voltage and current, resistance, capacitance, and also performs diode and continuity testing. Read more
Inform of price reduction
You may also like
Frequently bought together
UNI-T UT131A is a pocket digital multimeter, that is used to measure DC/AC voltage and current, resistance, capacitance, as well as a diode and continuity testing. UNI-T UT131A features automatic range selection.
Features
- Compact and lightweight multimeter, perfect for carrying in the toolbox or pocket.
- Testing & measurement functions:
- DC/AC voltage;
- DC/AC current;
- resistance;
- capacitance;
- diode testing;
- continuity testing.
- 2 m drop proof.
- Data hold function.
- Relative measurement mode (REL).
- Bright backlight display.
- Low battery indication.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 200 mV / 2 V / 20 V / 200 V / 250 V | 0,8% + 1 |
AC Voltage | 200 mV / 2 V / 20 V / 200 V / 250 V | 1,0% + 2 |
DC Current | 200 μA / 2000 μA / 20 mA / 200 mA / 2 A / 10 A | 1,0% + 3 |
AC Current | 200 μA / 2000 μA / 20 mA / 200 mA / 2 A / 10 A | 1,2% + 3 |
Resistance | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ | 0,8% + 2 |
Capacitance | 2 nF / 20 nF / 200 nF / 2 μF / 20 μF / 200 μF / 2000 μF | 3,0% + 5 |
General Specifications | ||
Power | 1.5 V battery (AAA) × 2 | |
Display | 2000 count LCD, 66 × 51 mm | |
Dimensions | 137 × 77 × 47 mm | |
Weight | 206 g |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
User Manual
Download UNI-T UT131A User Manual.
Package Contents
- Digital Multimeter UNI-T UT131A — 1 pc.
- Test leads — 2 pcs.
- Protective case — 1 pc.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
