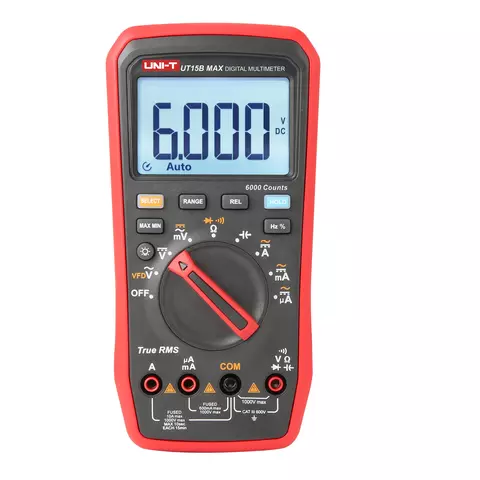

Digital Multimeter UNI-T UT15B Max
id: 913860
1 kg Warranty: 24 months
True RMS meter with a strong anti-interference to EMC interference, and 1000V input protection. Comes with standard gold-plated test leads and gold-plated fine-tipped test leads Read more
Inform of price reduction
The UNI-T UT15B MAX is a reliable digital True RMS multimeter with a 6000-count display, EMI anti-interference protection, quick response, and a handy design. A built-in VFD feature filters out interference from the carrier frequency overlapped by the sine wave or voltage signal distortions and may measure the output voltage of variable frequency drive. In DC/AC mode, the multimeter can also handle frequency and duty cycle measurements.
The UNI-T UT15B MAX comes with a set of gold-plated test leads, while the 1000V full-range input overvoltage protection makes it an excellent choice for engineers and electrical technicians.
Features
- Measurement functions:
- DC/AC voltage;
- DC/AC current;
- resistance;
- capacitance;
- frequency;
- temperature;
- duty cycle;
- diode testing;
- continuity testing.
- True RMS measurements
- Fast measurement times
- The VFD feature providing for accurate, interference-free voltage measurements by applying a low-pass filter to AC voltages under test
- 1000V full-range input protection
- Robust EMC anti-interference protection
- Sturdy built and compact design
Technical Specifications
Measurement functions | Range | Resolution | ||
---|---|---|---|---|
UT15B MAX | UT17B MAX | UT18B MAX | ||
DC voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V | ±(0.4%+3) | ||
AC voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V | ±(0.5%+5) | ||
DC/AC current | 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A | ±(1.2%+3) | ||
VFD voltage | 600.0 V | ±(8%) | ||
Resistance | 600.0 Ω / 6.000 kΩ / 60.00 kΩ / 600.0 kΩ / 6.000 MΩ / 60.00 MΩ | ±(0.5%+2) | ||
Capacitance | 6.000 nF / 60.00 nF ~ 600.0 μF / 6000 μF | ±(2%+5) | ||
Frequency | 10 Hz ~ 10 MHz | |||
Duty cycle | 1 ~ 99.9% | |||
Temperature | -55 ~ 500°C | |||
Comparative Specifications | ||||
UT15B MAX | UT17B MAX | UT18B MAX | ||
Continuity testing | ✓ | ✓ | ✓ | |
Diode testing | ✓ | ✓ | ✓ | |
Relative mode | ✓ | ✓ | ✓ | |
MIN/MAX measurements | ✓ | ✓ | – | |
Auto/Manual range | ✓ | ✓ | ✓ | |
Data hold | ✓ | ✓ | ✓ | |
Adjustable backlight | ✓ | ✓ | ✓ | |
Low battery indication | ✓ | ✓ | ✓ | |
Auto power off | ✓ | ✓ | ✓ | |
Audible/Visual alarm | ✓ | ✓ | ✓ | |
LED testing | – | – | ✓ | |
Mis-plug alarm | ✓ | ✓ | ✓ | |
Any-key wake up | ✓ | ✓ | ✓ | |
General Specifications | ||||
Display | LCD, 6000 count | |||
Power supply | 1.5V AA battery × 2 pcs. | |||
Dimensions | 182 × 91 × 45 mm | |||
Weight | 455 g | |||
Overvoltage category | CATIII 600 V | |||
Certifications | CE, UKCA, cETLus, REACH, RoHS |
User Manual
Download UNI-T UT15/17/18B MAX User Manual
Package Contents
- UNI-T UT15B MAX digital multimeter — 1 pc.
- Test leads — 2 pairs
- User manual — 1 pc.
