Digital Multimeter UNI-T UT33D+
id: 885265
0.4 kg Warranty: 24 months
Pocket size digital multimeter which measures AC/DC voltage, DC current, resistance, tests diodes and checking continuity + NCV! Read more
Buy wholesale and save
Inform of price reduction
You may also like
Frequently bought together

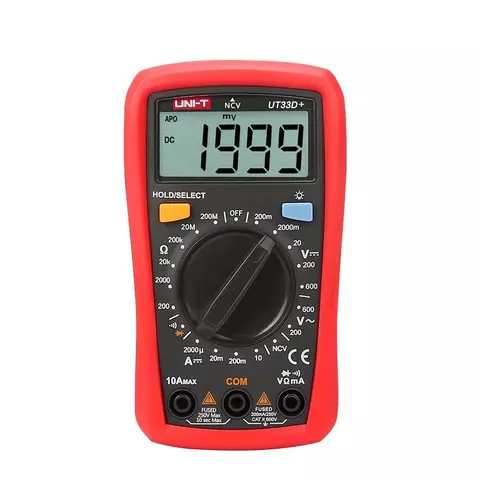

UNI-T UT33D+ is a pocket size digital multimeter which can measure AC/DC voltage, DC current, resistance, tests diodes and checking continuity, non-contact voltage detection (NCV).
Features
- Measurement functions:
- AC/DC voltage
- DC current
- resistance
- continuity test (with buzzer)
- diode test
- non-contact voltage detection (NCV)
- Data Hold function
- Low battery indication
Technical Specifications
Display | 1999 digit LCD, backlight, 48 × 16 mm | |
DC voltage | Range | 200 mV / 2000 mV / 20 V / 200 V / 600 V |
Accuracy | ±(0.5%+2) | |
AC voltage | Range | 200 V / 600 V |
Accuracy | ±(1.2%+10) | |
DC current | Range | 2000 µA / 20 mA / 200 mA / 10 A |
Accuracy | ±(1%+2) | |
Resistance | Range | 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 20 MΩ / 200 MΩ |
Accuracy | ±(0.8%+2) | |
Power | 2 pcs. AAA | |
Dimensions | 130 × 73.5 × 35 mm | |
Weight | 156 g |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Multimeter UNI-T UT33D+ — 1 pc.
- Test leads — 1 pair
- AAA 1.5V battery — 2 pcs.
- User manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
