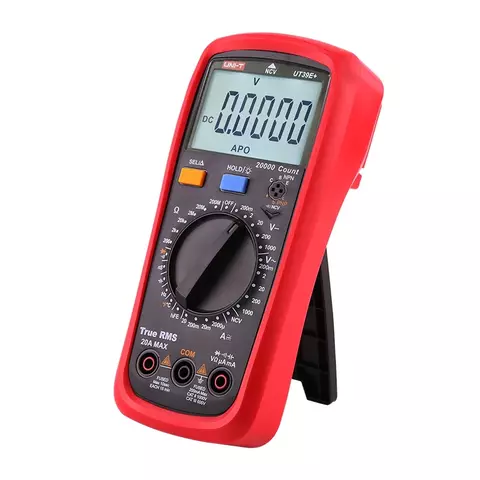

Digital Multimeter UNI-T UT39E+
id: 898459
Digital Multimeter UNI-T UT39E+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 28.19
Notify
when in stock
when in stock
Overview
1 kg Warranty: 24 months
True RMS multimeter for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature, conductance, continuity, and for diode and transistor testing. Read more
Buy wholesale and save
Inform of price reduction
Frequently bought together
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock:
HK
ID: 834649 0.061 kg
Description
UNI-T UT39E+is a portable True RMS digital multimeter designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature, conductance, continuity, and may be used for diode and transistor testing. It also performs NCV (non-contact AC voltage) testing.
The tool is perfect for HVACR maintenance with its temperature measurement feature.
Features
- Functions:
- AC/DC current;
- AC/DC voltage;
- resistance;
- capacitance;
- frequency;
- temperature;
- conductance
- NCV (non-contact AC voltage testing);
- continuity test (with buzzer);
- diode test;
- transistor hFE.
- True RMS measurements.
- Auto ranging.
- High voltage protection.
- Overvoltage and overcurrent alarm.
- Relative mode.
- Data hold.
- Large backlit LCD.
- Auto power off.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V | ±(0.05%+3) |
| AC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V | ±(0.5%+10) |
| DC Current | 2000 μA / 20 mA / 200 mA / 2 A / 20 A | ±(0.05%+5) |
| AC Current | 2000 μA / 20 mA / 200 mA / 20 A | ±(0.8%+10) |
| Resistance | 200 Ω / 2 kΩ / 20 kΩ / 2 MΩ / 20 MΩ / 200 MΩ | ±(0.3%+2) |
| Capacitance | 2000 μF | ±(4%+20) |
| Frequency | 0 Hz ~ 2 MHz | ±(0.1%+3) |
| Temperature | -40ºC ~ 1000ºC | ±(1%+5) |
| -40ºF ~ 1832ºF | ±(1.5%+5) | |
| Conductance | 0.1 ~ 100 nS | ±(1%+3) |
| General Specifications | ||
| Frequency Response | 40 Hz ~ 400 Hz | |
| Display | LCD, 56.5 mm × 36 mm, 20000 count | |
| Power | 1.5V battery (R03) × 2 pcs. | |
| Drop Test | 2 m | |
| Dimensions | 175 mm × 83 mm × 53 mm | |
| Weight | 330 g | |
| Safety Category | CAT II 1000V, CAT III 600V | |
Package Contents
- Digital Multimeter UNI-T UT39E+ — 1 pc.
- Test Leads — 1 set
- Temperature Probe — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| Frequency |
|
| Capacitance |
|
| NCV |
|
| Battery Testing |
|
