Digital Multimeter UNI-T UT61B+
id: 898457

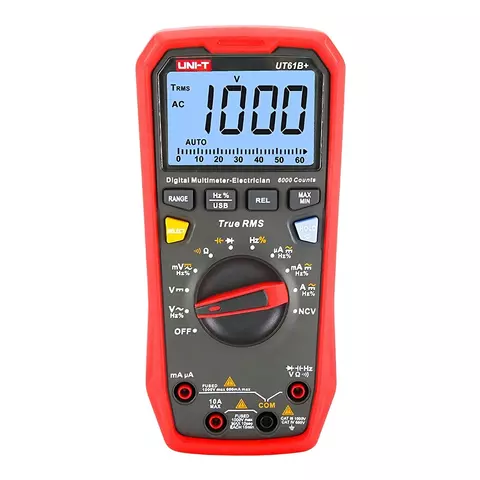

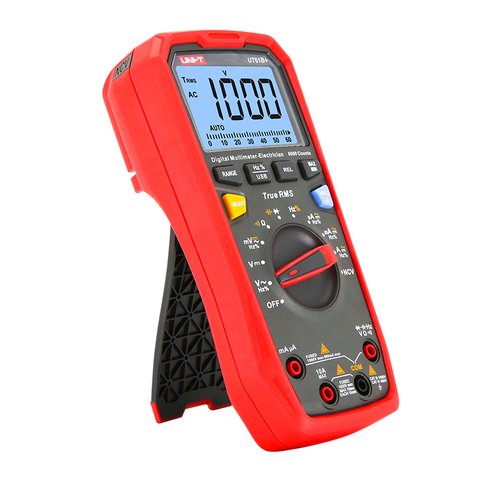

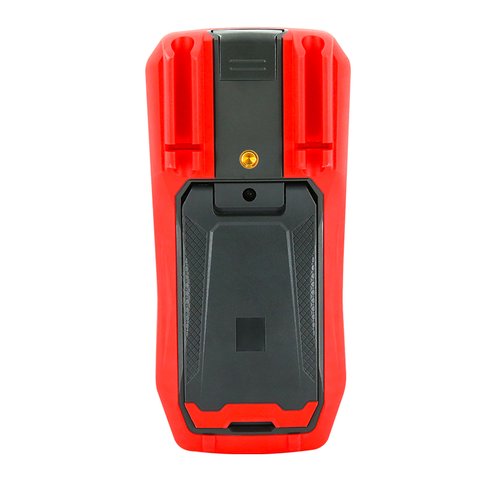

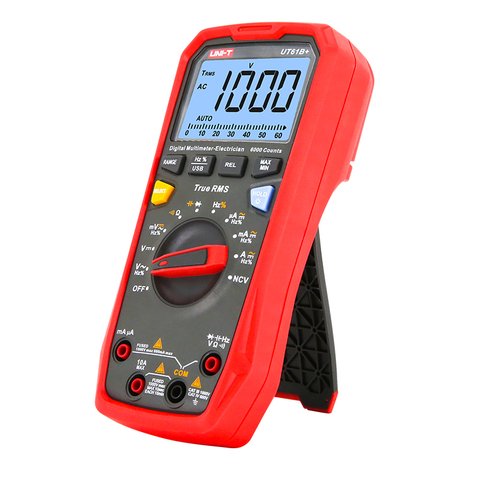

Digital Multimeter UNI-T UT61B+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 44.11
Overview
0.8 kg Warranty: 24 months
True RMS multimeter used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, duty cycle, and also to test diode and continuity. Read more
USD 44.11
Buy wholesale and save
Description
UNI-T UT61B+ is a compact digital True RMS multimeter used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, duty cycle, and also to test diode and continuity. Equipped with audible and visible alarm, this multimeter provides warning expecially when measuring high voltage and current.
Features
- True RMS.
- NCV (audible/visual alarm).
- Data hold.
- Display backlight.
- Max/Min mode.
- Relative measurements mode.
- Auto/Manual ranging.
- USB communication.
- Input protection.
- Diode/continuity test.
- Auto power off.
- Low battery indication.
- Safety standard: CAT III 1000V/CAT IV 600V.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC Voltage | 1000 V | ±(1%＋3) |
| DC Voltage | 1000 V | ±(0.5%＋3) |
| AC Current | 10 A | ±(1.2%＋5) |
| DC Current | 10 A | ±(1%＋2) |
| Resistance | 60 MΩ | ±(1%＋2) |
| Capacitance | 60 mF | ±(3%＋5) |
| Frequency | 10 MHz | ±(0.1%＋4) |
| Duty cycle | 0.1%~99.9% | ±(2%＋5) |
| General Specifications | ||
| Display Count | 6000 | |
| Bandwidth | 40 Hz~500 Hz | |
| Analog Bar | 31 | |
| Power | battery 1.5V (R03) × 4 pcs. | |
| Dimensions | 190 mm × 90 mm × 50 mm | |
| Weight | 350 g | |
User Manual
Download UNI-T UT61B+ User Manual.
Package Contents
- Digital Multimeter UNI-T UT61B+ — 1 pc.
- User Manual — 1 pc.
- Test Leads — 1 pair
- Cable USB — 1 pc.
- 1.5V AAA Batteries — 4 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
