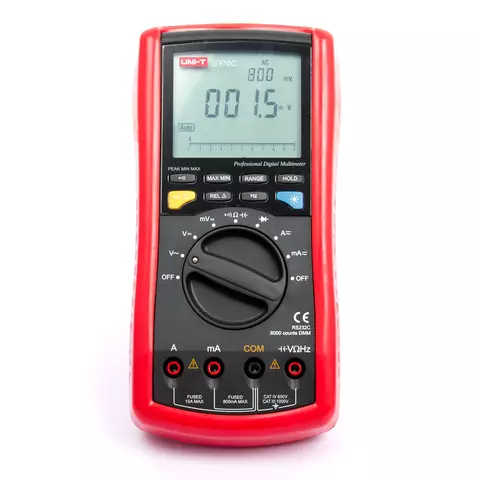

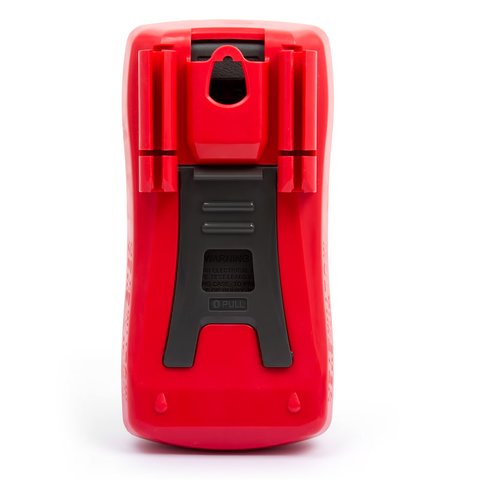

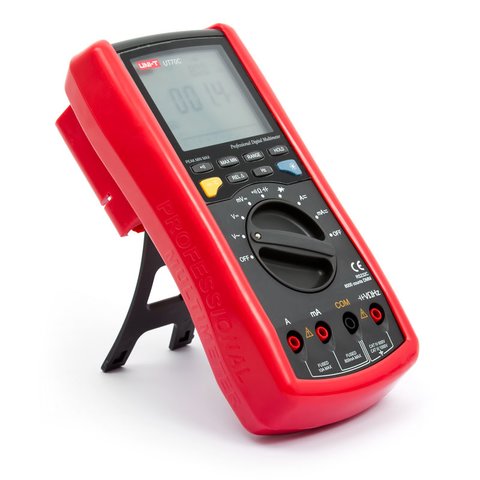

Digital Multimeter UNI-T UT70C
id: 822396
Digital Multimeter UNI-T UT70C
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
Video
1.135 kg Warranty: 24 months
Digital multimeter which measures AC/DC voltage, AC/DC current, resistance, frequency, capacitance and can be used for continuity test. Read more
Discontinued
Description
This UNI-T UT70C digital multimeter is designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency and can be used for continuity and diode tests.
Features
- Measurement functions:
- AC/DC voltage
- AC/DC current
- capacitance
- conductance
- resistance
- frequency
- continuity test
- Auto ranging
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Display | 7999 digit LCD, backlight, 62 × 53 mm | |
| DC voltage | Range | 80 mV / 800 mV / 8 V / 80 V / 800 V / 1000 V |
| Accuracy | ±(0.1%+1) | |
| AC voltage | Range | 800 mV / 8 V / 80 V / 800 V / 1000 V |
| Accuracy | ±(1%+3) | |
| DC current | Range | 80 mA / 800 mA / 8 A / 10 A |
| Accuracy | ±(0.3%+2) | |
| AC current | Range | 80 mA / 800 mA / 8 A / 10 A |
| Accuracy | ±(0.8%+2) | |
| Resistance | Range | 800 Ω / 8 kΩ / 80 kΩ / 800 kΩ / 8 MΩ / 80 MΩ |
| Accuracy | ±(0.5%+1) | |
| Capacitance | Range | 1 nF / 10 nF / 100 nF / 1 μF / 10 μF / 100 μF |
| Accuracy | ±(2%+3) | |
| Conductance | Range | 80 nS |
| Accuracy | ±(2%+10) | |
| Frequency | 1 kHz / 10 kHz / 100 kHz / 1 MHz | |
| Power | 9 V battery (6F22) | |
| Dimensions | 195 × 90 × 40 mm | |
| Weight | 0.600 kg | |
User Manuals And Software
Download UNI-T UT70C Digital Multimeter User Manual
Download UNI-T UT90D Digital Multimeter Software

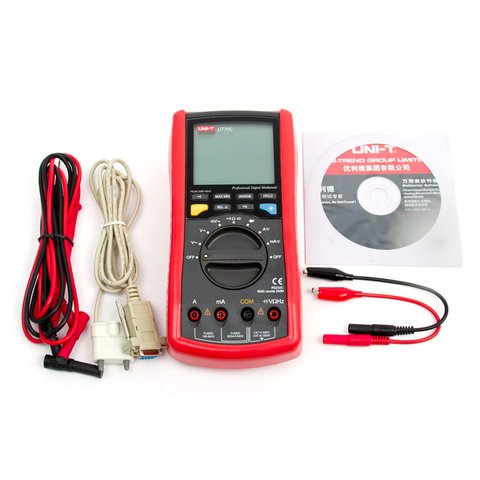

Package Contains
- Multimeter UNI-T UT70C (1 pc.)

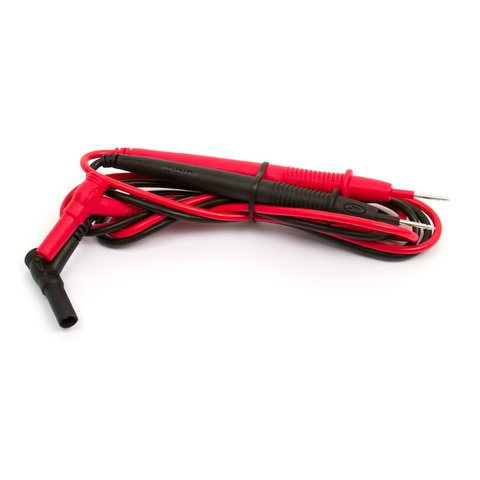

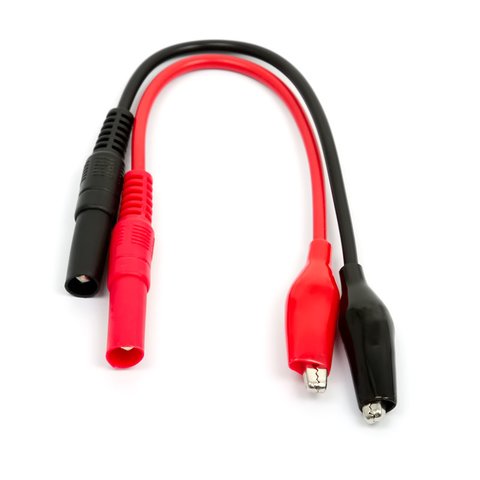

- Test lead (1 pc.)

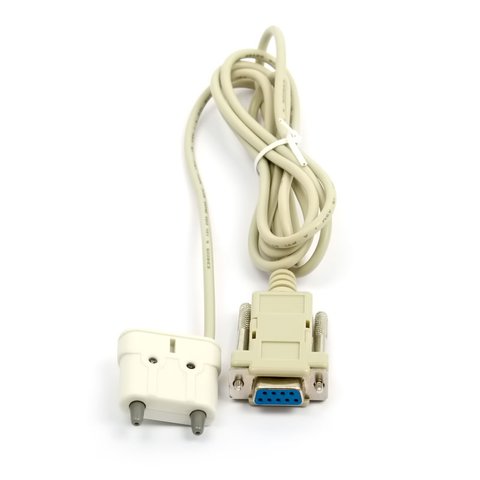

- RS232C interface cable (1 pc.)
- Battery (1 pc.)
- User manual (1 pc.)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
