Digital Multimeter UNI-T UT890C
id: 893958
Digital Multimeter UNI-T UT890C
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 17.60
Add to cart
Overview
0.5 kg
Availability in stock:
HK
Warranty: 24 months True RMS multimeter for measuring AC/DC voltage & current, resistance, frequency, capacitance, temperature, and performing hFE, diode, continuity tests. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Frequently bought together
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock:
HK
ID: 834649 0.061 kg
Description

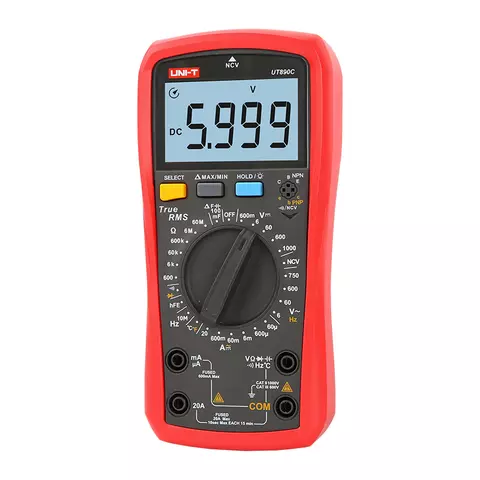

UNI-T UT890C is a 6000-count True RMS digital multimeter with a large LCD for measuring AC/DC voltage & current, resistance, frequency, capacitance, temperature, and performing hFE, diode, continuity tests.
Features
- True RMS measurements.
- Manual Range
- NCV and continuity measurements (with sound and light indication).
- Diode test
- hFE test.
- MAX/MIN/REL mode.
- Data Hold function.
- High voltage protection.
- Fuse blowing alarm.
- Over-current alarm (≥20 A).
- Low battery indication (≤2.5 V).
- Auto power off function (after 15 minutes).
- LCD backlight.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 600 mV / 6 V / 60 V / 600 V / 1000 V | ±(0.5%+2) |
| AC Voltage | 6 V / 60 V / 600 V / 750 V | ±(0.8%+3) |
| ACV Frequency | 10 Hz～10 kHz | ±(0.1%+5) |
| DC Current | 60 μA / 600 μA / 6 mA / 60 mA / 600 mA / 20 A | ±(0.8%+8) |
| AC Current | 60 μA / 600 μA / 6 mA / 60 mA / 600 mA / 20 A | ±(1%+12) |
| Resistance | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ | ±(0.8%+3) |
| Capacitance | 6.000 nF / 60.00 nF / 600.0 nF / 6.000 μF / 60.00 μF / 600.0 μF / 6.000 mF / 60.00 mF / 100.0 mF | ±(3%+10) |
| Frequency | 9.999 Hz～9.999 MHz | ±(1.0%+5) |
| Temperature | –40°C~1000°C/–40°F~1832°F | ±(1.5%+5) |
| General Characteristics | ||
| Power Supply | 1.5 V battery x 2 | |
| Working temperature | 0°C～40°C | |
| Display | LCD, 48 × 16 mm | |
| Size | 183 × 88 × 56 mm | |
| Weight | 346 g | |
User Manual
Download UNI-T UT890C user manual.
Package Contents
- UNI-T UT890C Digital Multimeter — 1 pc.
- Measuring Probes — 1 set
- AAA 1,5V Batteries — 2 pcs.
- Thermocouple — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
