Digital Multimeter UNI-T UT890D+
id: 886864
0.5 kg Warranty: 24 months
True RMS multimeter for measuring AC/DC voltage & current, resistance, frequency, capacitance and performing hFE, diode, continuity tests. LIVE function. Read more
Buy wholesale and save
Inform of price reduction
You may also like
Frequently bought together

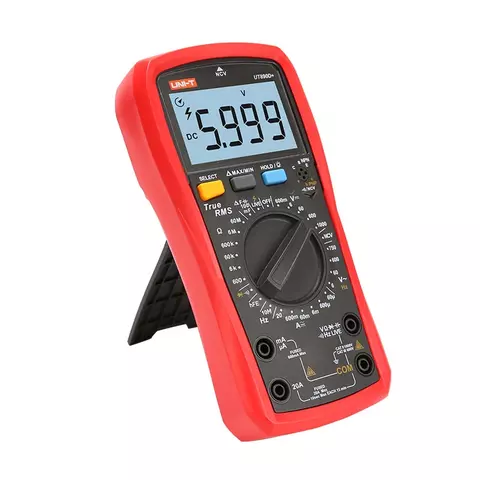

UNI-T UT890D+ Digital Multimeter is a 6000-count True RMS digital multimeter with a large LCD display for measuring AC/DC voltage & current, resistance, frequency, capacitance and performing hFE, diode, continuity tests.
Features
- Manual Range
- NCV and continuity measurements (with sound and light indication).
- Diode test
- hFE test.
- LIVE function for distinguishing between live and neutral wires.
- MAX/MIN/REL mode.
- Data Hold function.
- High voltage protection.
- Fuse blowing alarm.
- Over-current alarm (≥20A).
- Low battery indication.
- Auto power off function.
- LCD backlight.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 600 mV / 6 V / 60 V / 600 V / 1000 V | ±(0.5%+2) |
AC Voltage | 6 V / 60 V / 600 V / 750 V | ±(0.8%+3) |
ACV Frequency | 10 Hz~10 kHz | ±(0.1%+5) |
DC Current | 60 μA / 600 μA / 6 mA / 60 mA / 600 mA / 20 A | ±(0.8%+8) |
AC Current | 60 μA / 600 μA / 6 mA / 60 mA / 600 mA / 20 A | ±(1%+12) |
Resistance | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ | ±(0.8%+3) |
Capacitance | 6.000 nF / 60.00 nF / 600.0 nF / 6.000 μF / 60.00 μF / 600.0 μF / 6.000 mF / 60.00 mF / 100.0 mF | ±(3%+10) |
Frequency | 9.999 Hz~9.999 MHz | ±(1.0%+5) |
General Characteristics | ||
Power Supply | 1.5 V battery x 2 | |
Display | LCD, 48 × 16 mm | |
Size | 183 × 88 × 56 mm | |
Weight | 346 g |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- UNI-T UT890D+ digital multimeter — 1 pc.
- Test leads — 1 set
- AAA 1.5V battery — 2 pcs.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
