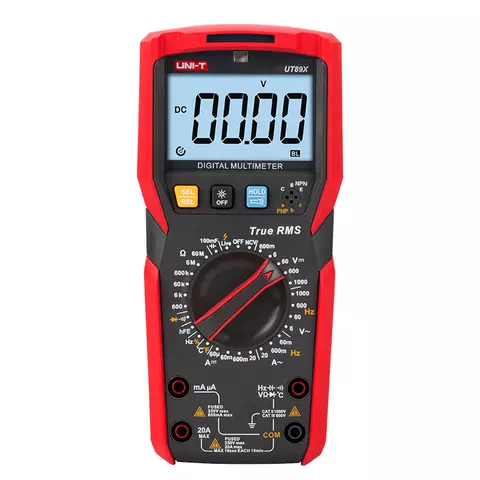

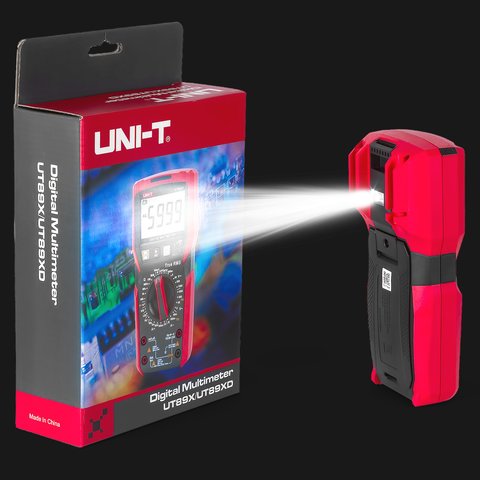

UNI-T UT89X Digital Multimeter is a reliable handheld multimeter with true RMS measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, temperature, diode, hFE, continuity and NCV, quickly and accurately distinguish between neutral and live wires. Equipped with audible and visible alarm, flashlight and auto backlight functions, this meter can be used in dark environment.
| Function | Range | Accuracy |
|---|---|---|
| DC voltage | 600 mV / 6 V / 60 V / 600 V / 1000 V | ±(0.5%+2) |
| AC voltage | 6 V / 60 V / 600 V / 1000 V | ±(0.8%+5) |
| DC current | 60 μA / 60 mA / 600 mA / 20 A | ±(0.8%+8) |
| AC current | 60 mA / 600 mA / 20 A | ±(1%+12) |
| Resistance | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ | ±(0.8%+3) |
| Capacitance | 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF / 100 mF | ±(2.5%+20) |
| Frequency | 9.999 Hz/9.999 MHz | ±(0.1%+4) |
| Duty cycle | 0.1%~99.9% | ±(2%+5) |
| Temperature | -40℃~1000℃ | ±(2%+4) |
| -40℉~1832℉ | ±(2%+8) | |
| AC voltage frequency response | 45~1000 Hz | |
| AC current frequency response | 45~1000 Hz | |
| General Characteristics | ||
| Power Supply | 1.5V battery (R03) x 4 | |
| Display | LCD, 61 × 36 mm | |
| Size | 189 × 89 × 53 mm | |
| Weight | 345 g | |
You'll find even more video reviews in the Video tab. Go and check it out!
Note! Batteries are not included in the package.
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Capacitance |
|
| Frequency |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| NCV |
|
| Battery Testing |
|
