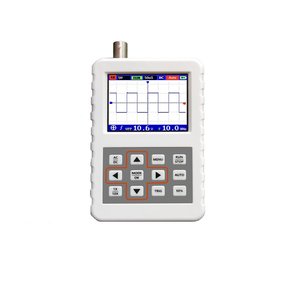

Portable single-channel oscilloscope with 200 kHz bandwidth, 1 MSa/s sampling rate, 1 kB memory depth and 2.4" TFT display.
Availability in stock:
HK
ID: 895991 0.5 kg
Digital Oscilloscope FNIRSI 5012H
id: 895990
Digital Oscilloscope FNIRSI 5012H
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 67.32
Overview
0.6 kg
Availability in stock:
HK
Warranty: 6 months Portable single-channel oscilloscope with 500 MS/s sampling rate, 100 MHz bandwidth, 2.4" TFT display, and 3000 mAh lithium battery (provides up to 8 hours of operation). Read more
USD 67.32
You may also like
Portable single-channel digital oscilloscope with 110 MHz bandwidth, 500 MSa/s sampling rate, 240 kB storage depth and 2.4" TFT display.
Availability in stock:
HK
ID: 910522 0.5 kg
Description

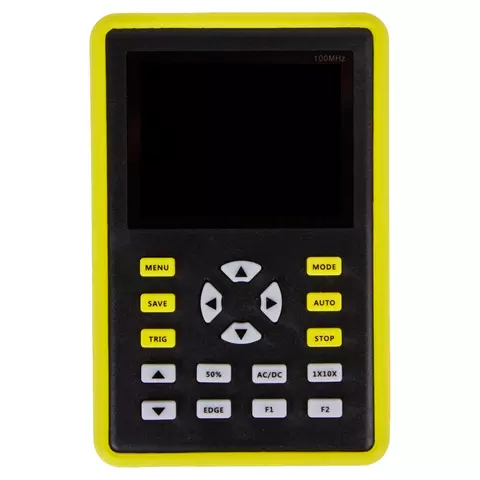

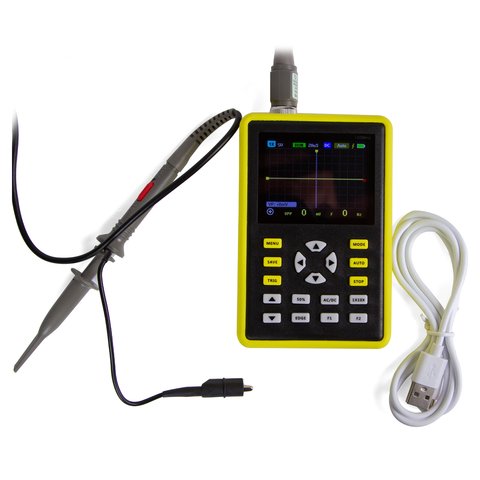

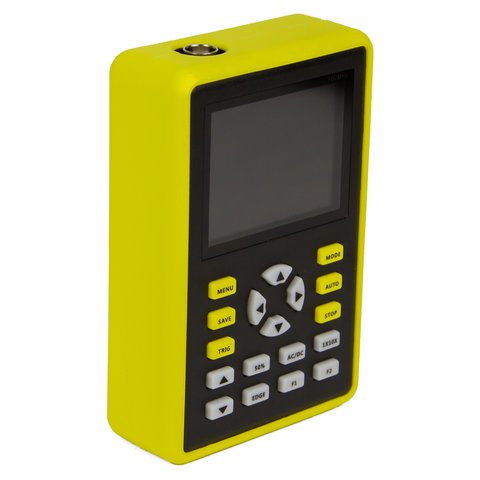

FNIRSI 5012H is a portable single-channel digital oscilloscope with 500 MS/s sampling rate and 100 MHz bandwidth. The tool is equipped with a 2.4-inch TFT color display and is powered by a built-in 3000 mAh lithium battery that provides up to 8 hours of continuous work.
Features
- Compact size.
- Afterglow display technology.
- 2.4 inch color display screen.
- 100 MHz analog bandwidth, 500 MS/s sampling rate (1X = 5 MHz,10X = 100 MHz).
- Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions.
- Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Time.
- Complete triggering function (single, normal, automatic).
- One-button waveform storage.
- Automatic measurement function.
- Built-in 64 MB storage space, the maximum storage of 2000 waveform pictures.
- At any time, the waveform display (pause function) is frozen.
- Screen brightness adjustment.
- Built-in 3000mAh rechargeable lithium battery, providing up to 8 hours of continuous use.
- Anti-slip anti-drop silicone sleeve.
Technical Specifications
| Channel | 1 |
| Bandwidth | 100 MHz |
| Sampling rate | 500 MS/s |
| Storage depth | 128 KB |
| Input | |
|---|---|
| Input Coupling | DC, AC |
| Input Impedance | 1 MΩ, 25 pF |
| Passive probes | 1 X, 10 X |
| Max input voltage | 80 V (1 X), 800 V (10 X) |
| Horizontal System | |
| Time base scale | 50 s/div - 6 ns/div |
| Vertical System | |
| Time base scale | 50 mV/div - 100 V/div |
| Rise time | < 3 ns |
| Vertical resolution | 8 bit |
| Voltage accuracy | ± 2% |
| Frequency accuracy | ± 0,01% |
| Trigger System | |
| Trigger Mode | Auto, Normal, Single |
| Trigger Type | Ascending/descending edge |
| Measuring System | |
| Automatic measurements | VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time- |
| Cursor measurements | XY, Y trigger |
| General Specifications | |
| Display | color TFT-display, 2.4 inches, 320 × 240 pixels |
| Power | Built-in 3000mAh lithium battery, up to 8 hours continuous work |
| Interface | microUSB |
| Built-in memory | 64 MB |
| Dimensions | 144 × 74 × 33 mm |
| Net weight | 388 g |
User Manual
Download FNIRSI 5012H User Manual.

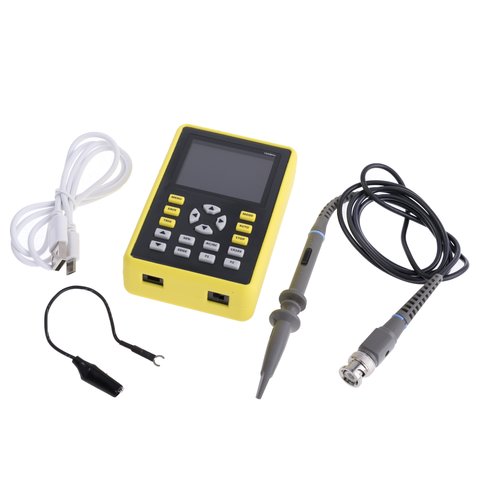

Package Contents
- Digital Oscilloscope FNIRSI 5012H — 1 pc.
- Measuring Probe — 1 pc.
- MicroUSB Cable — 1 pc.
- User Manual — 1 pc.
- Bag for Storage and Carrying — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
