Digital Oscilloscope OWON HDS2102S
id: 914958
2.4 kg Warranty: 12 months
Portable dual-channel oscilloscope with built-in generator, bandwidth 100 MHz, sampling rate 500 MS/s, memory size: 8 kpts, built-in digital multimeter function Read more
Inform of price reduction

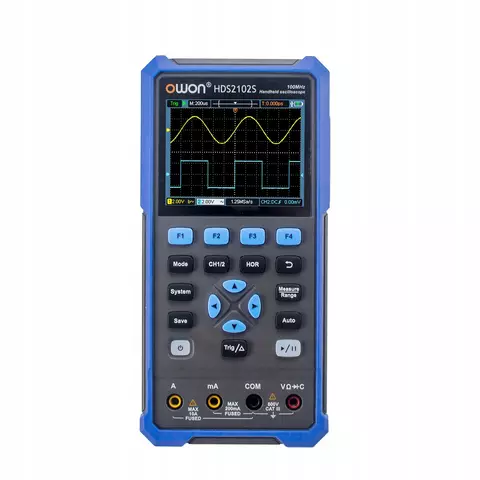

OWON HDS2102S is a portable dual-channel oscilloscope with a built-in signal generator. It features a 100 MHz bandwidth, 500 MSa/s sampling rate, 8K record length, and a 3.5" LCD. The device is equipped with a built-in 20,000-count multimeter, capable of measuring voltage, current, resistance, capacitance, testing diodes, and continuity. Its high-contrast and high-resolution LCD make it suitable for using the oscilloscope outdoors.
Features
- 3-in-1 device: oscilloscope + multimeter + function generator.
- 100 MHz bandwidth, 500 MSa/s sampling rate.
- Multimeter testing modes include voltage, current, resistance, capacitance, diode, and continuity tests.
- 3.5-inch high-resolution color high-contrast LCD, suitable for outdoor use.
- Rechargeable 18650 battery with ≤3W power consumption, providing up to 6 hours of continuous use.
- USB Type-C interface, supporting SCPI commands, and the capability to connect to an external battery.
- Self-calibration function.
Technical Specifications
Oscilloscope | ||
---|---|---|
Channels | 2 | |
Bandwidth | 100 MHz | |
Sample Rate | 500 MSa/s | |
Acquisition Mode | Normal, Peak detect | |
Record Length | 8K | |
Waveform Refresh Rate | 10 000 wfrms/s | |
Input Coupling | DC, AC, GND | |
Input Impedance | 1 MΩ±2%, in parallel with 16 pF±10 pF | |
Probe Attenuation Factors | 1X,10X,100X,1000X,10000X | |
Max. input Voltage | 400 V (DC+AC, PK-PK, 1 MΩ input impedance) (10:1 probe attenuation) | |
Bandwidth Limit (typical) | 20 MHz | |
Horizontal Scale | 2 ns/div-1000 s/div, step by 1-2-5 | |
Vertical Sensitivity | 10 mV/div - 10 V/div | |
Vertical Resolution | 8 bits | |
Trigger Type | Edge | |
Trigger Modes | Auto, Normal, Single | |
Automatic Measurement | Frequency, Period, Amplitude, Max, Min, Mean, PK-PK | |
Cursor Measurement | ΔV, ΔT, ΔT&ΔV between cursors | |
Multimeter | ||
Max. Resolution | 20,000 counts | |
Testing Mode | DC voltage | 0.01 mV - 1000 V (±0.5% + 5) |
AC voltage | 0.01 mV - 750 V (±0.8% + 5) | |
DC current | 10 μA - 10 A (±0.8% + 2) | |
AC current | 10 μA - 10 A (±1% + 5) | |
Resistance | 0.01 Ω - 100 MΩ (±0.8% + 3) | |
Capacitance | 1 pF - 2 mF (±3% + 10) | |
Diode testing | 0-2 V | |
Continuity test | ||
Input Impedance | 10 MΩ | |
Max Input Voltage | AC 750V, DC 1000V | |
Max Input Current | DC: 10 A; AC: 10 A | |
Waveform Generator | ||
Frequency Output | Sine | 0.1 Hz - 25 MHz |
Square | 0.1 Hz - 5 MHz | |
Ramp | 0.1 Hz - 1 MHz | |
Pulse | 0.1 Hz - 5 MHz | |
Arbitrary | 0.1 Hz - 5 MHz | |
Sample rate | 125 MSa/s | |
Channels | single channel | |
Amplitude range | 20 mV - 5 V (high impedance) | |
Record length | 8K | |
Vertical resolution | 14 bit | |
Output impedance | 50 Ω | |
General Specifications | ||
Display | 3.5" LCD | |
Communication Interface | USB Type-C | |
Dimensions | 198 mm × 96 mm × 38 mm | |
Weight | 600 g |
Video
Package Contents
- Digital Oscilloscope OWON HDS2102S — 1 pc.
- Oscilloscope Measuring Probes — 1 set
- Multimeter Measuring Probes — 1 set
- Probe Adjust — 1 pc.
- BNC to Alligator Clip — 2 pcs.
- USB Cable — 1 pc.
- Soft Bag — 1 pc.
- Quick Guide — 1 pc.
