Digital Oscilloscope OWON HDS272S
id: 901470
Digital Oscilloscope OWON HDS272S
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 193.00
Notify
when in stock
when in stock
Overview
2.4 kg Warranty: 12 months
Handled dual channel oscilloscope/multimeter with built-in function generator with 70 MHz bandwidth, 250 MSa/s sampling rate, 8K record length, and 3.5-inch LCD. Read more
Buy wholesale and save
Inform of price reduction
Description

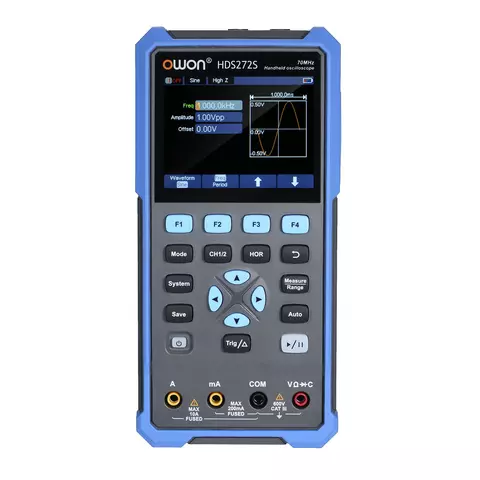

OWON HDS272S is a portable dual channel oscilloscope with built-in signal generator. Features 70 MHz bandwidth, 250 MSa/s sampling rate, 8K record length, and 3.5" LCD. The device is equipped with a built-in 20,000-count multimeter, measuring voltage, current, resistance, capacitance, testing diodes, and continuity. Its high-contrast and high-resolution LCD allows using the oscilloscope outdoors.
Features
- 3 in 1 device: oscilloscope + multimeter + function generator.
- 70 MHz bandwidth, 250 MSa/s sampling rate.
- Multimeter testing modes: voltage, current, resistance, capacitance, diode, and continuity test.
- 3.5" high contrast color LCD with high resolution.
- Rechargeable 18650 battery with ≤3W of power consumption provides up to 6 hours of continuous use.
- USB Type-C interface, SCPI command support.
- Self-calibration function.
Technical Specifications
| Oscilloscope | ||
|---|---|---|
| Channels | 2 | |
| Bandwidth | 70 MHz | |
| Sample Rate | 250 MSa/s | |
| Acquisition Mode | Normal, Peak detect | |
| Record Length | 8K | |
| Waveform Refresh Rate | 10,000 wfrms/s | |
| Input Coupling | DC, AC, GND | |
| Input Impedance | 1 MΩ±2%, in parallel with 16pF±10pF | |
| Probe Attenuation Factors | 1X, 10X, 100X, 1000X, 10000X | |
| Max. input Voltage | 400V (DC+AC, PK-PK, 1 MΩ input impedance) (10:1 probe attenuation) | |
| Bandwidth Limit (typical) | 20 MHz | |
| Horizontal Scale | 5 ns/div - 1000 s/div, step by 1 - 2 - 5 | |
| Vertical Sensitivity | 10 mV/div - 10 V/div | |
| Vertical Resolution | 8 bits | |
| Trigger Type | Edge | |
| Trigger Modes | Auto, Normal, Single | |
| Automatic Measurement | Period, Frequency, Mean, PK-PK, Max, Min | |
| Cursor Measurement | ΔV, ΔT, ΔT&ΔV between cursors | |
| Multimeter | ||
| Max. Resolution | 20,000 counts | |
| Testing Mode | DC voltage | 0.01 mV - 1000 V (±0.5% + 5) |
| AC voltage | 0.01 mV - 750 V (±0.8% + 5) | |
| DC current | 10 μA - 10 A (±0.8% + 2) | |
| AC current | 10 μA - 10 A (±1% + 5) | |
| Resistance | 0.01 Ω - 100 MΩ (±0.8% + 3) | |
| Capacitance | 1 pF - 2 mF (±3% + 10) | |
| Diode testing | 0-2 V | |
| Continuity | ||
| Input Impedance | 10 MΩ | |
| Max Input Voltage | AC 750 V, DC 1000 V | |
| Max Input Current | DC: 10 A; AC: 10 A | |
| Function Generator | ||
| Output frequency | Sine | 0.1 Hz - 25 MHz |
| Square | 0.1 Hz - 5 MHz | |
| Ramp | 0.1 Hz - 1 MHz | |
| Pulse | 0.1 Hz - 5 MHz | |
| Arbitrary waveform | 0.1 Hz - 5 MHz | |
| Sample rate | 125 MSa/s | |
| Channels | single channel | |
| Amplitude range | 20 mV - 5 V (high impedance) | |
| Record length | 8K | |
| Vertical resolution | 14 bit | |
| Output impedance | 50 Ω | |
| General Specifications | ||
| Display | 3.5" LCD | |
| Interface | USB Type-C | |
| Dimensions | 196 mm × 96 mm × 38 mm | |
| Weight | 600 g | |
User Manual
Download OWON HDS272S user manual.
Package Contents
- Digital Oscilloscope OWON HDS272S — 1 pc.
- Oscilloscope Measuring Probes — 1 set
- Multimeter Measuring Probes — 1 set
- USB Cable — 1 pc.
- Power Supply — 1 pc.
- Storage/Carrying Bag — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
