Overview
3 kg Warranty: 12 months
Compact 2-channel digital oscilloscope with 100 MHz bandwidth, 1 GS/s sampling rate, and 10K pts wavelength. Equipped with a large 8" LCD. Read more
Inform of price reduction
Description

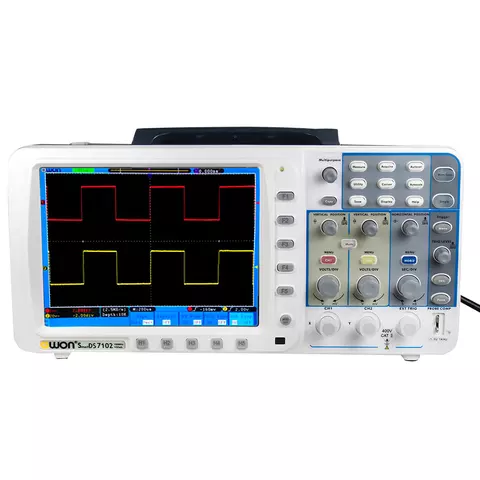

OWON SDS7102 is a compact 2-channel digital oscilloscope with 100 MHz bandwidth, 1 GS/s sample rate, and 10K pts wavelength. It is equipped with a large autoscale LCD, allowing you to view waveforms easily.
Features
- Light weight and small dimensions.
- Pass/Fail function.
- Autoscale function.
- Large 8-inch color LCD.
- 10K pts wavelength (each channel).
- SCPI supported.
- Recording and reproducing waveforms function.
- Communication Interface: USB2.0, USB storage, LAN, VGA.
Technical Specifications
| Bandwidth | 100 MHz |
| Real time sampling rate | 1 GS/s |
| Vertical resolution (A/D) | 8 bit (2 channels simultaneously) |
| Wavelength | 10K pts |
| Vertical sensitivity | 2 mV/div ～ 10 V/div |
| Horizontal timebase range | from 1 ns to 100 s |
| Rise time | ≤3.5 ns |
| Input impedance | 1 MΩ ± 2%, in parallel with 10 pF ± 5 pF |
| Max. input voltage | 400 V (PK-PK) (DC + AC PK-PK) |
| Math | ＋, －, ×, ÷, FFT |
| Waveform storage | 15 |
| Interfaces | USB2.0, USB storage, LAN, VGA |
| Display | 8" (21 cm) 800×600 LCD |
| Power consumption | 100-240 V AC RMS, 50/60 Hz, CAT II |
| Energy consumption | up to 18 W |
| Dimensions | 340 × 155 × 70 mm |
| Weight | 1.8 kg |
Package Contents
- Digital Oscilloscope OWON SDS7102 — 1 pc.
- Probes — 2 pcs.
- Power Cord— 1 pc.
- User Manual — 1 pc.
- Warranty Card — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
