Digital Oscilloscope OWON TAO3102 WIFI
id: 915154
Digital Oscilloscope OWON TAO3102 WIFI
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
3.2 kg Warranty: 12 months

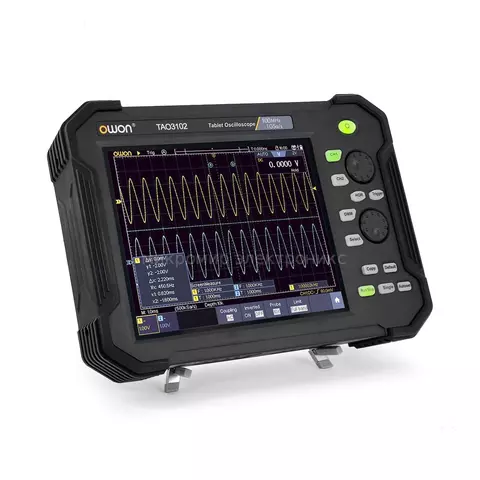

Dual-channel oscilloscope with a bandwidth of 100 MHz, sampling rate of 1 GS/s, memory depth of 40 MB, an 8-inch 800 × 600 touchscreen LCD display, and WiFi module Read more
Inform of price reduction
Description
OWON TAO3102 WIFI is a two-channel tablet-type digital oscilloscope with a bandwidth of 100 MHz, a sample rate of 1 GS/s, and a memory depth of 40 MB. It features a large 800 × 600 color touchscreen 8-inch LCD display and a built-in WiFi module. The oscilloscope includes a built-in frequency counter and a digital multimeter with automatic range selection, capable of measuring voltage, current, resistance, and diode testing.
Features
- Dual-channel oscilloscope + multimeter
- Bandwidth: 100 MHz; Sample rate: 1 GS/s
- 8-bit vertical resolution (A/D)
- Record length: 40 MB; Waveform refresh rate: 45,000 wfms/s
- Low background noise level
- 800 × 600 high resolution 8-inch multi-touch color LCD display
- Intuitive user interface
- SCPI and LabVIEW supported
- Decoding capabilities: I2C, SPI, RS232, and CAN (optional)
- Communication interfaces: USB-host, USB-device, PictBridge USB port, LAN
- WiFi module and WiFi support software pack to enable data exchange
Technical Specifications
| Oscilloscope | |
|---|---|
| Bandwidth | 100 MHz |
| Sample rate | 1 GS/s |
| Vertical resolution (A/D) | 8 bit |
| Rise time | ≤3.5 ns |
| Record length | 40 MB |
| Waveform refresh rate | 45,000 wfms/s |
| Horizontal scale | 1 ns/div – 1000 s/div, step 1 - 2 - 5 |
| Channels | 4 |
| Display | 8-inch color LCD, 800 × 600, multi-touch |
| Input impedance | 1 MΩ ± 2%, parallel with 15 pF ± 5 pF |
| Maximum input voltage | 1 MΩ ≤ 300 Vrms |
| DC gain accuracy | ±3% |
| Probe attenuation factor | 0.001X - 1000X, step 1 - 2 - 5 |
| Time base accuracy | Maximum ±10 ppm |
| Input coupling | DC, AC, GND |
| Vertical sensitivity | 1 mV/div - 10 V/div (per channel) |
| Trigger types | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logics, I2C, SPI, RS232, CAN (option) |
| Bus decoding (optional) | I2C, SPI, RS232, CAN |
| Trigger modes | Auto, Normal, Single |
| Automatic measurements | Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area |
| Mathematical functions | addition (＋), subtraction (－), multiplication (×), division (÷), FFT, FFTrms, integration, differentiation, square root, user-defined functions, filter options (low-pass, high-pass, band-pass, band-reject) |
| Waveform storage | 100 waveforms |
| Communication interfaces | USB-host, USB-device, USB port for PictBridge, LAN, WIFI |
| Frequency counter | available |
| Battery | 7.4 V, 8000 mAh, 5 hrs of operation |
| Dimensions | 270 × 191 × 48 mm |
| Weight | c. 1.7 kg |
| Built-In Multimeter | |
| Display | 4 ½ count |
| Voltage | mV: 20,000 mV - 200,00 mV |
| DCV: 2.0000–1000.0 V | |
| ACV: 2.0000–750.0 V | |
| Current | ACD: 10.00 A |
| ACA: 10.00 A | |
| Resistance | 200.00 Ω - 100.00 MΩ |
| Diode testing | available |
| Auto ranging | available |
User Guide
Download OWON TAO3102 WIFI User Guide
Package Contents
- OWON TAO3102 WIFI digital oscilloscope — 1 pc.
- Probes — 4 pcs.
- Probe adjuster — 1 pc.
- Power cable — 1 pc.
- Adapter — 1 pc.
- USB cable — 1 pc.
- Stand — 1 pc.
- BNC adapter — 1 pc.
- Software CD — 1 pc.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
