Digital Oscilloscope OWON XDS2102A VDA
id: 915152
3 kg Warranty: 12 months
Desktop dual-channel digital oscilloscope with a bandwidth of 100 MHz, sampling rate of 1 GS/s, memory depth of 20 MB, vertical resolution of 12 bits, and a VGA connector Read more
Inform of price reduction

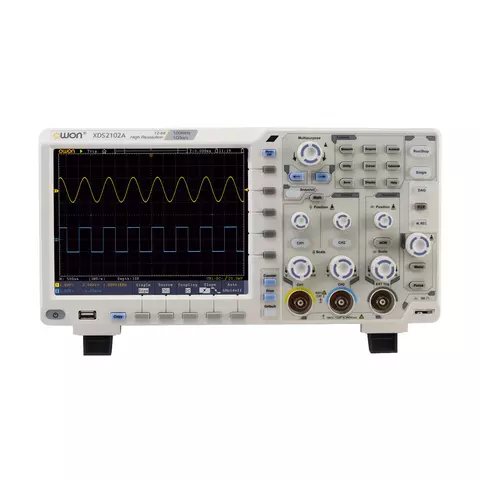

OWON XDS2102A VDA is a desktop dual-channel digital oscilloscope with 100 MHz bandwidth and 1 GSa/s sampling rate. Advantages of the device include compact size, high 12-bit resolution ADC, and substantial 20 MB memory capacity. The oscilloscope is equipped with a large display for easy use and a VGA connector for connecting to a monitor.
Features
- Two channels and external trigger input
- SCPI supported
- High waveform capture speed: 55000 wfms/s
- Low background noise
- Communication interfaces: USB, LAN, Wi-Fi (option)
- Capture and decoding of RS232, SPI, I2C, CAN
- VGA connector to transmit analog video signals to an external display
Technical Specifications
Bandwidth | 100 MHz |
Horizontal scale | 2ns/div - 1000s/div |
Channels | 2 + 1 (external) |
Vertical sensitivity | 1 mV/div - 10 V/div |
Rise time | ≤3.5ns |
DC gain accuracy | ±1.5% |
Vertical resolution | 12 bits |
Sweep Speed | 2 ns - 1000 s |
Input | |
Input impedance | 1MΩ ± 2%, in parallel with 15pF ± 5pF |
Input coupling | AC, DC, GND |
Max input voltage | 1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms |
Passive probes | x1; x10 |
Probe attenuation factor | 0.001X - 1000X |
Trigger system | |
Trigger mode | Auto, Normal, Single |
Trigger type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, option: I2C, SPI, RS232, CAN + decoding I2C, SPI, RS232 and CAN |
Edge trigger source | CH1, CH2, External, External / 5, AC Power Line |
Video trigger | |
Sampling type | Real-time |
Sample rate | 1 GSa/s - 8 bits, 500 MSa/s - 12 bits |
Waveform storage | 100 (internal memory) |
Wavelength | 20 Mpts |
Sample mode | Direct Sampling, Peak Recording, Averaging |
Form formation mode | Vector, Point |
Interpolation | sin(x)/x |
Measurement and Mathematical Treatment System | |
Automatic measurements | Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count |
Cursor measurements | △V, and △T between cursors, △V and △T between cursors, and auto- cursors |
Math functions | Addition, Subtraction, Multiplication, Division, FFT |
General Specifications | |
Display type | 8" color LCD |
Display resolution | 800 × 600 |
Interface | USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, VGA |
Power | 100-240 V, 45-440 Hz, <15 W |
Dimensions | 340 × 177 × 90 mm |
Weight | 2.6 kg |
Package Contents
- Digital oscilloscope OWON XDS2102A VDA — 1 pc.
- Probes — 2 pcs.
- Power cord — 1 pc.
- USB cable — 1 pc.
- Probe adjust — 1 pc.
- Software, CD-ROM — 1 pc.
- User manual — 1 pc.
