Digital Oscilloscope RIGOL DHO804
id: 915162
Digital Oscilloscope RIGOL DHO804
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 473.90
Add to cart
Overview
New
3 kg
Availability in stock:
HK
Warranty: 36 months 4-channel oscilloscope with a 70 MHz bandwidth, 1.25 GSa/s sample rate, 12-bit A/D converter, 25 Mpts memory depth, and a 17.8 cm touch display with 1024x600 pixels. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Your gift (list of the available gifts depends on the amount of your order)
Description

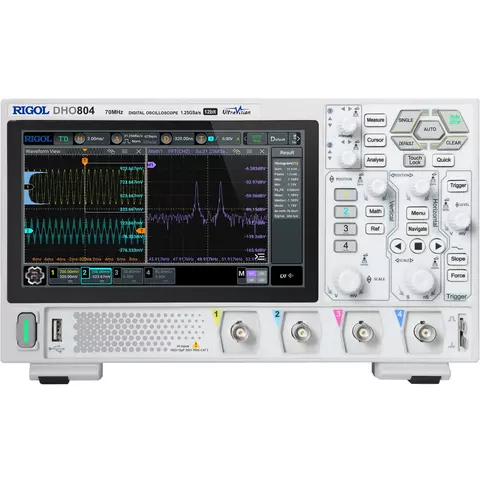

RIGOL DHO804 is a high-performance four-channel oscilloscope with a 70 MHz bandwidth, 1.25 GSa/s sample rate, a 12-bit A/D converter, low noise, 25 Mpts memory depth, and a 17.8 cm touch display (1024x600 pixels). It features a capture rate of up to 1,000,000 wfms/s (in UltraAcquire Mode). Serial decoders for I²C, SPI, and RS232/UART are already included!
Features
- 12-bit ADC: high resolution and offset; low noise signal path for more accurate measurements.
- 12-bit vertical resolution with 4096 levels of quantization, offering 16 times the quantization levels of 8-bit, adept at handling small signal testing.
- 7-inch high-definition touchscreen for more convenient human-machine interaction.
- 1,000,000 wfms/s acquisition rate; find signal anomalies quickly. Smooth workflows — even with measurements, spectrum, math, or long acquisitions.
- Designed with a Type-C power interface, so it can be powered by just a portable power source, enabling on-site testing.

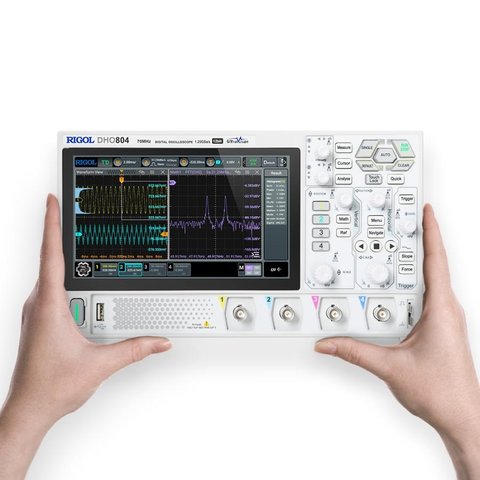

- Features a compact form factor and also supports standard monitor stand usage, effectively reducing the desktop footprint and providing you with more ample workspace.

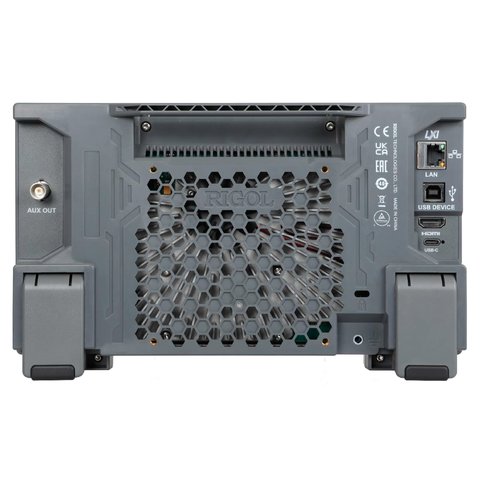

- Comes standard with USB, LAN, and HDMI output interfaces, supporting remote control and conference presentations, making collaboration more convenient.
Technical Specifications
| Model | DHO802 | DHO804 | DHO812 | DHO814 |
| Bandwidth | 70 MHz | 70 MHz | 100 MHz | 100 MHz |
| Channel | 2 | 4 | 2 | 4 |
| Rise time (typ.) | ≤ 5 ns | ≤ 5 ns | ≤ 3.5 ns | ≤ 3.5 ns |
| Sample rate | 1 channel with 1.25 GSa/s 2 channels with each 625 MSa/s 4 channels with each 312.5 MSa/s |
|||
| Waveform capture rate | 30 000 wfms/s (Vector Mode) 1 000 000 wfms/s (UltraAcquire Mode) |
|||
| Memory depth (standard) | 1 channel with 25 Mpts 2 channels with each 10 Mpts 4 channels with each 1 Mpts |
|||
| Vertical Resolution | 12 bits | |||
| Display | 7-inch capacitive touchscreen LCD, 1024 × 600 | |||
| Power Supply Interface | Type-C | |||
| Power Voltage | DC 12 V, 4 A | |||
| Power | max. 48 W (when connected to various interfaces, USB storage device, and active probes) | |||
| Dimensions | 265.35 mm (W) × 161.75 mm (H) × 77.38 mm (D) | |||
| Weight | 1.78 kg (package excluded) / 2.78 kg (package included) | |||
User Manual
Download RIGOL DHO804 user manual.
Datasheet
Download RIGOL DHO804 Datasheet.
Package Contents
- Digital Oscilloscope RIGOL DHO804 — 1 pc.
- Passive Probe PVP3150 (150 MHz) — 4 pcs.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
