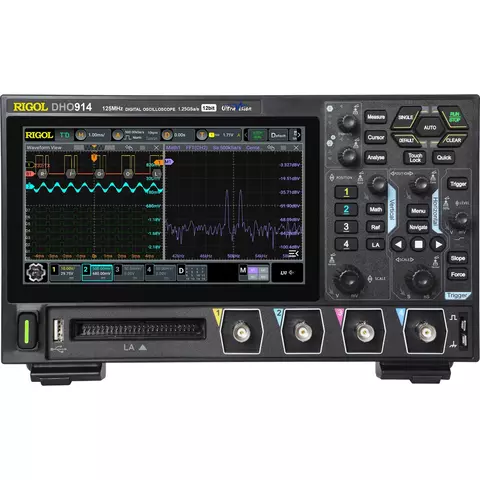

Digital Oscilloscope RIGOL DHO914
id: 915164
Digital Oscilloscope RIGOL DHO914
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 693.33
Add to cart
Overview
New
3 kg
Availability in stock:
HK
Warranty: 36 months 4-channel oscilloscope with a 125 MHz bandwidth, 1.25 GSa/s sample rate, 12-bit A/D converter, 50 Mpts memory depth, and a 17.8 cm touch display (1024x600 pixels) Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Your gift (list of the available gifts depends on the amount of your order)
Description

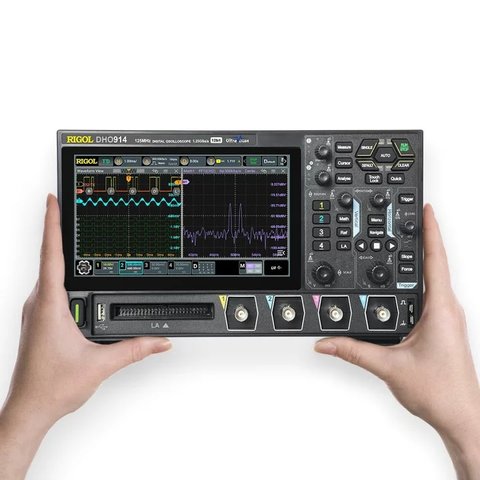

RIGOL DHO914 is a compact, high-performance, and cost-effective 4-channel digital oscilloscope. Despite its small size, the device boasts excellent performance, including a maximum sampling rate of 1.25 GSa/s, a capture rate of 1,000,000 waveforms per second (Ultra Acquire mode), and a maximum storage memory of 50 Mpts, ensuring accurate and detailed signal analysis with high vertical resolution of 12 bits and ultra-low noise.
The USB Type-C power connector provides versatile power options, allowing you to power the instrument using both a standard power adapter and a power bank, enabling convenient field measurements.
Features
- Ultra-low noise floor
- Up to 12 bits resolution
- Max. analog bandwidth of 125 MHz, 4 analog channels
- 16 digital channels (optional RIGOL PLA2216 16-channel logic probe)
- Max. real-time sample rate of 1.25 GSa/s
- Max. memory depth of 50 Mpts
- Record and playback up to 500,000 waveforms
- Vertical sensitivity range: 200 μV/div to 10 V/div
- Max. capture rate of 1,000,000 waveforms per second (in UltraAcquire mode)
- Digital phosphor display with real-time 256-level intensity grading
- Integration of various mathematical operations, powerful FFT analysis, peak detection functions, etc.
- Waveform search and navigation function for faster debugging of signal anomalies
- 7" (1024x600) capacitive multi-touch screen
- Brand new Flex Knob for a user-friendly experience

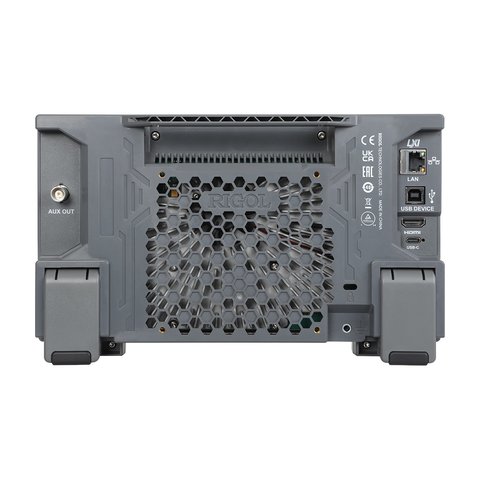

- USB Device & Host, LAN, and HDMI interfaces
- Novel and delicate industrial design for easy operation
- Unique online upgrade capability
Technical Specifications
| Model | DHO914 | DHO914S | DHO924 | DHO924S |
|---|---|---|---|---|
| Analog Bandwidth | 125 MHz | 250 MHz | ||
| Rise Time | ≤2.8 ns | ≤1.4 ns | ||
| Bode Plot and AFG Function | - | ✓ | - | ✓ |
| No. of Channels | 4 input analog channels | |||
| Max. Waveform Capture Rate | 30,000 wfms/s (Vector Mode) 1,000,000 wfms/s (UltraAcquire Mode) |
|||
| Sample Rate | 1.25 GSa/s | |||
| Max. Memory Depth | 50 Mpts | |||
| Vertical Resolution | 12 bits | |||
| Peak Detection | capture 1.6 ns glitches | |||
| Display | 7'' capacitive touchscreen LCD, 1024 × 600 | |||
| Power Voltage | DC 12 V, 4 A | |||
| Power | max. 48 W (when connected to various interfaces, USB storage device, and active probes) | |||
| Dimensions | 265.35 mm (W) × 161.75 mm (H) × 77.38 mm (D) | |||
| Weight | 1.78 kg (package excluded) / 2.78 kg (package included) | |||
User Manual
Download RIGOL DHO914 user manual.
Datasheet
Download RIGOL DHO914 datasheet.
Package Contents
- Digital Oscilloscope RIGOL DHO914 — 1 pc.
- Passive Probe PVP3150 (150 MHz) — 4 pcs.
- Power Cord – 1 pc.
- USB Cable – 1 pc.
- User Manual – 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
