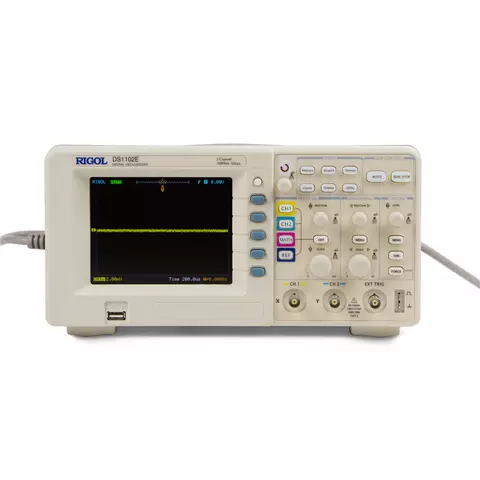

Digital Oscilloscope RIGOL DS1102E
id: 811977
Digital Oscilloscope RIGOL DS1102E
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 449.00
Contact
sales team
sales team
Overview
Video
Video
Video
Video
7.1 kg 110, 220 V Warranty: 36 months
2 channels. 100 MHz bandwidth. 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent sample rate. 1 Mpts memory depth. Read more
Buy wholesale and save
Inform of price reduction
You may also like
+ Gift
Add to wishlist
ID: 894828
Digital Oscilloscope RIGOL DS1202Z-E
USD 426.66
Add to wishlist
Add to cart
Dual-channel digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate.
Availability in stock:
HK
ID: 894828 7.5 kg 110, 220
Bestseller
New
+ Gift
Add to wishlist
ID: 870200
Super Phosphor Oscilloscope SIGLENT SDS1202X-E
USD 399.00
Add to wishlist
Add to cart
Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock:
HK
ID: 870200 6 kg 110, 220
+ Gift
Add to wishlist
ID: 898512
Digital Oscilloscope SIGLENT SDS1104X-U
USD 419.00
Add to wishlist
Add to cart
4-channel digital oscilloscope with 100 MHz bandwidth, up to 1 GSa/s real-time sampling rate, and up to 14 Mpts record length.
Availability in stock:
HK
ID: 898512 6.5 kg
Description
RIGOL DS1102E is a 100 MHz dual-channel digital oscilloscope with equivalent-time sample rate of 25 GSa/s. Excellent quality at truly remarkable price! As a USB oscilloscope, DS1052E can store images to external data sources and print to PictBridge compatible printers.
- 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent-time sample rate
- 1Mpts long Memory Depth
- 100 MHz Bandwidth
- Compact design: 303mm x 154mm x 133mm (WxHxD)
- 64 k TFT color LCD, bright and vivid waveform display
- Advanced trigger modes: Edge, Video, Pulse Width, Slope, Alternate
- Adjustable bigger sensitivity: Effectively filter noise from bigger signal and avoid false trigger
- 20 automatic measurements
- Cursor measurements: Manual, Track and Auto Measure modes
- 10 waveforms, 10 setups, BMP and CSV storage
- Math functions:+, -, x, FFT, Invert
- Special digital filter and waveform recorder
- Built-in hardware frequency counter
- Standard interfaces: USB Device, USB Host, RS-232
- Standard configuration: PassIFail test, effectively avoid electromagnetic interference by using photoelectricity-isolation
- Multi-language user interface, built-in help system
RIGOL DS1102E Specification
| Model | DS1102E | DS1052E | ||
| Bandwidth | 100 MHz | 50 MHz | ||
| Channels | Dual Channels + External Trigger | |||
| Real-time Sample Rate | 1GS/s | |||
| Equivalent Sample Rate | 25 GSa/s | 10 GSa/s | ||
| Memory Depth | Channel Mode | Sample Rate | Normal Memory | Long Memory |
| Single Channel | 1 GS/s | 16 kpts | N/A | |
| Single Channel | 500MS/s Or lower | 16 kpts | 1 Mpts | |
| Dual Channel | 500MS/s Or lower | 8 kpts | 512 kpts | |
| Rise Time | 3.5ns | 7ns | ||
| Time Base Range | 2 ns/div to 50 s/div | 5 ns/div to 50 s/div | ||
| Trigger Modes | Edge, Video, Pulse Width, Slope, Alternative | |||
| Input Impedance | 1 M? || 15 pF | |||
| Vertical Sensitivity | 2 mV/div to 10 V/div | |||
| Vertical Resolution | 8 bits | |||
| Input Coupling | DC, AC, Ground | |||
| Maximum Input Voltage | 400 V (DC + AC peak) | |||
| Roll Range | 500 ms/div to 50 s/div | |||
| Cursor Measurements | Manual, Track and Auto Measure modes | |||
| Math | Add, Subtract, Multiply, FFT | |||
| Storage | USB Device, USB Host, RS-232, P/F Out (Isolated) | |||
| Display | 5.6"TFT (64K, Color LCD), 320 x 234 | |||
| Power | Worldwide Use, 100 – 240 V / 50 VA Max | |||
| Weight | 2.4 kg | |||
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Data Sheet
Download RIGOL DS1102E Data Sheet.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
