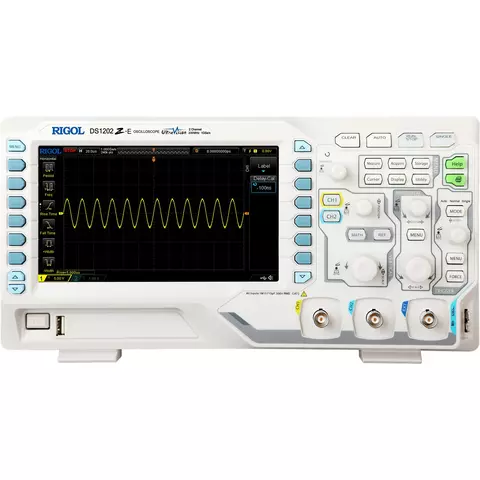

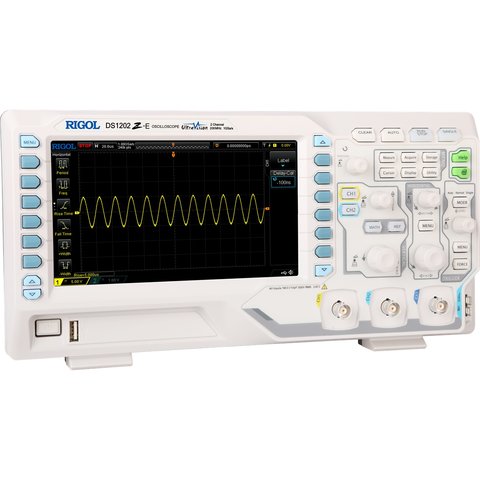

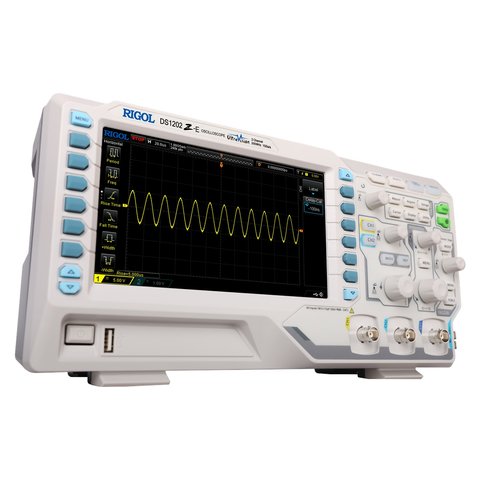

Digital Oscilloscope RIGOL DS1202Z-E
id: 894828
7.5 kg 110, 220 V
Availability in stock:
HK
Warranty: 36 months Dual-channel digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Your gift (list of the available gifts depends on the amount of your order)
RIGOL DS1202Z-E is a high quality dual-channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 200 MHz. The device provides up to 30 000 wfms/s waveform acquisition rate, and 7-inch color oscilloscope's LCD provides a bright and clear waveforms display.
RIGOL DS1202Z-E digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
Features
- Analog channel bandwidth: 200 MHz.
- 2 analog channels.
- Real-time sample rate up to 1 GSa/s.
- Memory depth up to 24 Mpts.
- Up to 30,000 wfms/s waveform capture rate.
- Up to 60,000 frames hardware real-time waveform recording and playback functions.
- Innovative "UltraVision" technology.
- Various trigger and bus decoding functions.
- Low noise floor, vertical scale range: 1 mV/div to 10 V/div.

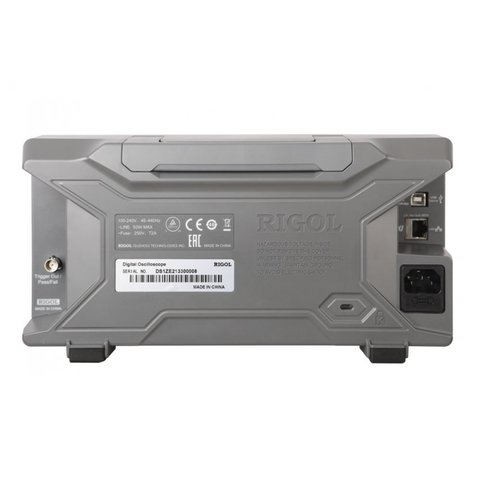

- Various interfaces: USB Host&Device, LAN (LXI), AUX.
- Compact size, light weight, easy to use.
- 7 inch WVGA (800x480) TFT LCD, intensity graded color display.
Technical Specifications
Bandwidth | 200 MHz |
Channels | 2 |
Real-time Sample Rate | 1 GSa/s (single-channel), 500 MSa/s (dual-channel) |
Memory Depth | standard 24 Mpts (single-channel), 12 Mpts (dual-channel) |
Waveform Capture Rate | 30 000 wfms/s |
Vertical Sensitivity Range | 1 mV/div - 10 V/div |
Offset Range | 1 mV/div to 499 mV/div: ±2 V; 500 mV/div to 10 V/div: ±100 V |
Vertical Resolution | 8 bit |
Math | A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, Filter |
Output Voltage | ~ 3 V, peak-peak |
Frequency | 1 kHz |
Power | 50 W (max.) |
Power Voltage | 100 V-240 V, 45 Hz-440 Hz |
Cooling Method | Fan |
Temperature Range | Operation: 0°C to +50°C Non-operation: -40°C to +60°C |
Display | 7" color LCD (800×480) |
Weight | Without Package 2.9 kg ± 0.2 kg; With Package 3.5 kg ± 0.5 kg |
Dimensions | 313.1 mm × 160.8 mm × 122.4 mm |
Video
User Manual
Download RIGOL DS1202Z-E User Manual.
Programming Manual
Download RIGOL DS1202Z-E Programming Manual.
Service Manual
Download RIGOL DS1202Z-E Service Manual.
Datasheet
Download RIGOL DS1202Z-E Datasheet.

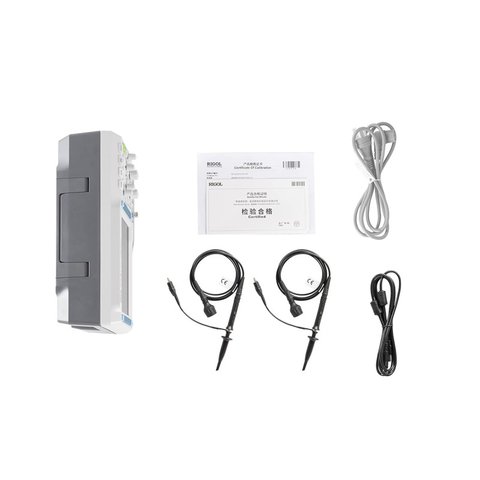

Package Contents
- Digital Oscilloscope RIGOL DS1202Z-E — 1 pc.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- Passive Probes — 2 pcs.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
