Digital Oscilloscope SIGLENT SDS2104X Plus
id: 893076
Bestseller
9.5 kg
Availability in stock:
HK
Warranty: 36 months 4 channel Super Phosphor Oscilloscop with a 100 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Your gift (list of the available gifts depends on the amount of your order)
Frequently bought together
Promo offer! Buy this oscilloscope till 31.03.2021 and get FREE software upgrades:

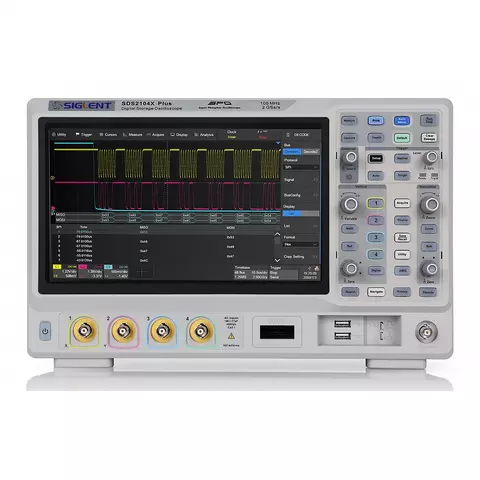

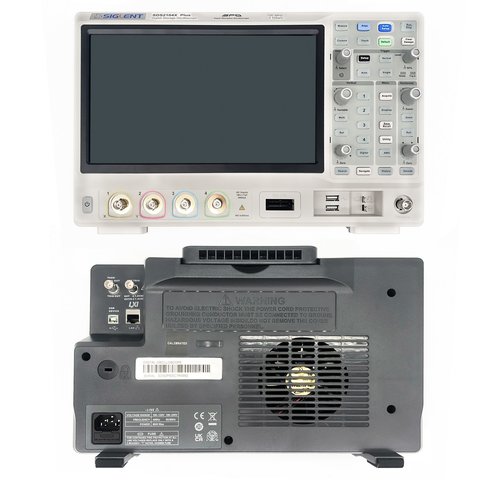

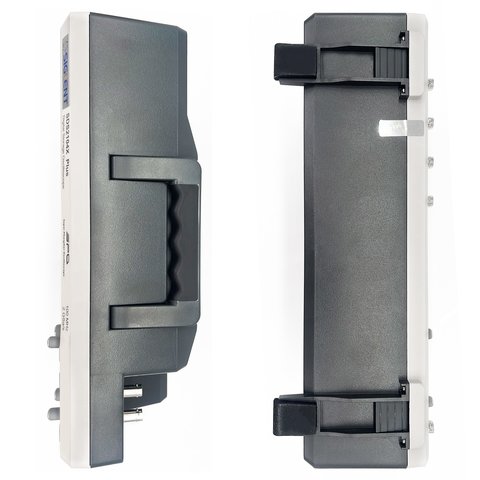

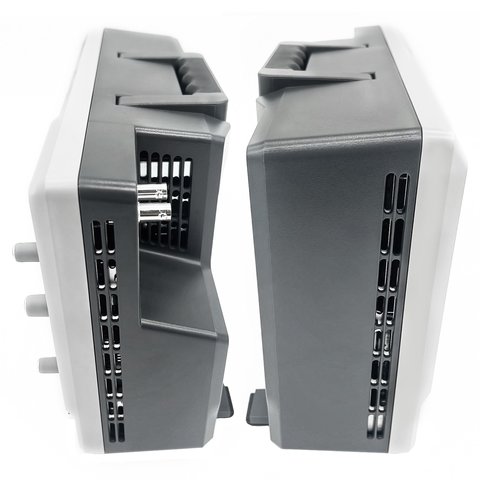

SIGLENT SDS2104X Plus is a desktop 4-channel Super Phosphor Oscilloscop with a 100 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.
The Siglent SDS2104X Plus employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter.
Features
- New generation of SPO (Super Phosphor Oscilloscope) technology.
- Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode).
- Supports 256-level intensity grading and color temperature display modes.
- DigitaI trigger system.
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported).
- SeriaI bus triggering and decoder, supports l2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, l2S, and MIL-STD- 1553B (optional) protocols.
- Low background noise, features 0.5 mV/div to 10 V/div voltage scales.
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user.
- History waveform record (History) function for up to 90,000 triggered waveforms (frames).
- Automatic measurement function on 50+ parameters, supports statistics with histogram.
- Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter.
- Math measurement (2 Mpts FFT, +, -, x, ~, d/dt, f dt,f, average, ERES, and formula editor).
- Multiple interfaces: USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL).
- External mouse and keyboard support.
- Built-in web server supports remote control over the LAN port using a web browser.
- A waveform generator, a logic analyzer module and power analysis option for ripple and power quality measurements (optional).
Technical Specifications
SDS2102X Plus | SDS2104X Plus | SDS2204X Plus | SDS2354X Plus | |
---|---|---|---|---|
Bandwidth | 100 MHz | 100 MHz | 200 MHz | 350 MHz |
Analog channels | 2 + EXT | 4 + EXT | 4 + EXT | 4 + EXT |
Sample rate | 2 GSa/s (interleaving mode), 1 GSa/s (non-interleaving mode) | |||
Memory depth | 200 Mpts (interleaving mode), 100 Mpts (non-interleaving mode) | |||
Waveform capture rate | 120 000 wfm/s (normal mode), 500 000 wfm/s (sequence mode) | |||
Trigger type | Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial | |||
Vertical Resolution | 8 bit, 10-bit mode (with typical 100 MHz bandwidth) | |||
Serial triggering and decoding | standard: I2C, SPI, UART, CAN, LIN optional: CAN FD, FlexRay, I2C, MIL-STD-1553B |
|||
Math | 2 traces 2 Mpts FFT, +, -, ×, ÷, d/dt, ∫dt, √, average, ERES, and formula editor |
|||
Automatic measurements | 50+ | |||
Interface | USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL) | |||
Display | 10.1" TFT-LCD with capacitive touch screen 1024 × 600 | |||
Dimensions | 352 × 224 × 111 mm | |||
Weight | net weight: 3.9 kg gross weight: 5.4 kg |
Video
User Manual
Download SIGLENT SDS2104X Plus user manual.
Datasheet
Download SIGLENT SDS2104X Plus datasheet.
Package Contents

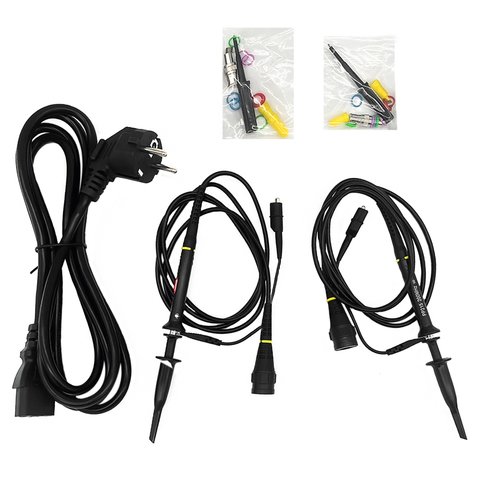

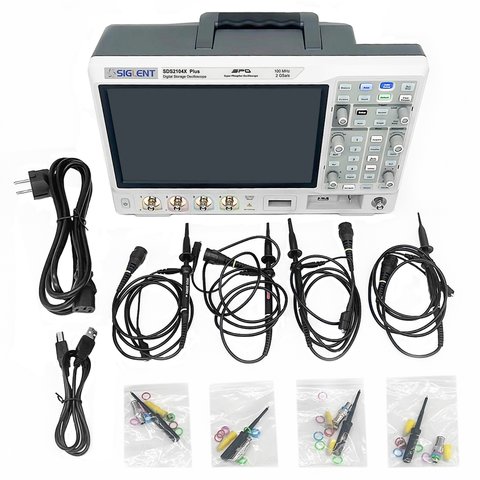

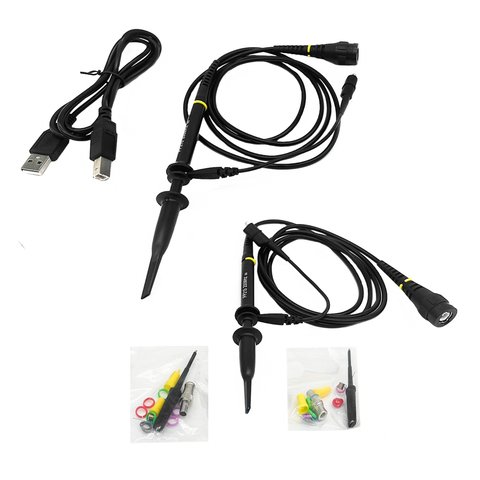

- Digital Oscilloscope SIGLENT SDS2104X Plus — 1 pc.
- USB Cable — 1 pc.
- Passive Probe — 4 pcs.
- Power Cord — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
