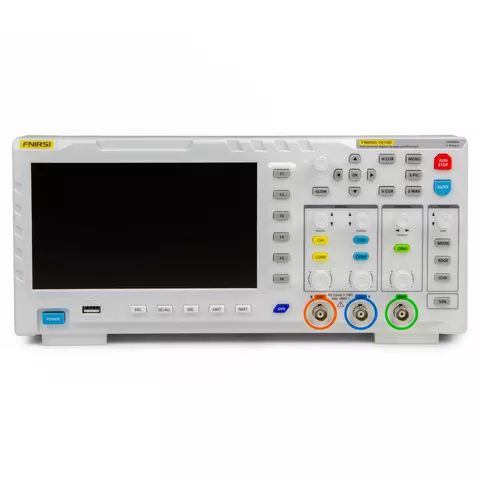

Digital Oscilloscope / Signal Generator FNIRSI 1014D
id: 902549
2.5 kg Warranty: 6 months
Dual-channel oscilloscope with a built-in signal generator. Features 100 MHz bandwidth, 1 GSa/s sampling rate, 240 KB storage depth, 7'-inch 800x480 TFT screen. Read more
Buy wholesale and save
Inform of price reduction
You may also like

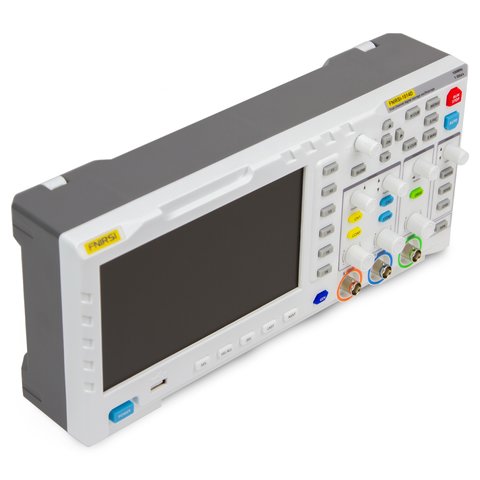

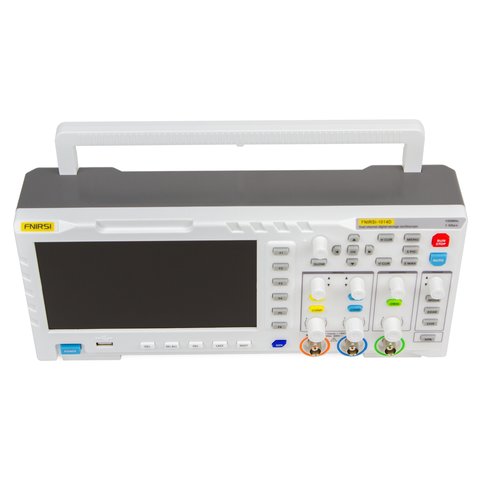

FNIRSI 1014D is a 100 MHz bandwidth dual-channel oscilloscope with a built-in waveform generator. The oscilloscope features a high real-time sampling rate of 1 GS/s, 240 kB memory, a large 7-inch display with 800 × 480 resolution, and advanced features for capturing, analyzing, and recording measurement results. Besides, the device features high voltage protection, which ensures safe operation with signals up to 400 V. Built-in generator generates 14 types of signals, voltage resolution is 8 bit, voltage 5 Vpeak-peak. FNIRSI 1014D is equipped with a USB interface to connect to the computer. This oscilloscope is designed for diagnostics and tuning of radio and electronic equipment.
Features
- Compact and functional oscilloscope.
- Large 7-inch TFT display (800 × 480 pixels).
- High voltage protection: built-in module provides protection up to 400 V.
- Built-in 1 GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
- Automatic measurement function.
- Roll function.
- Lissajous figures graphic display function.
- Screen brightness adjustment function.

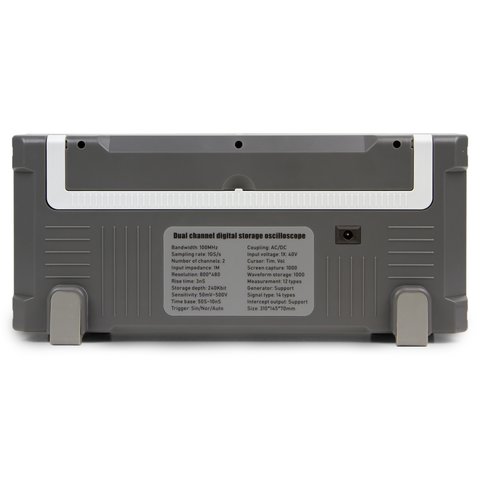

Technical Specifications

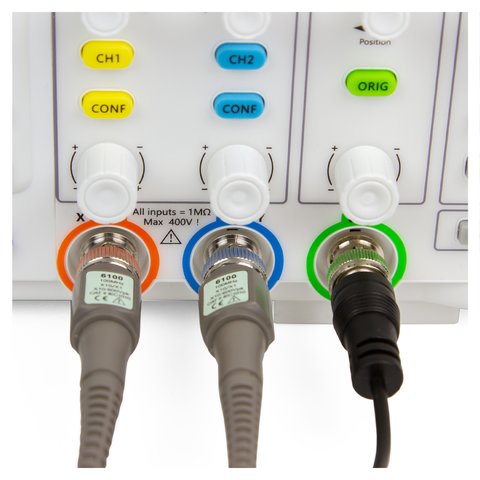

Oscilloscope | |
---|---|
Channels | 2 |
Bandwidth | 100 MHz |
Real-time Sample Rate | 1 GS/s |
Storage Depth | 240 kB |
Input | |
Input Coupling | DC, AC |
Input Impedance | 1 MΩ |
Probe Attenuator | 1 X, 10 X |
Highest Test Voltage | 40 V (1 X), 400 V (10 X) |
Horizontal System | |
Time Base Scale | 50 s/div - 10 ns/div |
Vertical System | |
Time Base Scale | 50 mV/div - 500 V/div |
Rise Time | < 3 ns |
Vertical Resolution | 8 bit |
Voltage Accuracy | ± 5% |
Frequency Accuracy | ± 0,01% |
Trigger System | |
Trigger Mode | Auto, Normal, Single |
Trigger Type | Rising/Falling edge |
Measuring System | |
Automatic Measurements | VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Period |
Cursor Measurements | XY, Y trigger |
Math | FFT |
Signal Generator | |
Waveform | 14 types |
Bandwidth | 10 MHz (sine), resolution 1 Hz |
Vertical Resolution | 14 bit |
General Specifications | |
Display | color TFT display, 7 inches, 800 × 480 pixels |
Interface | USB (5 V / 2 A) |
Built-in Memory | 1 GB |
Waveform Storage | 1000 pictures + 1000 waveforms |
Dimensions | 310 mm × 145 mm × 70 mm |
Net Weight | 1500 g |
Gross Weight | 1632 g |
Video

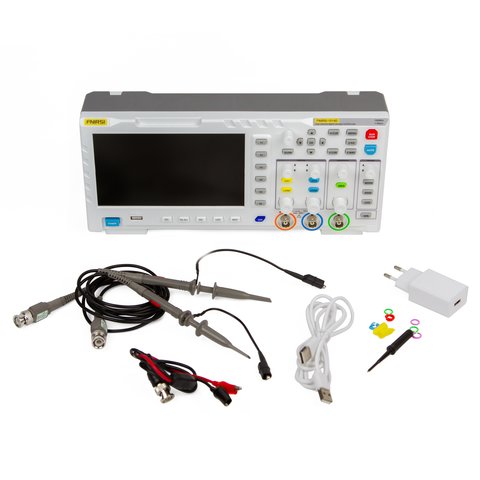

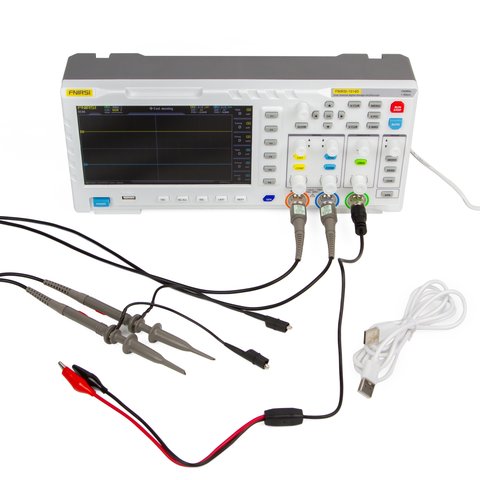

Package Contents
- Digital Oscilloscope / Signal Generator FNIRSI 1014D — 1 pc.
- Oscilloscope Probe — 2 pcs.
- USB Cable — 1 pc.
- Power Cord — 1 pc.
- BNC Crocodile Clip — 1 pc.
- User Manual — 1 pc.
