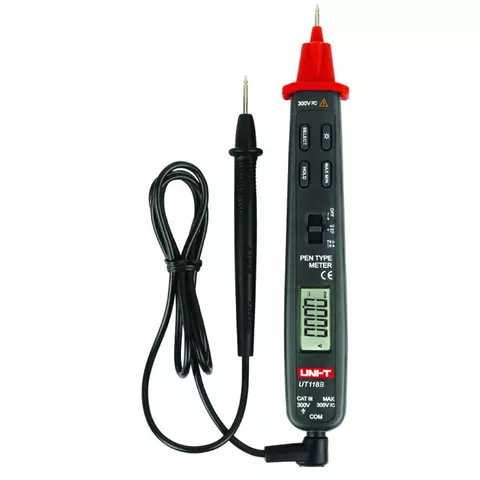

Digital Pen Type Multimeter UNI-T UT118B
id: 845322
0.15 kg Warranty: 24 months
Digital pen type multimeter for measuring AC/DC voltage, resistance, capacitance, continuity and diode tests. Read more
Buy wholesale and save
Inform of price reduction
UNI-T UT118B Pen Type Multimeter is a digital multimeter which can measure AC/DC voltage, resistance, capacitance and can be used for continuity and diode tests.
Features
- Sleep mode.
- Low battery indication.
- Data hold function.
- Max/Min mode.
- LCD display with backlight.
- Multiple measurements:
- AC voltage.
- DC voltage.
- Resistance.
- Capacitance.
- Diode testing.
- Continuity test.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
User Manual
Download UNI-T UT118B Pen Type Multimeter User Manual.
Technical Specifications
Function | Range | Accuracy | |
---|---|---|---|
SCAN mode | AUTO mode | ||
DC Voltage | 3 V / 30 V / 300 V | 3 V / 30 V / 300 V | ±(1%+ 3) |
AC Voltage | 3 V / 30 V / 300 V | 3 V / 30 V / 300 V | ±(1%+ 4) |
Resistance | 300 Ω/ 3 kΩ/ 30 kΩ/ 300 kΩ/ 3 MΩ | 300 Ω/ 3 kΩ/ 30 kΩ/ 300 kΩ/ 3 MΩ/ 30 MΩ | ±(1%+ 3) |
Capacitance | 3 nF/ 30 nF/ 300 nF/ 3 μF/ 30 μF/ 300 μF | 3 nF/ 30 nF/ 300 nF/ 3 μF/ 30 μF/ 300 μF/ 3 mF | ±(3%+ 5) |
General Characteristics | |||
Power | 3 V Li-MnO2 Button Cell Battery | ||
Display | LCD, 28 × 14 mm | ||
Size | 20 × 27 × 182 mm | ||
Weight | 90 g |
Package Contents
- Multimeter UNI-T UT118B (1 pc.)
- Test lead (1 pc.)
- User manual (1 pc.)
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
