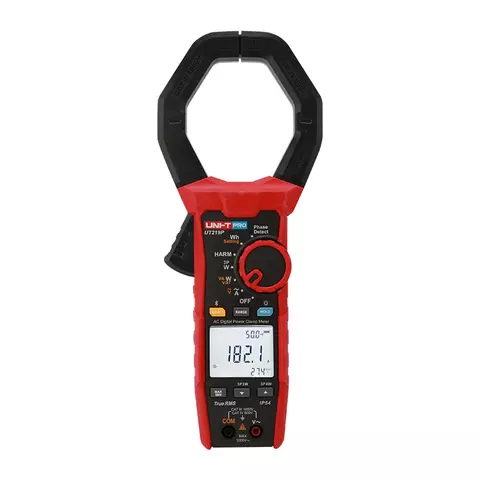

Digital Power Clamp Meter UNI-T UT219P
sales team
UNI-T UT219P is an intelligent, portable, and stable clamp meter designed for measuring AC voltage, AC current, active power, apparent power, reactive power, power factor, phase angle, power quality, frequency, phase sequence, total harmonic distortion, harmonic components, and more.
It offers various measurement modes, including single-phase, three-phase three-wire, and three-phase four-wire. Equipped with Bluetooth functionality, measurement data can be conveniently monitored and recorded using a mobile phone or tablet, and professional reports can be generated.
Its user-friendly operation, stable performance, and precise measurement accuracy make the UT219P suitable for a wide range of applications, including maintenance in solar power plants, motor manufacturing, and power/harmonic measurements for electrical equipment and residential distribution cabinets.
Features
- Basic measurement functions:
- True RMS;
- 1000A AC current;
- 1000V AC voltage;
- AC and DC PEAK measurement;
- three-phase power measurement (up to 3000kW);
- harmonic;
- THD;
- power factor;
- phase sequence;
- single phase power.
- Large pliers head (up to 75 mm diameter).
- Bluetooth 5.0.
- CAT III 1000V/CAT IV 600V.
- IP54.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC current | 1000 A | ±(1.5%+3) |
| AC voltage | 1000 V | ±(0.7%+3) |
| Power (single phase) | 1000 kW | ±(1.7%+5) |
| Power (3-phase & 3-wires) | 1732 kW | |
| Power (3-phase & 4-wires) | 3000 kW | |
| Power frequency | 15 Hz ~ 1000 Hz | ±(0.3%+3) |
| Phase angle (-180°~ 179.9°) | 15 Hz ~ 40 Hz | ±5° |
| 40 Hz ~ 70 Hz | ±3° | |
| 70 Hz ~ 1000 Hz | ±5° | |
| Power factor | -1 ~ 1 | based on the accuracy of the phase angle |
| General Specifications | ||
| Jaw opening | 75 mm | |
| Phase detection | √(80 V~1000 V) | |
| Positive and Negative | ||
| AC/DC PEAK measurement | √ | |
| Harmonic measurement | 32 times | |
| Display mode | LCD | |
| 4 kinds of results at the same time | ||
| Display count | 9999 | |
| Bluetooth app | √ | |
| True RMS | √ | |
| Overload indication | √ | |
| High voltage indication | √ | |
| High voltage overload warning | √ | |
| Low battery indication | √ | |
| Data hold | √ | |
| Auto power off | around 15 minutes | |
| Max/Min | √ | |
| Overvoltage category | CAT III 1000V/CAT IV 600V | |
| Certificate | CE, UKCA, cETLus | |
Video
User Manual
Download UNI-T UT219P User Manual.
Package Contents
- Digital Power Clamp Meter UNI-T UT219P — 1 pc.
- Test Leads (red, black) — 1 pair
- Alligator Clips (red, black) — 1 pair
- Test Probes (red, black) — 1 pair
- User Manual — 1 pc.
