Overview
Video
1.6 kg 220 V Warranty: 24 months
A digital scope multimeter for AC/DC current and voltage, resistance, capacitance, frequency, duty cycle measurements and for continuity and diode tests. Read more
Discontinued
Description
UNI-T UT81B digital scope multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, tests continuity and diodes.
Uni-T UT81B Digital Scope Multimeter Review
Features
- Functions:
- AC/DC current and voltage
- resistance
- capacitance
- frequency
- duty cycle
- continuity test (with buzzer)
- diode test
- Trigger types: free run/normal/single shot
- Memory: 10 screens and setups
- Contrast and bright setup
- Sleep mode
- Low battery indication
Video
Technical Specifications
| Display | 3¾ (3999) digit LCD, 60 × 60 mm | |
| DC voltage | Range | 400mV/4V/40V/400V/1000V |
| Accuracy | ±(0.8%+8) | |
| AC voltage | Range | 4V/40V/400V/750V |
| Accuracy | ±(1%+15) | |
| DC current | Range | 400μA /4000μA/40mA/400mA/4A/10A |
| Accuracy | ±(1%+8) | |
| AC current | Range | 400μA /4000μA/40mA/400mA/4A/10A |
| Accuracy | ±(1,5%+8) | |
| Resistance | Range | 400Ω/ 4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
| Accuracy | ±(1%+5) | |
| Capacitance | Range | 40nF/400nF/4μF/40μF/100μF |
| Accuracy | ±(3%+8) | |
| Frequency | Range | 10Hz~10MHz |
| Accuracy | ±(0.1%+3) | |
| Input Sensitivity | 20mV/div-500V/div (1-2-5) | |
| Bandwidth | 8MHz | |
| Vertical accuracy | (5%+1) | |
| Horizontal accuracy | (0.01%+1) | |
| Sample Rate | 40MSa/s | |
| Power | 6 × 1.5V Battery (R6) | |
| Dimensions (H × W × D), mm | 200 × 100 × 48 | |
| Weight, g | 498 | |

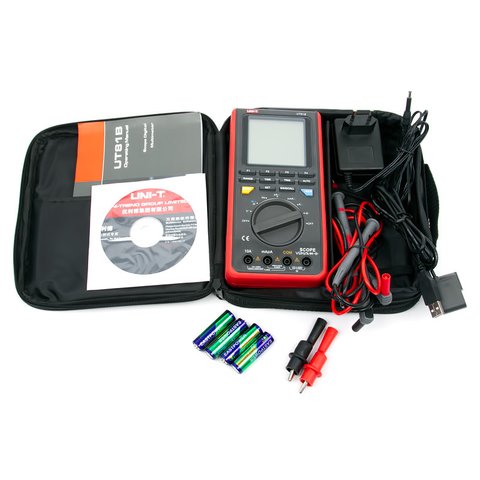

Package Contents
- Digital Scope multimeter UT81B
- Test lead

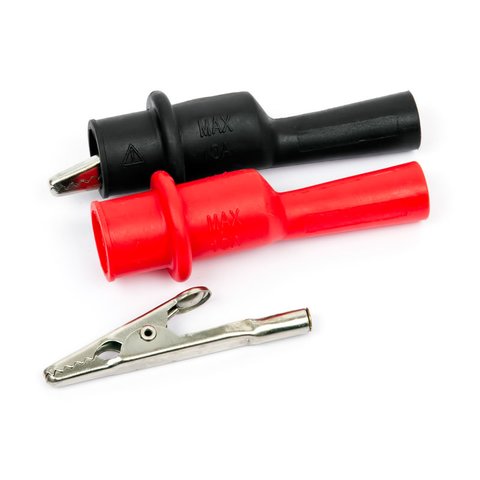

- Alligator clip

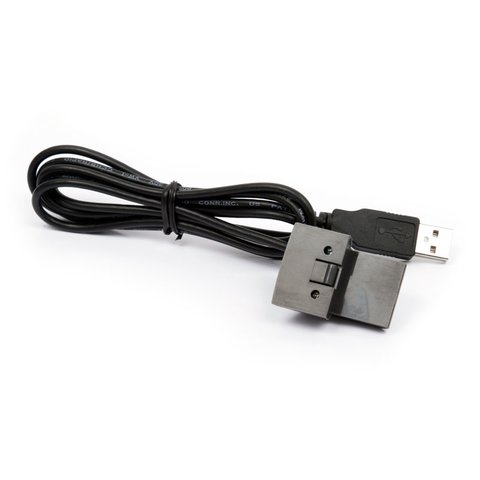

- USB interface cable
- CD with software

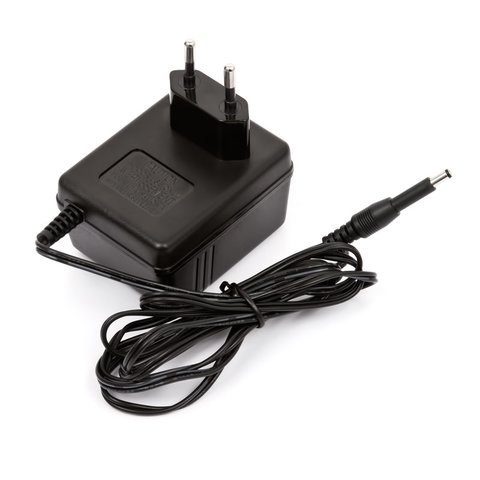

- Power adapter
- Batteries
- User manual
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
